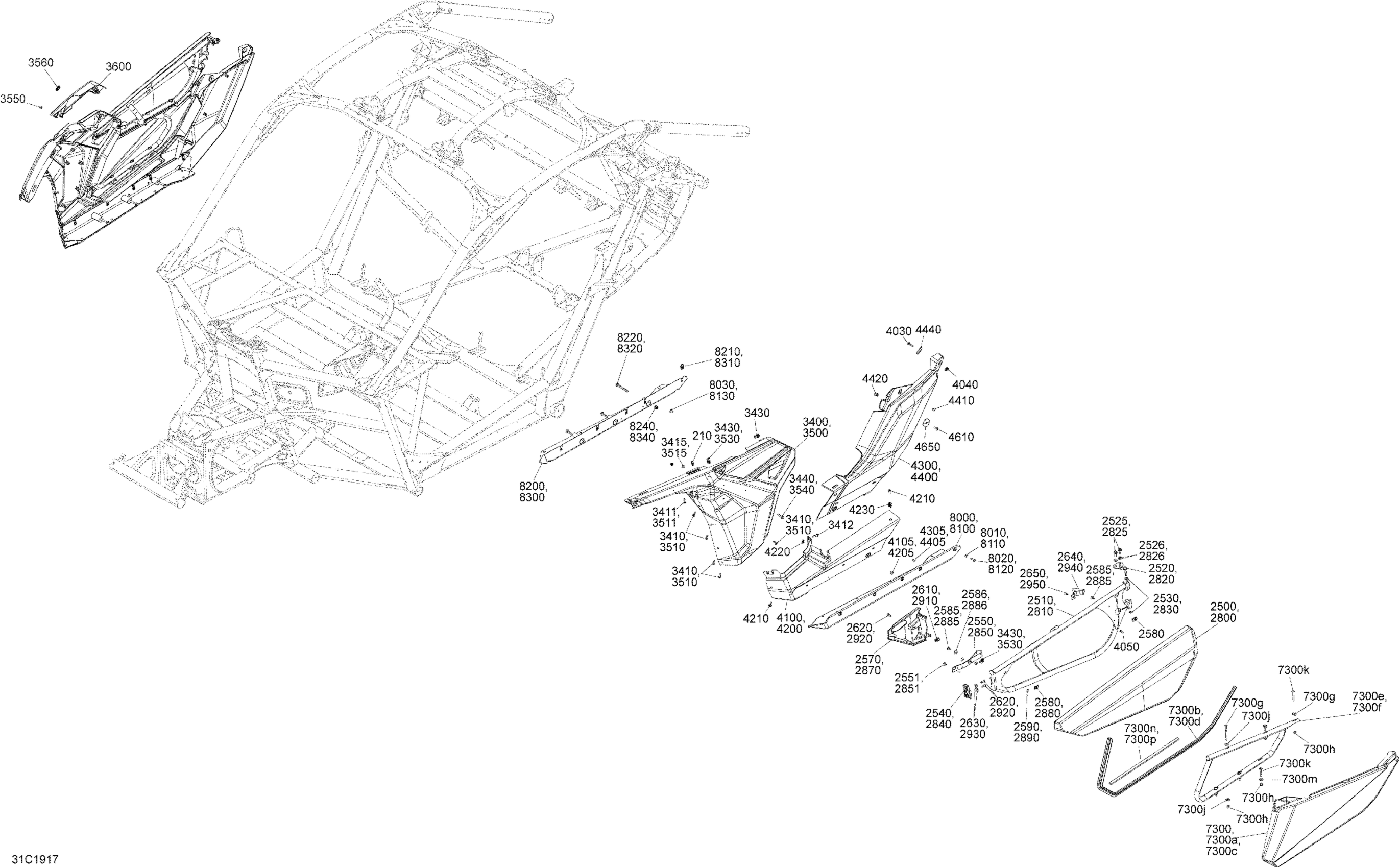

Can-Am Maverick Turbo R - 2019 Body - Side Section - Carbon Black Diagram

#

Description
Price

210

Clip

705010721

$2.03

2500

Carbon Black, LH Front Door Panel

705014333

$182.06

2510

Door Fl B-352 Painted | Blue Cage Model

705017350

$225.34

2520

Door Support

705011187

$10.55

2525

Hex Screw Washer Head M8 X 20

207582054

$3.00

2526

Flat Washer M8

234081430

$2.00

2530

Flat Washer 8 mm, Nylon

234081100

$1.15

2540

LH Latch

705013095

$53.70

2550

Belt

293850135

$13.45

2551

Pop Rivet 3/16"

293150103

$0.52

2552

Bushing | DS 650 X

293900104

$5.10

2570

LH Latch Cover

705013535

$35.79

2580

Panel Nut M6 X 1.0

250100198

$1.99

2585

Torx Truss Screw M6 X 16

250000721

$1.60

2586

Stainless Steel Flat Washer

234062670

$2.00

2590

Pop Rivet 3/16"

293150103

$0.52

2610

Panel Nut M6 X 1.0

250100198

$1.99

2620

Torx Screw M6 X 20

250000722

$1.54

2630

Flat Washer

224061121

$0.51

2640

Door Belt

293850129

$14.61

2650

Pop Rivet 3/16"

293150103

$0.52

2800

Carbon Black, RH Front Door Panel

705014339

$182.06

2810

Blue Door Frame RH | Blue Cage Model

705012548

$136.54

2820

Door Support

705011187

$10.55

2825

Hex Screw Washer Head M8 X 20

207582054

$3.00

2826

Flat Washer M8

234081430

$2.00

2830

Flat Washer 8 mm, Nylon

234081100

$1.15

2840

RH Latch

705013096

$53.70

2850

Belt

293850135

$13.45

2851

Pop Rivet 3/16"

293150103

$0.52

2852

Bushing | DS 650 X

293900104

$5.10

2870

RH Latch Cover

705013536

$35.79

2880

Panel Nut M6 X 1.0

250100198

$1.99

2885

Torx Truss Screw M6 X 16

250000721

$1.60

2886

Stainless Steel Flat Washer

234062670

$2.00

2890

Pop Rivet 3/16"

293150103

$0.52

2910

Panel Nut M6 X 1.0

250100198

$1.99

2920

Torx Screw M6 X 20

250000722

$1.54

2930

Flat Washer

224061121

$0.51

2940

Door Belt

293850129

$14.61

2950

Pop Rivet 3/16"

293150103

$0.52

3400

Black, LH Front Lateral Panel Kit

715006594

$108.93

3410

Torx Screw M6 X 20

250000722

$1.54

3411

Torx Screw M6 X 20

250000712

$2.00

3412

Torx Truss Screw M6 X 25

250000807

$2.00

3415

Hex. Flange Elastic Nut M6

233261494

$1.45

3430

Panel Nut M6 X 1.0

250100198

$1.99

3440

Torx Truss M6 X 50

250000868

$2.00

3500

RH Front Lateral Panel Kit

715004074

$94.00

3510

Torx Screw M6 X 20

250000722

$1.54

3511

Torx Screw M6 X 20

250000712

$2.00

3515

Hex. Flange Elastic Nut M6

233261494

$1.45

3530

Panel Nut M6 X 1.0

250100198

$1.99

3540

Torx Truss M6 X 50

250000868

$2.00

3550

Hex. Flange Elastic Nut M6

233261494

$1.45

3560

Grommet

517303756

$3.61

3600

Lateral Cover

705017564

$39.52

4030

Torx Truss Screw M6 X 25

250000807

$2.00

4040

Panel Nut M6 X 1.0

250100198

$1.99

4050

Torx Screw K50 X 16

250000720

$1.60

4100

LH Central Lateral Panel

705012768

$65.64

4105

Pop Rivet 3/16"

293150103

$0.52

4200

Deep Black, RH Lower Body Panel

705017549

$59.67

4205

Pop Rivet 3/16"

293150103

$0.52

4210

Torx Screw M6 X 20

250000722

$1.54

4220

Panel Nut M6 X 1.0

250100198

$1.99

4230

Insert

705016606

$2.06

4300

LH Rear Lateral Panel

705012770

$103.70

4305

Pop Rivet 3/16"

293150103

$0.52

4400

RH Rear Lateral Panel

705012771

$103.70

4405

Pop Rivet 3/16"

293150103

$0.52

4410

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

4420

Panel Nut M6 X 1.0

250100198

$1.99

4440

Support Plate

705003841

$0.91

4610

Torx Screw M6 X 20

250000722

$1.54

4650

Support Plate

705003841

$0.91

7300a

LH Door Panels

705010271

$102.21

7300b

Door Seal

705012018

$17.88

7300c

RH Door Panels

705010272

$101.46

7300d

Door Seal

705012018

$17.88

7300e

Black, LH Door Frame

705012750

$116.39

7300f

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$116.39

7300g

Torx-Truss M/S M6 X 80

250000902

$2.52

7300h

Hex. Flange Elastic Nut M6

233261494

$1.45

7300j

Offset Washer

705202223

$4.09

7300k

Torx Truss Screw M6 X 50

250000749

$3.01

7300m

Stainless Steel Flat Washer

234062670

$2.00

7300n

Neoprene Seal (1PAC=3M)

219704364

$26.09

7300p

Neoprene Seal (1PAC=3M)

219704364

$26.09

8000

LH Lateral Panel

705012772

$107.43

8010

Flat washer M6

250200164

$0.96

8020

Torx Truss Screw M6 X 25

250000807

$2.00

8030

Pop Rivet 3/16”

293150108

$1.19

8100

RH Lateral Panel

705012773

$107.43

8110

Flat washer M6

250200164

$0.96

8120

Torx Truss Screw M6 X 25

250000807

$2.00

8130

Pop Rivet 3/16”

293150108

$1.19

8200

LH Lateral Structure

705012774

$202.96

8210

Panel Nut M6 X 1.0

250100198

$1.99

8220

Hex. Flange Screw M8 X 70

207687044

$7.01

8230

Saddle Washer

705205462

$5.03

8240

Elastic Flange Nut M8

233281464

$0.96

8300

RH Lateral Structure

705012775

$202.96

8310

Panel Nut M6 X 1.0

250100198

$1.99

8320

Hex. Flange Screw M8 X 70

207687044

$7.01

8330

Saddle Washer

705205462

$5.03

8340

Elastic Flange Nut M8

233281464

$0.96
