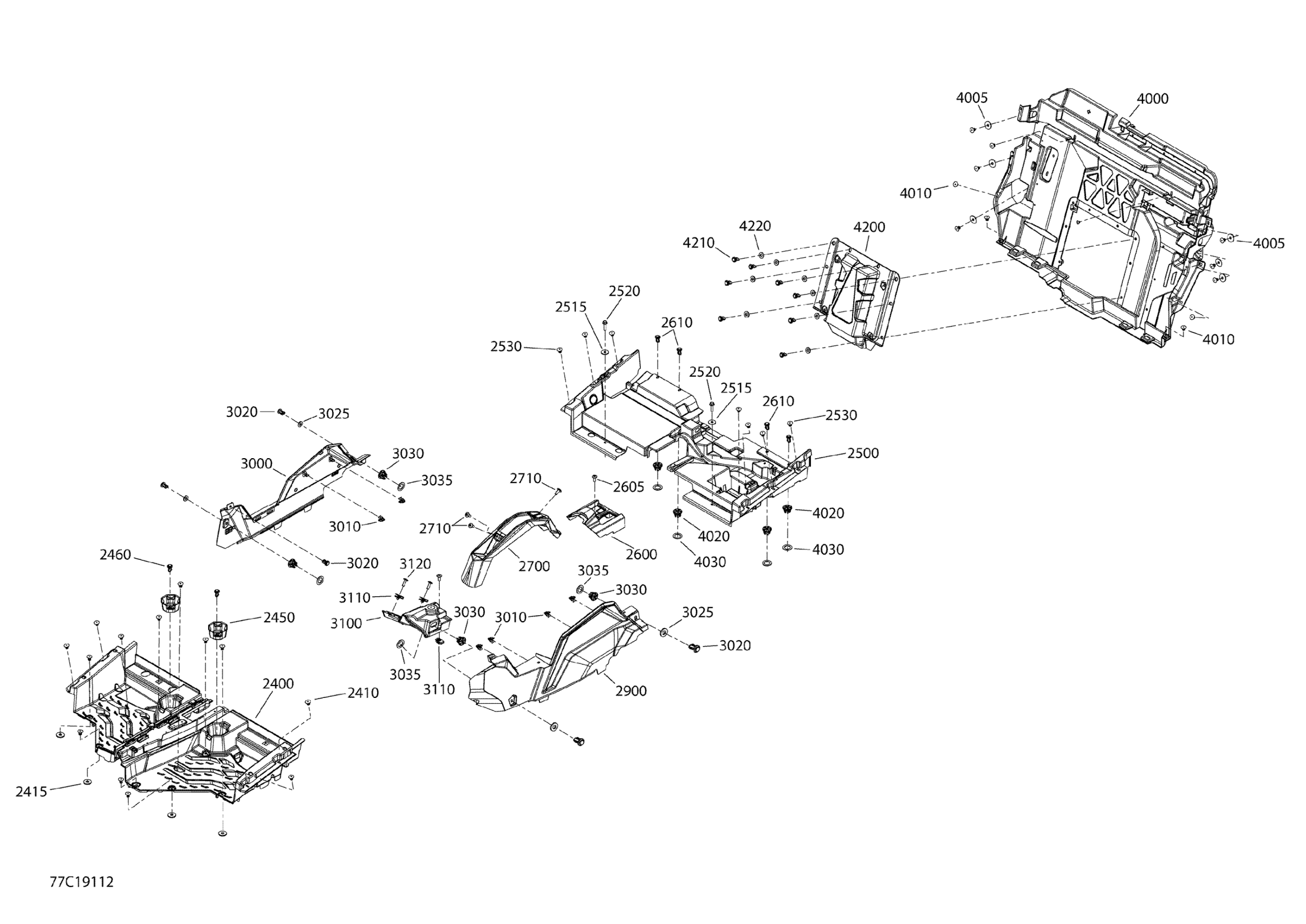

Can-Am Maverick Trail 1000 - DPS - T2B Series, 2019 Cab - Rear Section Diagram

Description

Price

2400

Front Floor

707900533

$184.58

2410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2415

Washer M5

250200025

$0.61

2450

Cup Holder

707900532

$8.46

2460

Tuflok Plastic Rivet

293150230

$1.21

2500

Rear Floor

707900534

$78.43

2515

Flat Washer M6.6 X 22

250200162

$1.91

2520

Hex. Flange Screw M6 X 25

207662554

$1.48

2530

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2600

Belt Cover

707900538

$32.28

2605

Torx Truss Screw M6 X 16

250000721

$1.39

2610

Tuflok Plastic Rivet

293150230

$1.21

2700

Central Console

707900537

$27.66

2710

Torx Truss Screw M6 X 16

250000721

$1.39

2900

LH Lateral Console Panel

715005013

$115.35

3000

RH Lateral Console Panel

707901077

$69.20

3010

Clip

517306478

$1.37

3020

Tuflok Plastic Rivet

293150230

$1.21

3025

Washer

503192494

$3.11

3030

Insert

707900133

$2.75

3035

Washer

503189273

$3.20

3100

Passenger Footrest

707900545

$41.51

3110

Panel Nut M6 X 1.0

250100198

$1.73

3120

Torx Screw M6 X 20

250000722

$1.34

4000

Rear Bulkhead

707900550

$133.82

4005

Flat Washer M6 X 25

250200044

$2.31

4010

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4020

Insert

707900133

$2.75

4030

Washer

503189273

$3.20

4200

Maintenance Cover

707900999

$36.89

4210

Tuflok Plastic Rivet

293150230

$1.21

4220

Washer

503192494

$3.11

5000

Panel Nut M5 X 0.8

250000958

$3.48

5010

Torx Screw M5 X 20

250000724

$1.39
