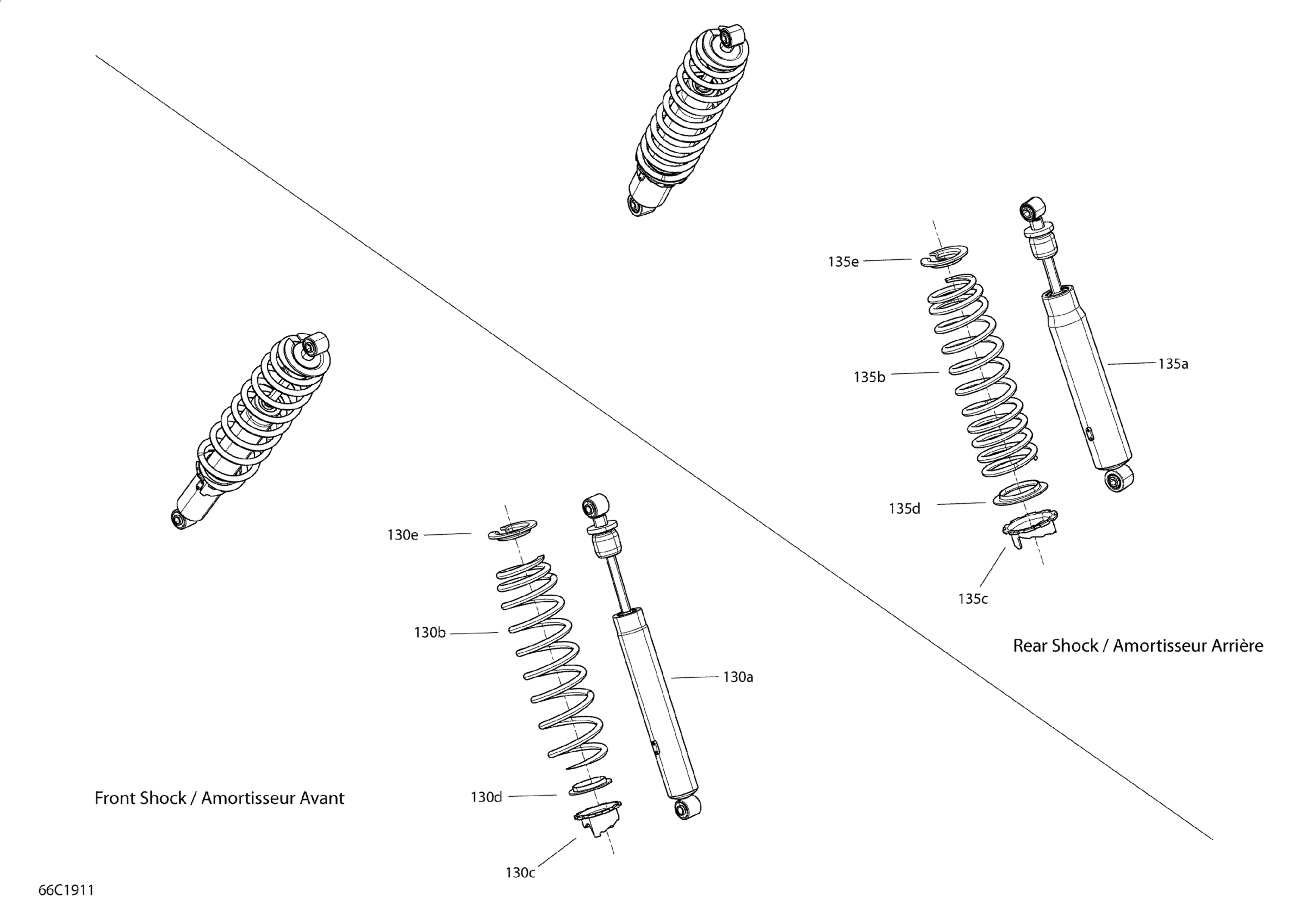

Can-Am Maverick Trail 1000 - DPS - T2B Series, 2019 Shocks - Package DPS Diagram

Description

Price

130a

Front Shock

706202835

$195.99

130b

Deep Black, Compression Spring

706205394

$142.99

130b

Can-Am Red Front Spring | Red Model

706203173

$126.99

130b

PAINT FRONT SPRING - Call your local BRP dealership | Yellow Model

706203172

Unavailable

130c

Adjustment Ring

706000910

$16.49

130d

Protector Ring | STD, XT

706000911

$13.99

130e

Spring Cup

706001894

$15.49

135a

Rear Shock

706002719

$158.99

135b

Black Rear Spring

706002720

$132.49

135b

Can-Am Red Rear Spring | Red Model

706003007

$126.99

135b

Sunburst Yellow Rear Spring | Yellow Model

706003008

$126.99

135c

Adjustment Ring

706000910

$16.49

135d

Protector Ring | STD, XT

706000911

$13.99

135e

Spring Cup

706001894

$15.49
