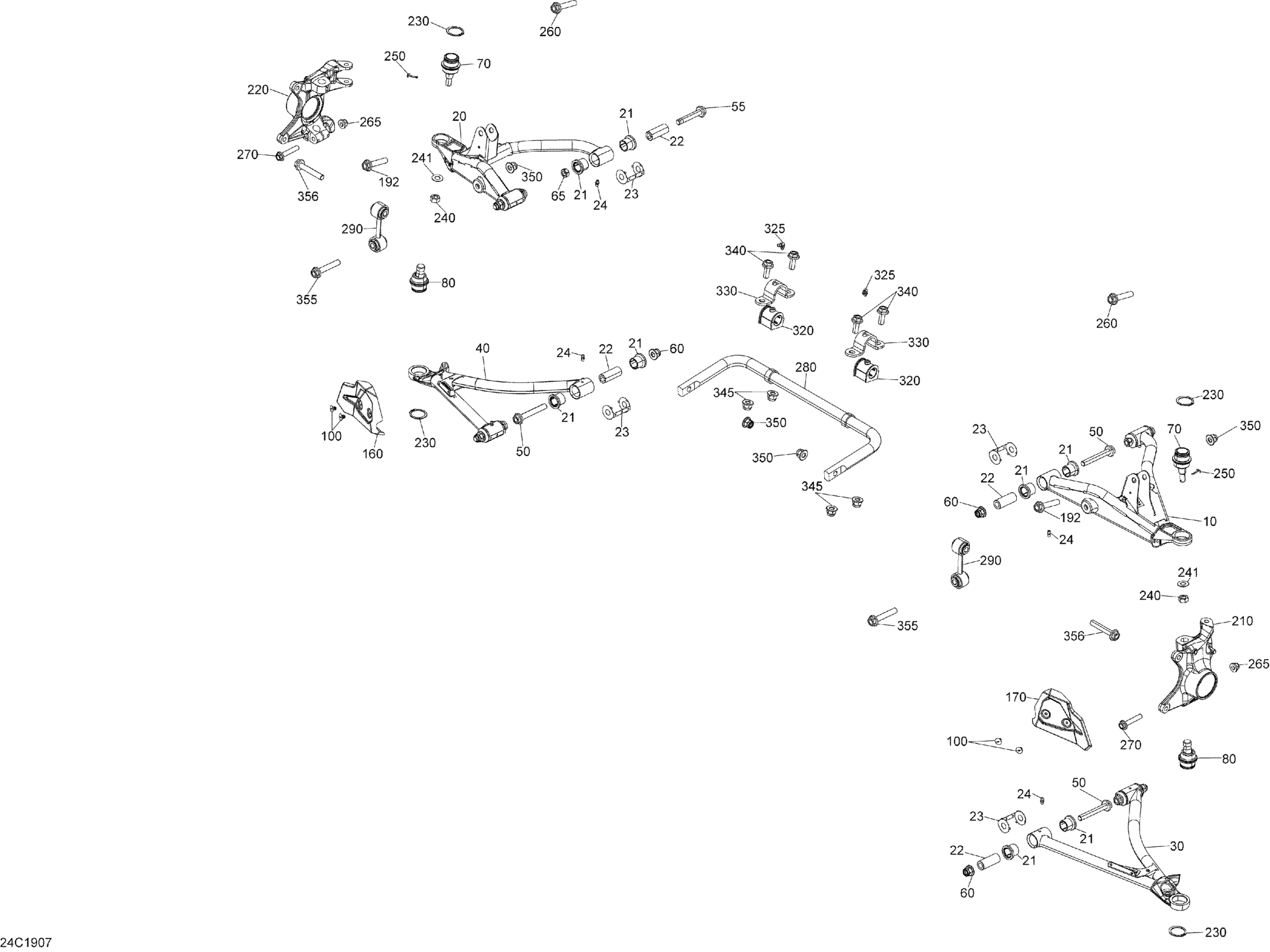

Can-Am Maverick Trail 1000 - DPS - T2B Series, 2019 Front Suspension Diagram

#

Description
Price

10

Black, LH Upper Front Suspension Arm

706202810

$216.89

20

Black, RH Upper Front Suspension Arm

706202811

$216.89

21

Suspension Arm Bushing

706204409

$8.29

22

Interior Bushing

706202257

$9.22

23

Wear Plate

706202300

$2.31

24

Grease Fitting

408200700

$2.80

30

Black, LH Lower Front Suspension Arm

706202824

$216.89

40

Black, RH Lower Front Suspension Arm

706202825

$216.89

50

Flange Screw M12 X 85

250000859

$3.95

55

Hex. Flange Screw M12x1.75

250000985

$6.48

60

Elastic Flange Nut M12

233221466

$2.15

65

Hex. Nut M12

250100204

$8.78

70

Ball Joint

706203084

$35.35

80

Ball Joint

706202045

$35.35

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

160

RH CV joint Guard

706202135

$9.23

170

LH CV joint Guard

706202134

$9.23

192

Flange Screw M12 X 60

250000857

$6.08

210

LH Front Knuckle

706202842

$207.66

220

RH Front Knuckle

706202844

$207.66

230

Circlip

293370035

$2.55

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

260

Flange Screw M12 X 60

250000857

$6.08

265

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Hex. Flange Screw M10 X 55

207605546

$1.74

280

Sway Bar Ass'y

706202846

$96.89

290

Sway Bar Double Link

706202937

$110.74

320

Stabilizer Bar Bushing

706204414

$9.22

325

Grease Fitting 90°

293550056

$1.37

330

Clamp

706203437

$13.83

340

Hex. Flange Screw DIN.6921

250000951

$5.47

345

Elastic Flange Nut M12

233221466

$2.15

350

Elastic Flange Nut M12

233221466

$2.15

355

Hex. Flange Screw M12 X 70

250000858

$3.11

356

Flange Screw M12 X 60

250000857

$6.08

1000

Elastic Flange Nut M12

233221466

$2.15
