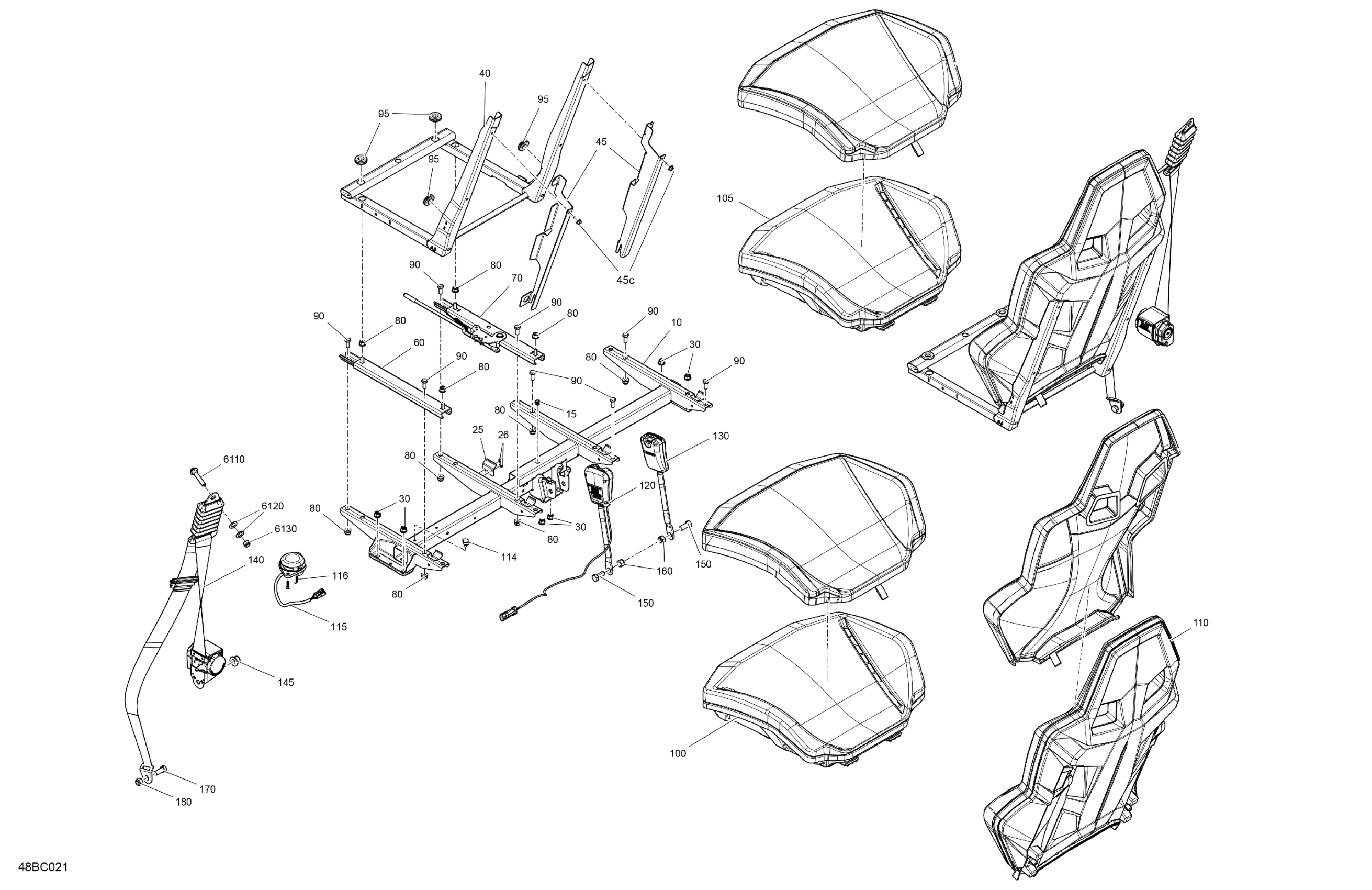

Can-Am Maverick Trail 1000 - DPS - T Regulation, 2023 Body - Seat Diagram

#

Description
Price

10

Seat Member

708003469

$129.99

15

Insert Half Hex Body M6 x 1.0

250100199

$2.54

25

Seat Stopper

708003672

$2.75

26

Pop Rivet 3/16"

390402200

$0.26

30

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Seat Frame

708002423

$313.82

45

Seat Support Kit | Includes 45 to 45c

708002945

$189.20

45c

Hex. Flange Screw M6 X 16

207661654

$1.74

60

LH Seat Rail

708003314

$50.74

70

RH Slide

708003316

$32.28

80

Hex. Flange Elastic Nut M8

233281414

$1.14

90

Hex. Screw M8 X 20

207182044

$0.61

95

Grommet

517303756

$3.15

100

Cushion Ass'y

708002847

$235.35

105

Cushion Ass'y

708002847

$235.35

110

Backrest Ass'y

708002859

$332.28

114

Tie Rap Mount (screwable)

515176795

$5.11

115

Passenger Detection Switch

710008103

$72.28

116

Torx Screw Truss Head K50X20 T20

250000760

$1.74

120

Driver Buckle

708002331

$69.20

130

Passenger Buckle

708002329

$64.58

140

Safety Belt

708003378

$230.74

145

Elastic Flange Nut M12

233221416

$2.33

150

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

160

Lock Nut Nylon 7/16

250100183

$1.64

170

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

180

Lock Nut Nylon 7/16

250100183

$1.64

6110

Safet Belt Screw

708002443

$16.89

6120

Position Washer

708000891

$1.15

6130

Lock Nut Nylon 7/16

250100183

$1.64
