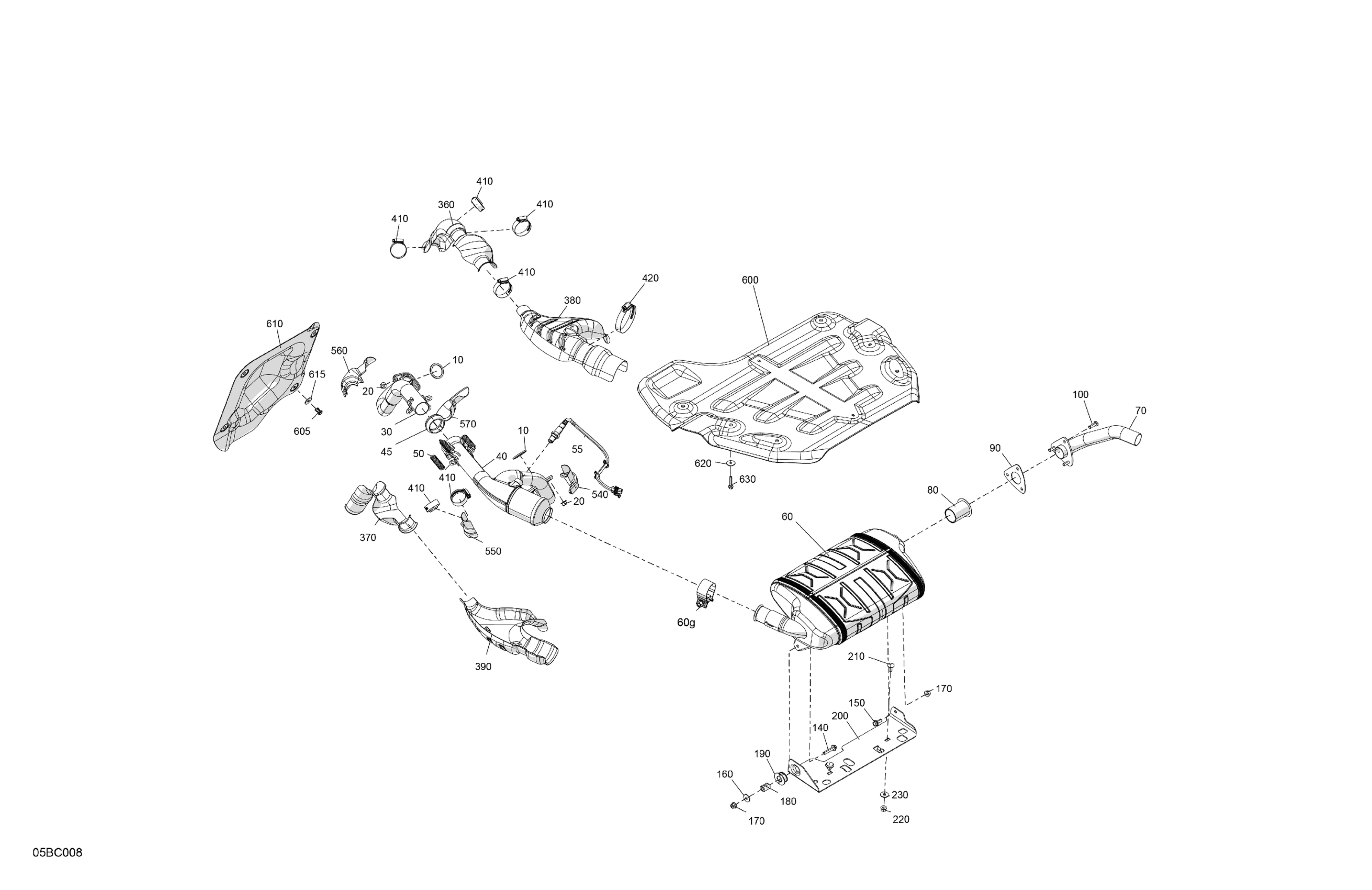

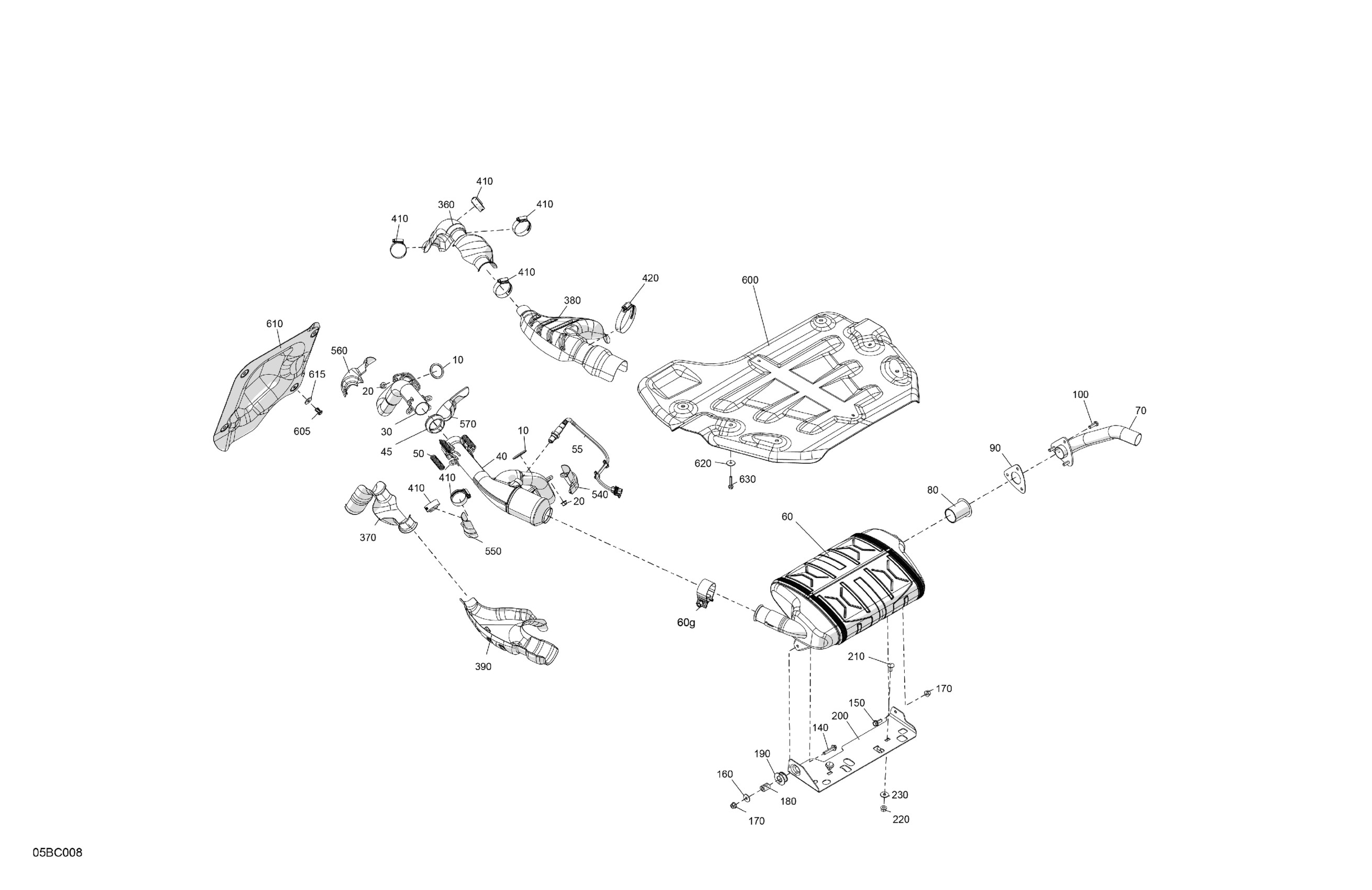

Can-Am Maverick Trail 1000 - DPS - T Regulation, 2023 Engine - Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$10.52

20

Hex. Flange Nut

233081436

$1.63

30

Front Exhaust Pipe

707602039

$166.12

40

Rear Exhaust Pipe

707603331

$572.28

45

Exhaust Gasket

707601033

$13.29

50

Spring

707601834

$6.20

55

Oxygen Sensor

707600872

$115.67

60

Exhaust Muffle Ass'y | Includes 60 to 60a

707603289

$812.28

60g

Exhaust Pipe Clamp

293650228

$11.98

70

Pipe Exhaust Out

707602798

$87.66

80

Spark Arrestor

707601803

$50.74

90

Gasket

707602731

$10.98

100

Hex. Screw Cap DIN.933

207182546

$0.83

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

160

Flat Washer 8 mm

234082410

$1.11

170

Hex. Flange Nut

233081436

$1.63

180

Spacer

707601969

$15.35

190

Rubber Mount

707602102

$7.60

200

Muffler Support

707601588

$32.28

210

Carriage Bolt, M8 X 20

207782044

$1.56

220

Hex. Flange Nut

233081436

$1.63

230

Flat Washer 8 mm

234082410

$1.11

360

Front Heat Shield

707602666

$64.58

370

Rear Heat Shield

707602667

$50.74

380

Upper Heat Shield

707602668

$83.05

390

Lower Heat Shield

707602669

$64.58

410

Murray Gear Clamp

293650305

$12.91

420

Tridon Gear Clamp

293650250

$13.83

540

Upper Rear Heat Shield

707602670

$50.74

550

Lower Rear Heat Shield

707602671

$50.74

560

Front Upper Heat Shield

707602672

$50.74

570

Lower Front Heat Shield

707602673

$50.74

600

Heat Shield

707603178

$106.12

605

Tuflok Plastic Rivet

293150230

$1.21

610

Heat Shield

707602043

$50.74

615

Flat Washer 8 mm

234082410

$1.11

620

Washer

224060251

$0.57

630

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74
