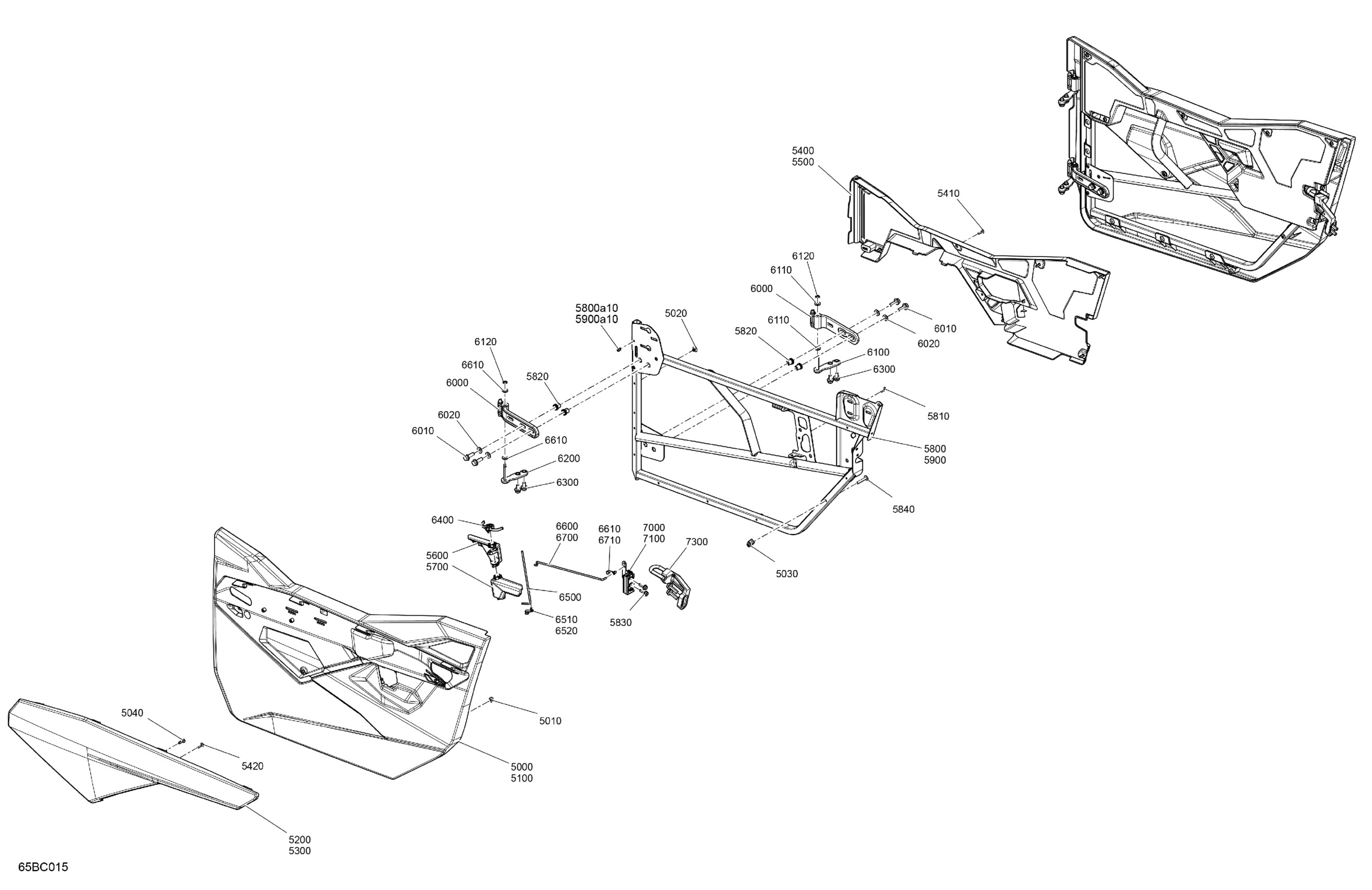

Can-Am Maverick Trail 1000 - DPS - 2023 Enclosure Cab - Doors Diagram

#

Description
Price

5000

LH Exterior Door Panel

705011479

$102.21

5010

Rubber Bumper

293830005

$5.33

5020

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

5030

Panel Nut M6 X 1.0

250100198

$1.73

5040

Torx Screw K50 X 16

250000720

$1.39

5100

RH Exterior Door Panel

705011480

$102.21

5200

Break Up Country, LH Front Door Panel | Model Break Up Country

705015605

$170.12

5200

Timeless Black, LH Front Door Panel

705015607

$167.13

5200

Oxford Blue, LH Front Door Panel | Model Oxford Blue Metallic

705017317

$178.33

5300

Break Up Country, RH Front Door Panel | Model Break Up Country

705015612

$191.76

5300

Timeless Black, RH Front Door Panel

705015613

$244.99

5300

Oxford Blue, RH Front Door Panel | Model Oxford Blue Metallic

705017318

$178.33

5400

LH Front Door Trim Ass'y

715008540

$98.48

5410

Torx Screw K50 X 16

250000720

$1.39

5420

Torx Screw K50 X 16

250000720

$1.39

5500

RH Front Door Trim Ass'y

715008541

$98.48

5600

LH Opening Handle

705011585

$15.64

5700

RH Opening Handle

705011586

$15.64

5800

LH Door Frame | Includes 5800 to 5800a10

705800303

$136.54

5800a10

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

5810

Torx Screw K50 X 16

250000720

$1.39

5820

Insert Half Hex Body M8 x 1.25

293450307

$1.97

5830

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

5840

Torx Screw M6 X 35

250000541

$1.74

5900

RH Door Frame | Includes 5900 to 5900a10

705800304

$136.54

5900a10

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

6000

Hinge

705013228

$23.85

6010

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

6020

Washer

503192494

$3.01

6100

Lower Hinge Ajustement

705011629

$11.51

6110

Flat Washer 8 mm, Nylon

234081100

$1.00

6120

Circlip | RS STD

705601030

$4.00

6200

Upper Hinge Ajustement

705012506

$11.51

6300

Hex. Flange Screw DIN.6921 S.Grip

250001033

$0.95

6400

Handle Spring

705011630

$9.48

6500

Handle Axle

705206132

$10.55

6510

RH Tie Rod Clip

708300202

$2.13

6520

LH Tie Rod Clip

708300182

$2.13

6600

LH Locking Rod

705206133

$3.81

6610

RH Tie Rod Clip

708300202

$2.13

6700

RH Locking Rod

705206134

$3.81

6710

LH Tie Rod Clip

708300182

$2.13

7000

LH Latch

705013095

$53.70

7100

RH Latch

705013096

$53.70

7300

RH Stricker Support

705207028

$23.85
