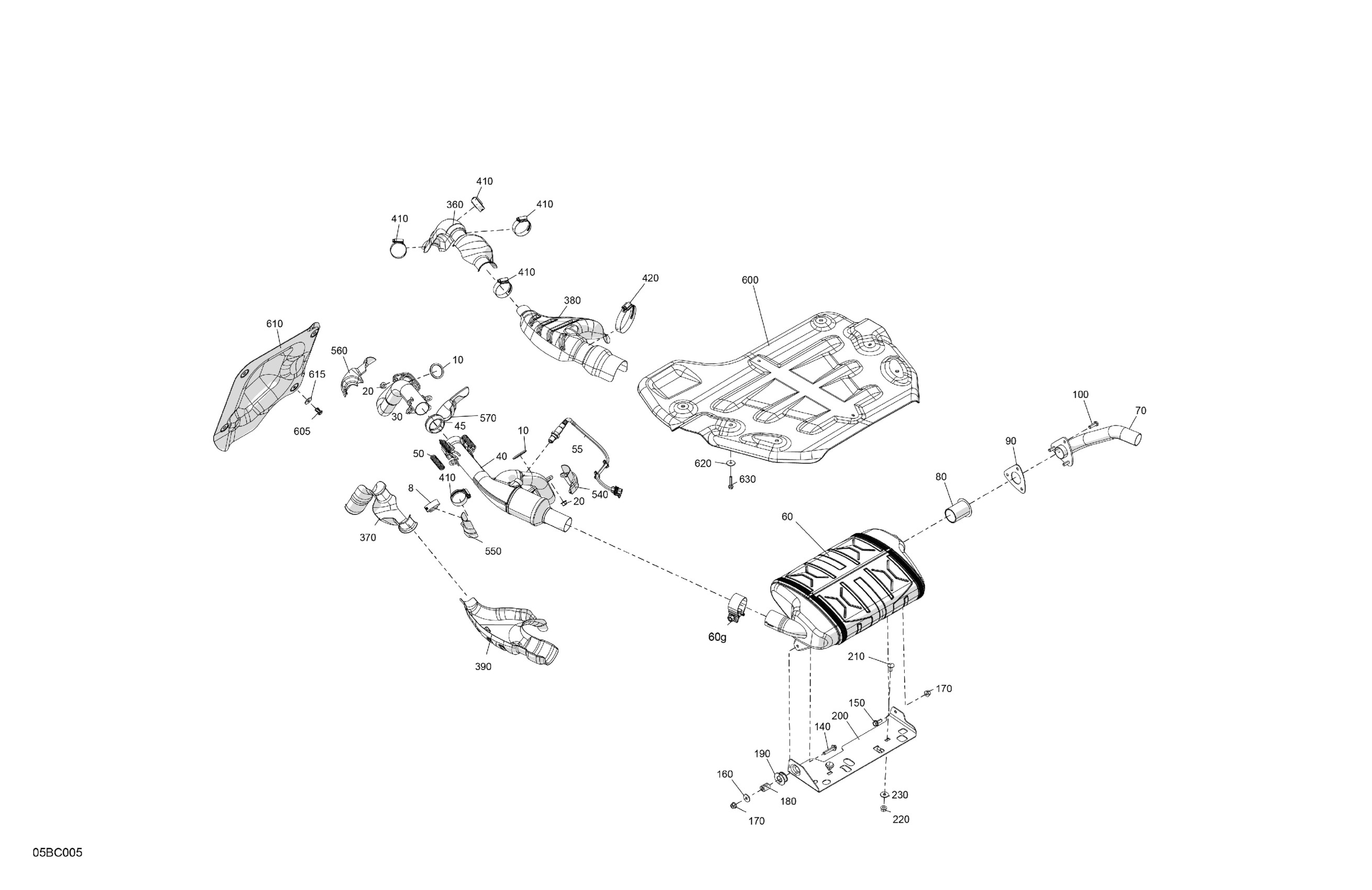

Can-Am Maverick Trail 1000 - DPS - 2023 Engine - Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$10.21

20

Hex. Flange Nut

233081436

$1.63

30

Front Exhaust Pipe

707602039

$159.67

40

Rear Exhaust Pipe

707603344

$303.70

45

Exhaust Gasket

707601033

$13.04

50

Spring

707601834

$6.01

55

Oxygen Sensor

707600872

$115.67

60

Exhaust Muffle Ass'y | Includes 60 to 60a

707603289

$773.10

60g

Exhaust Pipe Clamp

293650228

$11.06

70

Pipe Exhaust Out

707602798

$81.31

80

Spark Arrestor

707601803

$46.24

90

Gasket

707602731

$10.51

100

Hex. Screw Cap DIN.933

207182546

$0.83

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

160

Flat Washer 8 mm

234082410

$1.11

170

Hex. Flange Nut

233081436

$1.63

180

Spacer

707601969

$14.90

190

Rubber Mount

707602102

$6.73

200

Muffler Support

707601588

$27.58

210

Carriage Bolt, M8 X 20

207782044

$1.56

220

Hex. Flange Nut

233081436

$1.63

230

Flat Washer 8 mm

234082410

$1.11

360

Front Heat Shield

707602666

$61.16

370

Rear Heat Shield

707602667

$48.48

380

Upper Heat Shield

707602668

$76.84

390

Lower Heat Shield

707602669

$61.16

410

Murray Gear Clamp

293650305

$11.81

420

Tridon Gear Clamp

293650250

$13.39

540

Upper Rear Heat Shield

707602670

$48.48

550

Lower Rear Heat Shield

707602671

$48.48

560

Front Upper Heat Shield

707602672

$48.48

570

Lower Front Heat Shield

707602673

$48.48

600

Heat Shield

707603178

$99.97

605

Tuflok Plastic Rivet

293150230

$1.21

610

Heat Shield

707602043

$48.48

615

Flat Washer 8 mm

234082410

$1.11

620

Washer

224060251

$0.55

630

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74
