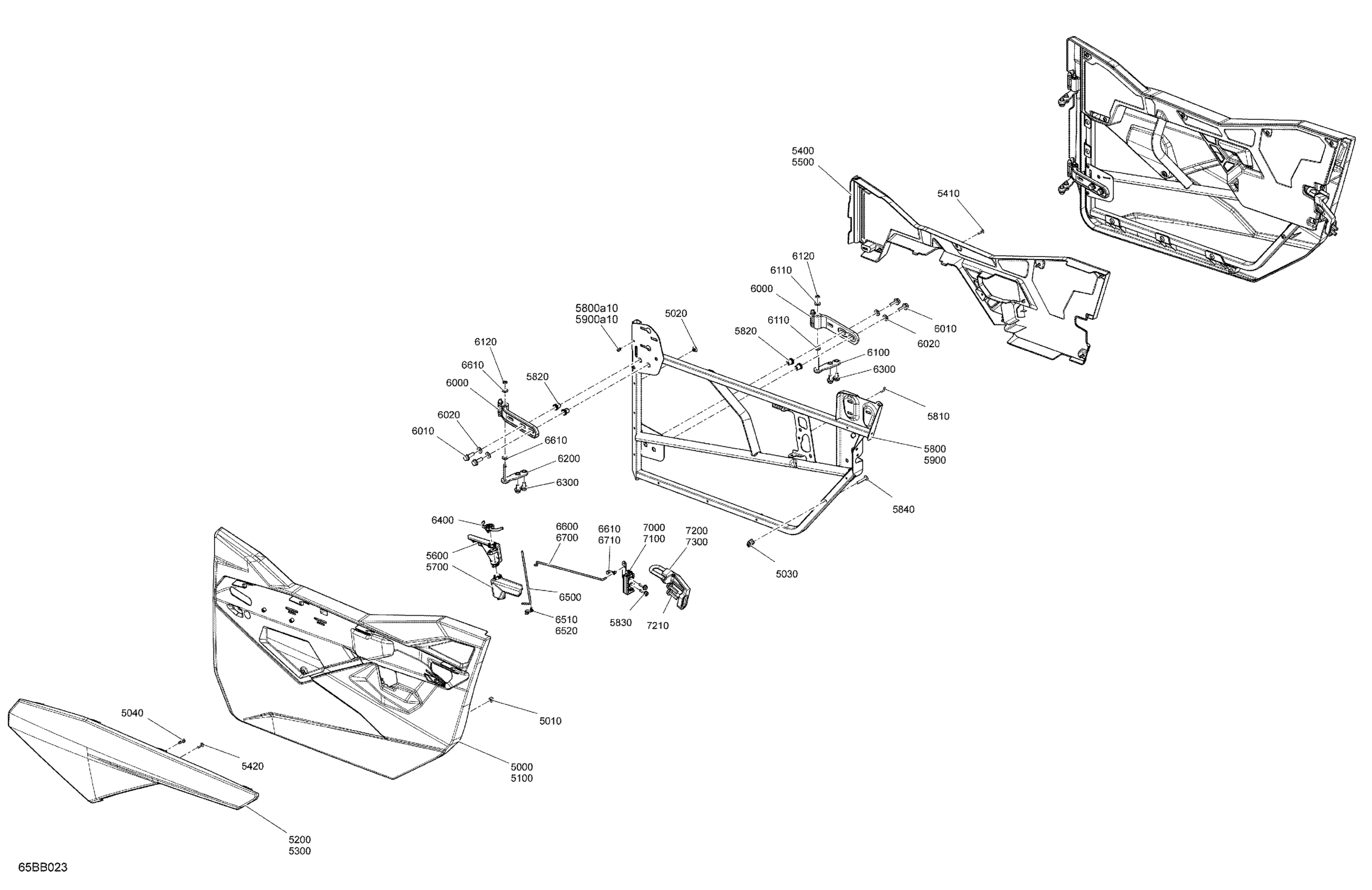

Can-Am Maverick Trail 1000 - DPS - 2022 Enclosure Cab - Doors Diagram

#

Description
Price

5000

LH Exterior Door Panel

705011479

$114.99

5010

Rubber Bumper

293830005

$8.09

5020

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

5030

Panel Nut M6 X 1.0

250100198

$2.11

5040

Torx Screw K50 X 16

250000720

$1.69

5100

RH Exterior Door Panel

705011480

$114.99

5200

Break Up Country, LH Front Door Panel | Model Break Up Country

705015605

$189.99

5200

Timeless Black, LH Front Door Panel

705015607

$189.99

5200

Gulfstream Blue, LH Front Door Panel | Model Gulfstream Blue

705016447

$244.99

5300

Break Up Country, RH Front Door Panel | Model Break Up Country

705015612

$214.99

5300

Timeless Black, RH Front Door Panel

705015613

$244.99

5300

Gulfstream Blue, RH Front Door Panel | Model Gulfstream Blue

705016449

$244.99

5400

LH Front Door Trim Ass'y

715008540

$109.99

5410

Torx Screw K50 X 16

250000720

$1.69

5420

Torx Screw K50 X 16

250000720

$1.69

5500

RH Front Door Trim Ass'y

715008541

$109.99

5600

LH Opening Handle

705011585

$18.99

5700

RH Opening Handle

705011586

$18.99

5800

LH Door Frame | Includes 5800 to 5800a10

705800303

$154.99

5800a10

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

5810

Torx Screw K50 X 16

250000720

$1.69

5820

Insert Half Hex Body M8 x 1.25

293450307

$2.69

5830

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

5840

Torx Screw M6 X 35

250000541

$2.11

5900

RH Door Frame | Includes 5900 to 5900a10

705800304

$154.99

5900a10

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

6000

Hinge

705013228

$26.99

6010

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

6020

Washer

503192494

$3.17

6100

Lower Hinge Ajustement

705011629

$15.49

6110

Flat Washer 8 mm, Nylon

234081100

$1.39

6120

Circlip | RS STD

705601030

$4.39

6200

Upper Hinge Ajustement

705012506

$15.49

6300

Hex. Flange Screw DIN.6921 S.Grip

250001033

$1.16

6400

Handle Spring

705011630

$11.49

6500

Handle Axle

705206132

$14.49

6510

RH Tie Rod Clip

708300202

$2.89

6520

LH Tie Rod Clip

708300182

$2.89

6600

LH Locking Rod

705206133

$3.89

6610

RH Tie Rod Clip

708300202

$2.89

6700

RH Locking Rod

705206134

$3.89

6710

LH Tie Rod Clip

708300182

$2.89

7000

LH Latch

705013095

$43.99

7100

RH Latch

705013096

$43.99

7200

LH Stricker Support

705207027

$26.99

7210

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

7300

RH Stricker Support

705207028

$26.99
