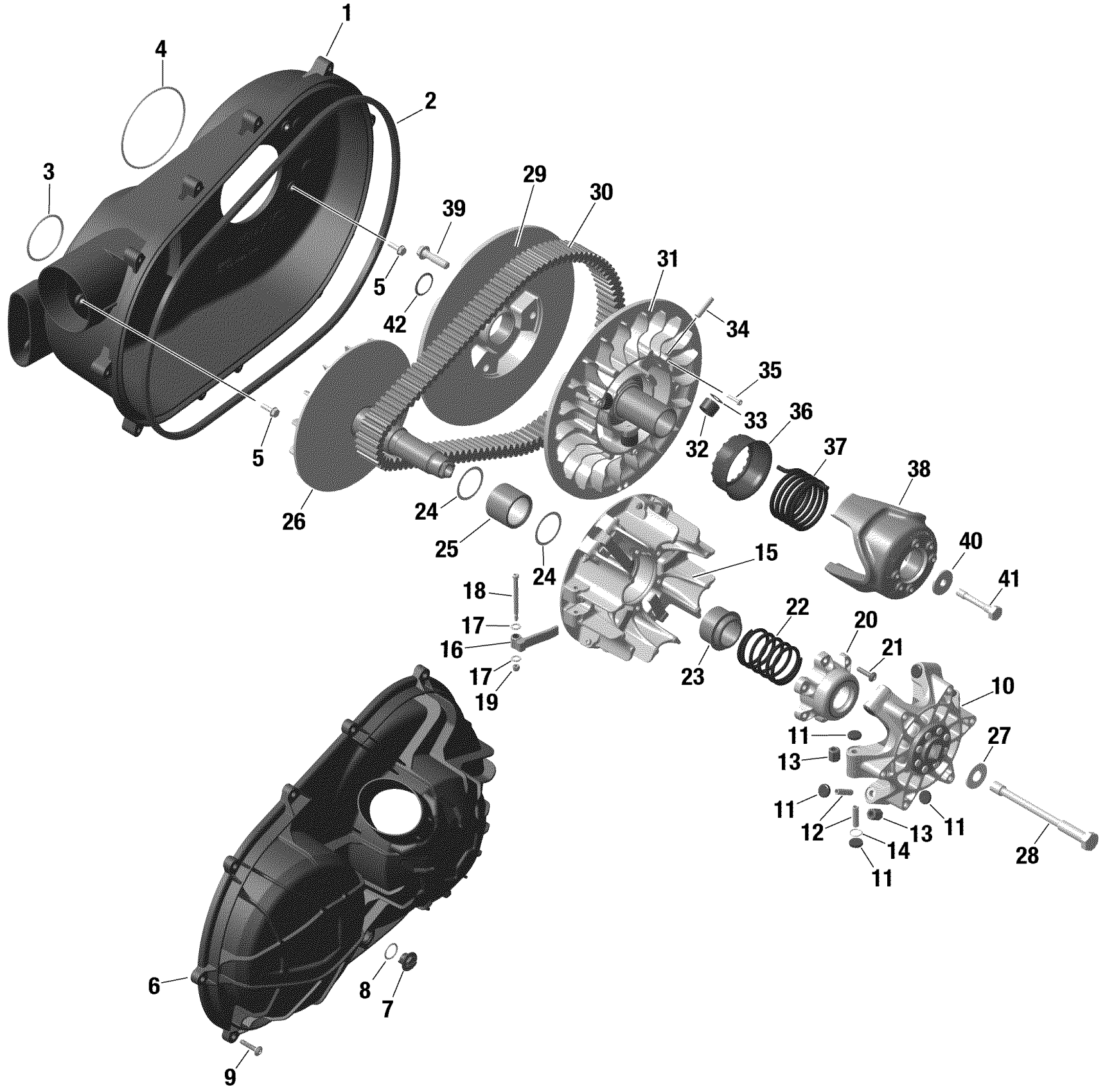

Can-Am Maverick Sport 1000R - DPS - 2020 Transmission - 609-607-608 Diagram

#

Description
Price

1

CVT Air Guide

420212604

$224.99

2

Gasket

420450400

$31.99

3

O-Ring

420430408

$5.29

4

O-Ring

420450431

$5.29

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212503

$184.99

7

Cap

420441820

$11.63

8

O-Ring

420250052

$10.43

9

Torx Screw 6X30

420441575

$3.06

10

Governor Cup Ass'y

420280727

$439.99

11

Slider Shoe Set

420281296

$65.49

12

Roller Axle

417223257

$6.99

13

Roller Thrust

420229991

$19.99

14

O-Ring

420230456

$2.09

15

Outer Half Ass'y

420280608

$296.99

16

Lever Set | Includes 18 to 21

420248663

$439.99

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Bearing Cover

420280616

$69.99

21

Torx Flange Screw M6 X 25

420841549

$2.00

22

Compression Spring

420638119

$35.99

23

Spring Retainer

420427211

$46.49

24

Washer

420427220

$4.86

25

Needle Roller Bearing With Sleeves

420832351

$49.99

26

Inner Half Ass'y

420280597

$328.49

27

Washer

420245690

$4.86

28

Hexagonal Screw M14X 165

420841161

$29.49

29

Sliding Pulley Ass'y

420280636

$349.99

30

Drive Belt

417300551

$179.99

31

Outer Half Pulley Ass'y

420280626

$349.99

32

Pulley Roller

417127016

$24.49

33

Lock Washer 8 mm

250200009

$2.11

34

Pivot Stud

417127294

$14.49

35

Torx Screw M4 X 20

420841531

$2.09

36

Swivel Abutment

417127116

$9.39

37

Compression Spring

420638124

$37.99

38

Cam

420280755

$137.99

39

Torx Flange Screw M10 X 40

420841711

$2.09

40

Collar Washer

420427243

$16.40

41

Hexagonal Screw M10X 61

420441990

$19.49
