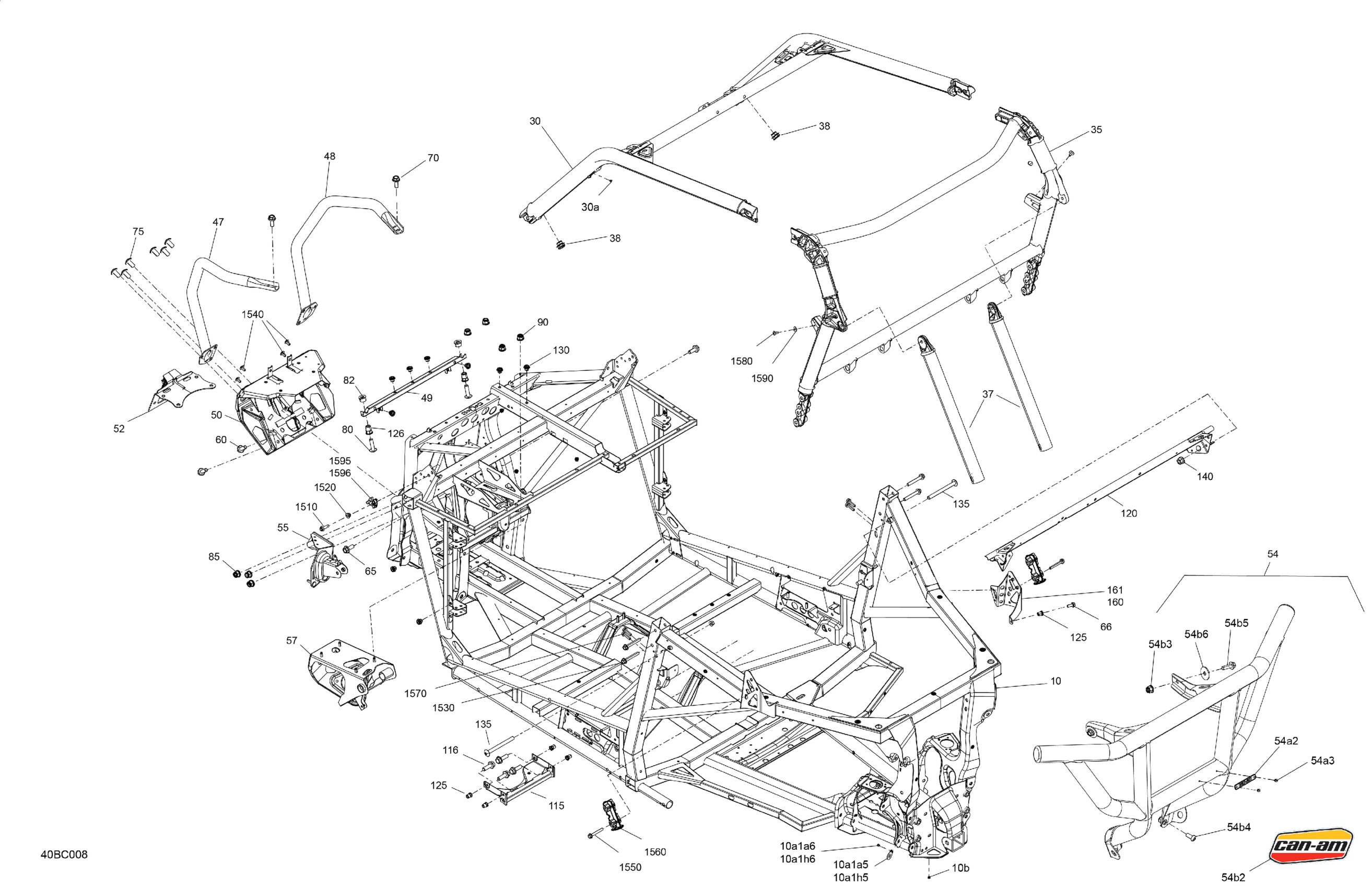

Can-Am Maverick Sport 1000R - XRC - 2023 Frame - System Diagram

#

Description
Price

10

Chassis Kit | Includes 10 to 10a2w3

715009394

$2,969.99

10a1a5

Shim

705209479

$2.96

10a1a6

Pop Rivet 3/16"

390402200

$0.26

10a1h5

Shim

705209479

$2.96

10a1h6

Pop Rivet 3/16"

390402200

$0.26

10b

Pop Rivet 3/16"

390402200

$0.26

30

Macchiato, Front Cage Kit | Includes 30 to 30a

715009400

$619.99

30a

Pop Rivet 3/16"

390402200

$0.26

35

Macchiato, Rear Cage Kit

715009402

$619.99

37

Macchiato Satin, Rear Cage Extension

705211127

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$2.54

47

Macchiato, LH Front Bumper

705210790

$107.43

48

Macchiato, RH Front Bumper

705210791

$107.43

49

Cross Member

705206313

$35.79

50

Deep Black, Front Bumper

705209043

$453.70

52

Front Anchorage Ass'y

705211909

Unavailable

54

Deep Black, Rear Bumper Kit | Includes 54 to 54b6

715007109

$325.34

54a2

Can Am Logo

704902307

Unavailable

54a3

Pop Rivet 1/8", Black

293150189

$0.24

54b2

Decal "Can-Am" | Not Shown

704904566

$8.97

54b3

Hex. Elastic Flange Nut M8

229000122

$1.19

54b4

Torx Truss M/S M8 X 20

229000057

$1.87

54b5

Shoulder Screw HEX. M8 X 25

229000147

$6.93

54b6

Flat Washer M8

229000148

$9.04

55

Brake Support

705206217

$46.24

57

DPS Support

705206294

$64.15

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

75

Torx Truss Screw M8 X 16

250000746

$2.78

80

Hex Torx Truss M8 X30

250000745

$2.96

82

Bushing

705207229

$10.67

85

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

115

Bearing Support

705211563

$44.00

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

120

Central Tube

705209434

$142.51

125

Insert Half Hex Body M8 x 1.25

293450307

$1.97

126

Insert Half Hex Body M8 x 1.25

293450307

$1.97

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

140

Hex. Flange Nut

233081436

$1.63

160

LH Rear Anchorage Support

705211569

$17.88

161

RH Rear Anchorage Support

705211571

$17.88

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1540

Torx Truss Screw M8 X 16

250000746

$2.78

1550

Hex. Flange Screw M8 x 60

207686044

$2.56

1560

Sleeve

705210648

$8.42

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

1580

Torx Head Screw M6 X 16

250000717

$1.74

1590

Stainless Steel Flat Washer

234062670

$1.74

1595

LH Front Anchorage

705209913

$34.30

1596

RH Front Anchorage

705209914

$34.30
