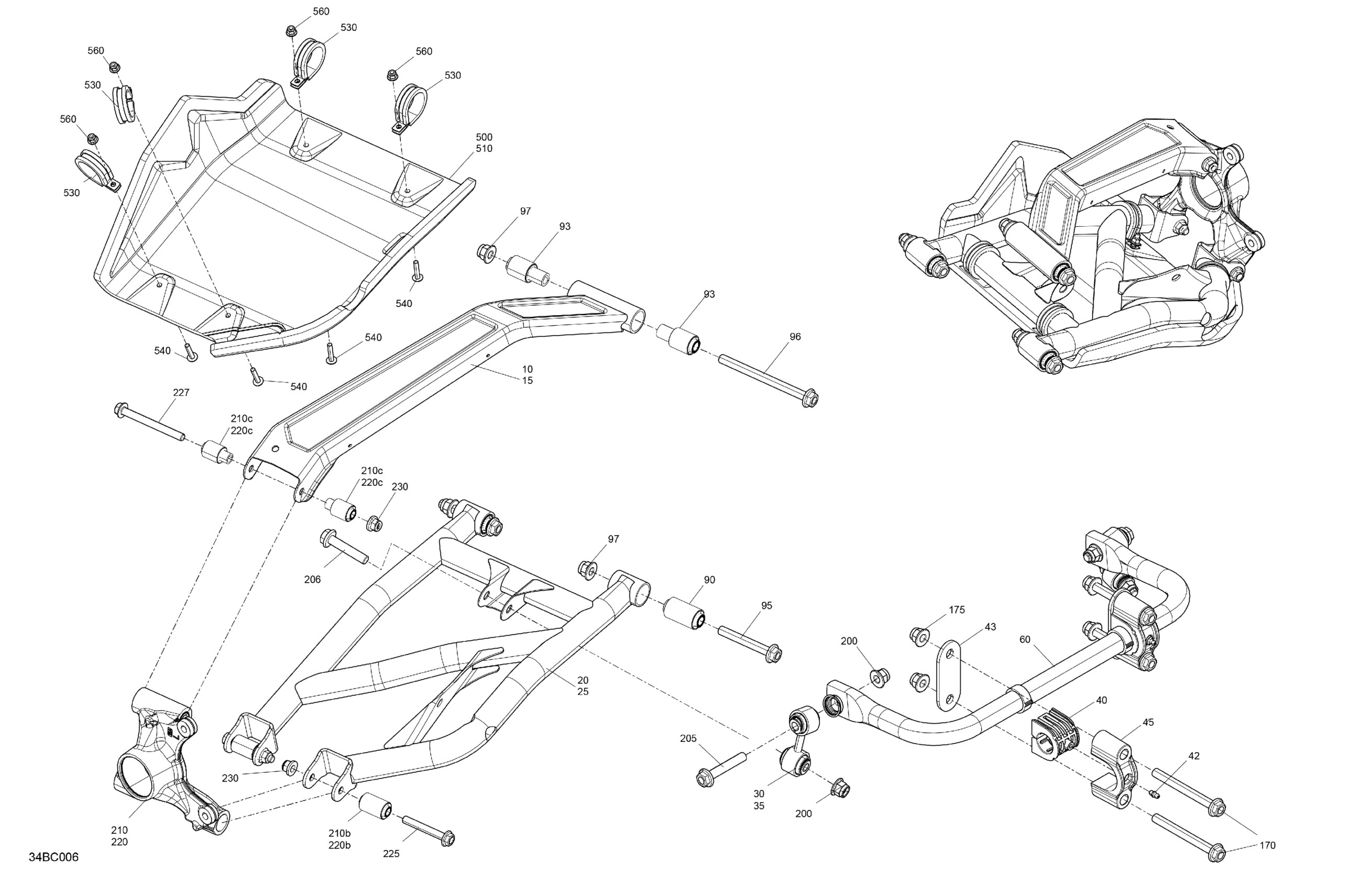

Can-Am Maverick Sport 1000R - XRC - 2023 Suspension - Rear Components Diagram

#

Description
Price

10

Macchiato Satin, LH Upper Suspension Arm

706003721

$223.85

15

Macchiato Satin, RH Upper Suspension Arm

706003722

$223.85

20

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003727.

715010704

$223.85

25

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003728.

715010711

$223.85

30

Sway Bar Double Link

706003004

$104.45

35

Sway Bar Double Link

706003003

$104.45

40

Stabilizer Bar Bushing

706004266

$7.24

42

Grease Fitting

408200700

$2.80

43

Plate Support

706002977

$4.52

45

Clamp

706002970

$14.48

60

Sway Bar Ass'y

706003475

Unavailable

90

Suspension Arm Bushing

706004828

$3.36

93

Suspension Arm Bushing

706004829

$3.58

95

Hex. Flange Screw M12X1.75X85

250001168

$2.80

96

Screw Hex Flange DIN.6921 M12X1.75X

250001167

$2.63

97

Elastic Flange Nut M12

250001195

$2.15

170

Screw Flange M12 X 115

250000860

$5.47

175

Elastic Flange Nut M12

250001195

$2.15

200

Elastic Flange Nut M12

250001195

$2.15

205

Hex. Flange Screw M12 X 70

250000858

$3.11

206

Flange Screw M12 X 60

250000857

$6.08

210

LH Rear Knuckle Anchorage Ass'y | Includes 210 to 210c

715010560

$114.90

210b

Not Available As Spare Parts

XXX

Unavailable

210c

Not Available As Spare Parts

XXX

Unavailable

220

RH Rear Knuckle Anchorage Ass'y | Includes 220 to 220c

715010561

$114.90

220b

Not Available As Spare Parts

XXX

Unavailable

220c

Not Available As Spare Parts

XXX

Unavailable

225

Hex. Screw M10 X 70, Scotch Grip

207507046

$6.08

227

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11

230

Hex. Flange Elastic Nut M10

233201436

$1.74

500

LH Rear Arm Protector

706003359

$102.21

510

RH Rear Arm Protector

706003360

$102.21

530

Open Clamp

293850121

$13.81

540

Stainless, Torx Screw M6 X 30

250000842

$1.74

560

Hex. Flange Elastic Nut M6

233261494

$1.26
