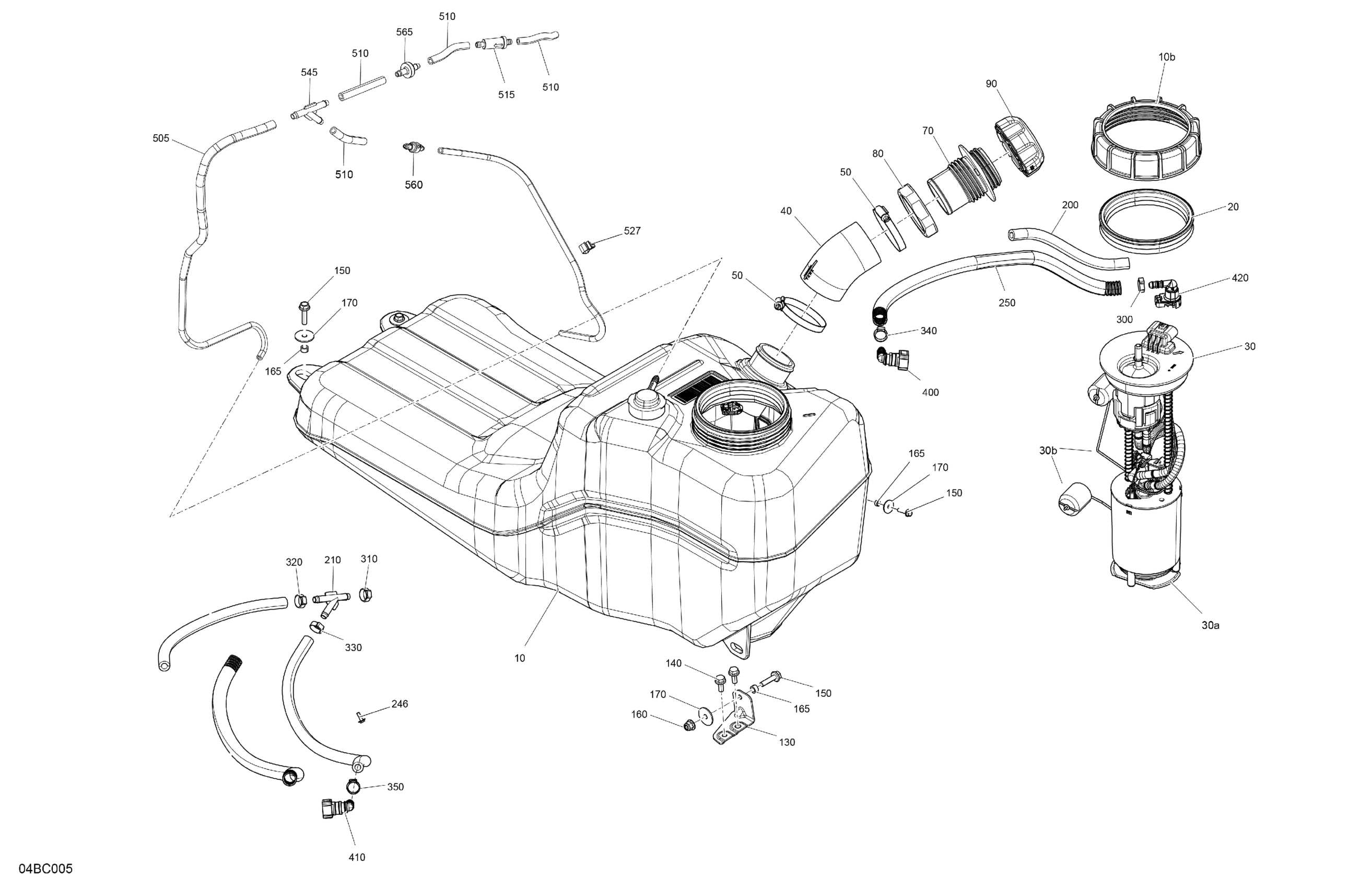

Can-Am Maverick Sport 1000R - XRC - 2023 Engine - Fuel - NO EVAP Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$379.07

10b

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$130.57

40

Fil Neck Hose

709000828

$28.33

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.33

80

Fuel Filler Neck Nut

293600206

$10.02

90

Fuel Cap

709000868

$29.07

130

Tank Bracket

709000997

$5.21

140

Hex. Flange Screw M6 X 16

207661644

$0.61

150

Hex. Flange Screw M6 X 25

207662554

$1.43

160

Hex. Flange Elastic Nut M6

233261466

$1.66

165

Spacer

293900135

$1.04

170

Washer M6

250200029

$1.78

200

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

210

Y Fitting

709001329

$9.85

246

Screw PT Type K-50 X 16

250000959

$1.74

250

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp

293650053

$2.42

310

Crimp Clamp

293650053

$2.42

320

Crimp Clamp

293650053

$2.42

330

Crimp Clamp

293650053

$2.42

340

Crimp Clamp

293650053

$2.42

350

Crimp Clamp

293650053

$2.42

400

Quick Disconnect

275500921

$12.61

410

Quick Disconnect

275500921

$12.61

420

Quick Disconnect

275500921

$12.61

505

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

510

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

515

Filter

709001120

$7.48

527

Tie Rap Mount (screwable)

515176795

$4.96

545

Y-Fitting

293710059

$8.19

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57
