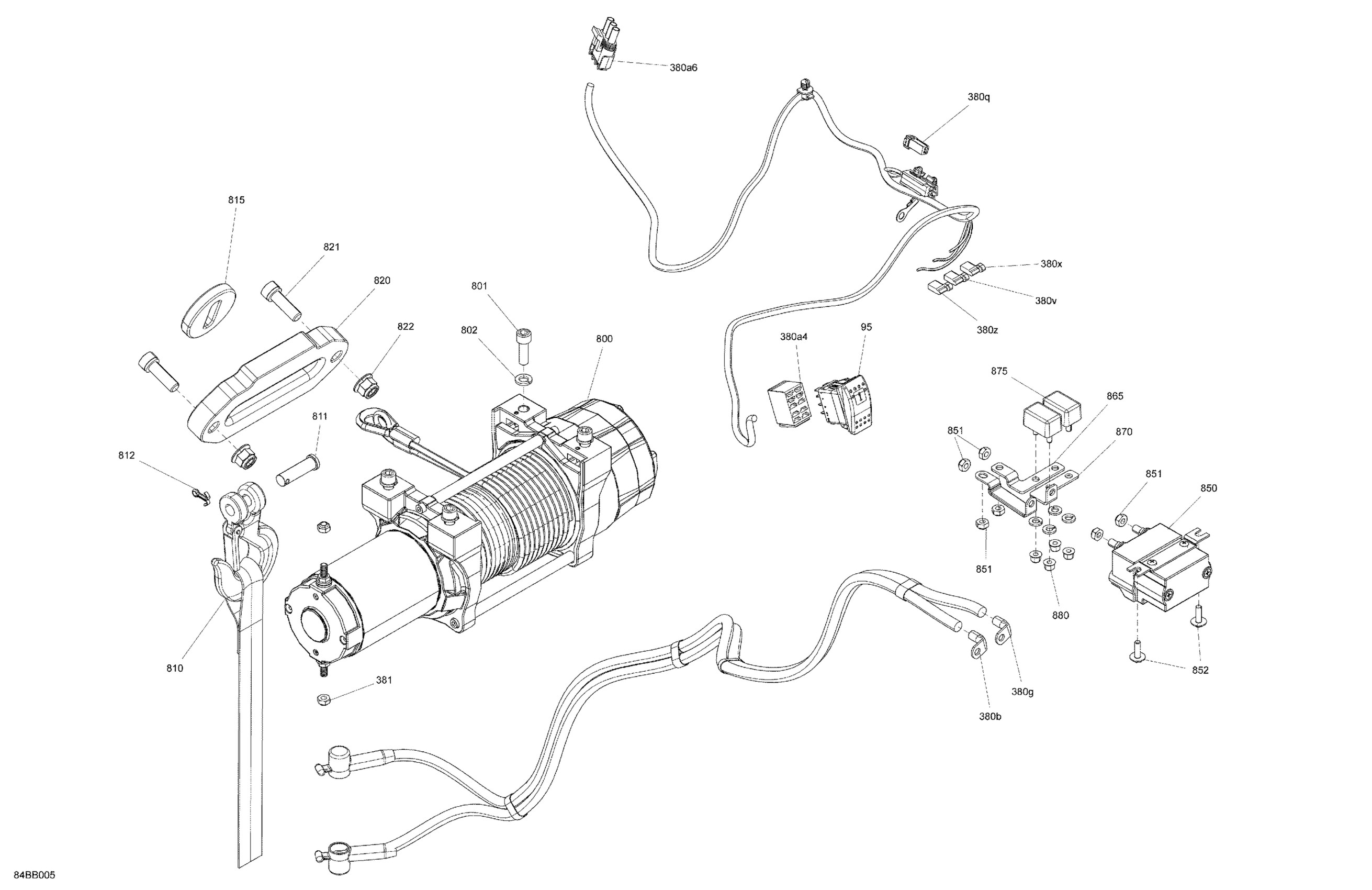

Can-Am Maverick Sport 1000R - XMR - 2022 Electric - Winch Diagram

#

Description
Price

95

Switch Winch

710002052

$28.49

380

Winch Cables

710007832

$105.99

380b

Open Barell | Model-XT

710000506

$6.11

380g

Open Barell | Model-XT

710000506

$6.11

380m

Diode

409012700

$11.12

380n

Diode

409012700

$11.12

380q

Female Housing, 2 Circuits

515175658

$16.18

380r

Female Terminal

515175231

$4.39

380s

Male Terminal Housing, 2 Circuits

515175654

$9.12

380t

Male Terminal

515175232

$1.58

380v

Female Terminal

409010300

$4.39

380x

Female Terminal

409010300

$4.39

380z

Female Terminal

409010300

$4.39

380a4

Housing

710002000

$7.90

380a5

Terminal

710003047

$3.49

380a6

Male Housing, 3 Circuits

278000273

$9.59

380a7

Wire Seal

278001065

$7.69

380a8

Female Terminal

278000223

$3.19

381

Elastic Stop Nut M6, Brass

232561200

$4.23

800

Electric Winch

710006990

$763.49

800a

WINCH DECAL 4500S - Call your local BRP dealership | Not Shown

704908222

Unavailable

801

Socket Head Screw M8 X 25

205082544

$1.15

802

Lock Washer 8 mm

234181401

$0.92

810

Winch Hook Kit

705014949

$24.99

811

Winch Hook Kit

705014949

$24.99

812

Winch Hook Kit

705014949

$24.99

815

Stopper

710007028

$3.82

820

Winch Rope Guide Kit

715006426

$61.49

821

Socket Screw M10 x 30 | XT

205003044

$3.17

822

Hex. Flange Elastic Nut M10

233201414

$1.58

850

Solenoid

710006991

$62.49

851

Elastic Stop Nut M6, Brass

232561200

$4.23

852

Screw PT Type K-50 X 16

250000959

$2.11

860

Power Bar

710004772

$12.16

865

Power Bar

710004872

$12.16

870

Power Bar

710004873

$12.16

875

Circuit Breaker 50 Amp

710007039

$19.49

880

Flange Elastic Nut M5

233251434

$2.00
