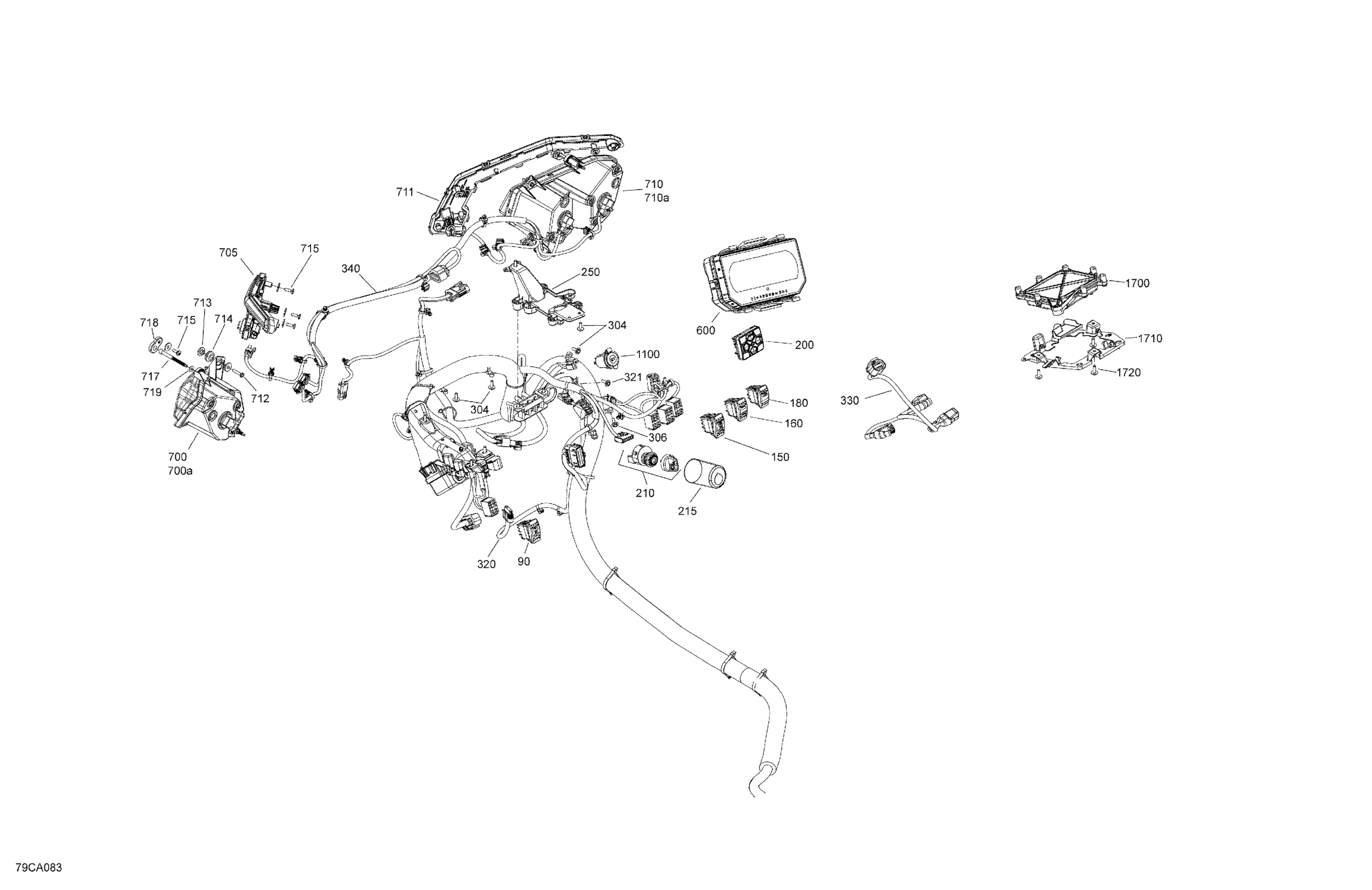

Can-Am Maverick Sport 1000R - XRC - 2021 Electric - Front System Diagram

Description

Price

Light Switch

710004492

$44.00

150

Differential Switch

710006040

$29.82

160

Differential Mode Switch

710006558

$21.61

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

200

Multifonction Switch

710006650

$81.31

210

Inter Allumage *Ignition

710007870

$51.46

215

Key Switch Protector

710005739

$2.69

250

Housing Support

710005672

$7.81

304

Screw PT Type K-50 X 16

250000959

$2.00

306

Screw PT Type K-50 X 16

250000959

$2.00

320

Trottle Pedal Harness

710005929

$211.91

321

Screw PT Type K-50 X 16

250000959

$2.00

330

Front Differential Wiring Harness

710006807

$44.75

340

Front Wiring Harness

710007441

$95.49

600

Multifunction Gauge MID | Model XTP

710007409

$325.34

700

LH Headlamp | Includes 700 to 700a

710008230

$177.58

700a

Bulb 12V 55W

715900141

$38.78

705

LH Signature Beam

710004994

$151.46

710

RH Headlamp | Includes 710 to 710a

710008231

$177.58

710a

Bulb 12V 55W

715900141

$38.78

711

RH Signature Beam

710004995

$151.46

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

713

Shoulder Bushing

710004749

$2.69

714

Grommet

709000582

$4.25

715

Screw PT Type K-50 X 16

250000959

$2.00

717

Ajustment Screw

710005837

$5.90

718

Adjustment Guide

710005097

$7.88

719

O-Ring

293300192

$3.81

1100

12V Power Outlet

710005374

$31.31

1700

Differential Module

710008871

$423.85

1710

FDM Support

710006104

$6.73

1720

Screw PT Type K-50 X 16

250000959

$2.00
