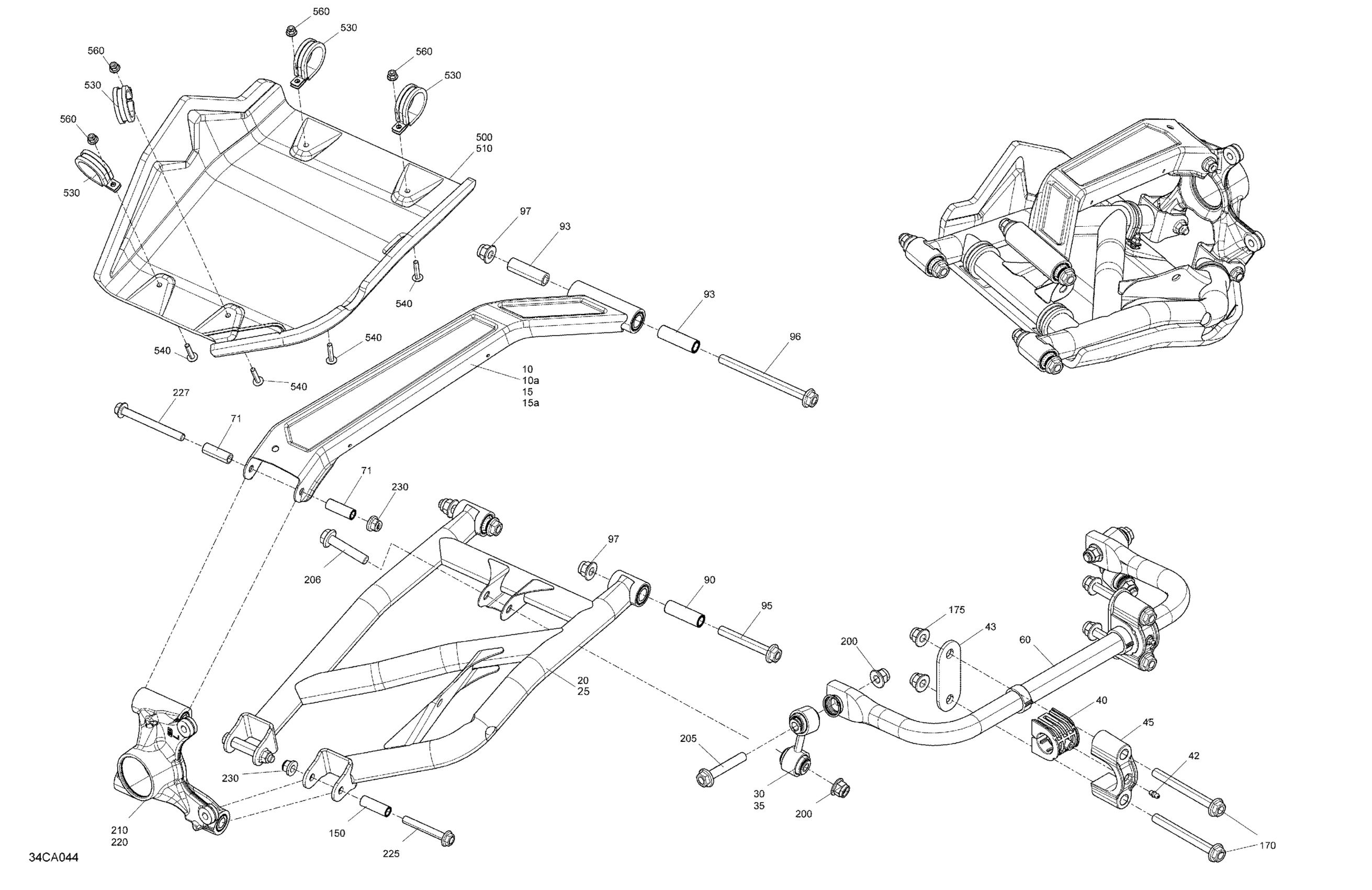

Can-Am Maverick Sport 1000R - XRC - 2021 Suspension - Rear - Built After January 18th 2021 Diagram

Magma Red, LH Upper Suspension Arm

706003717

$235.35

LH Upper Suspension Arm Ass'y With Bushing This part replaces 706003715.

715010684

$235.35

Magma Red, RH Upper Suspension Arm

706003718

$235.35

RH Upper Suspension Arm Ass'y With Bushing This part replaces 706003716.

715010695

$235.35

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003727.

715010704

$235.35

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003728.

715010711

$235.35

Sway Bar Double Link

706003004

$110.74

Sway Bar Double Link

706003003

$110.74

Stabilizer Bar Bushing

706004266

$9.22

Grease Fitting

408200700

$2.80

Plate Support

706002977

$4.60

Clamp

706002970

$15.35

Sway Bar Ass'y

706003475

$119.97

Not Available As Spare Part - Friction Washer

Unavailable

Suspension Arm Bushing

706003528

$9.22

Suspension Arm Bushing

706004829

$9.22

Flange Screw M12 X 85

250000859

$3.95

Flange Screw M12 X 145

250000861

$5.47

Elastic Flange Nut M12

233221466

$2.15

Not Available As Spare Part - Friction Washer

Unavailable

Screw Flange M12 X 115

250000860

$5.47

Elastic Flange Nut M12

233221466

$2.15

Elastic Flange Nut M12

233221466

$2.15

Hex. Flange Screw M12 X 70

250000858

$3.11

Flange Screw M12 X 60

250000857

$6.08

LH Rear Knuckle Anchorage Ass'y | Includes 210 to 210c

715010560

$119.97

RH Rear Knuckle Anchorage Ass'y | Includes 220 to 220c

715010561

$119.97

Hex. Flange Screw M10 X 70

207607046

$2.91

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$2.61

Hex. Flange Elastic Nut M10

233201436

$1.74

LH Rear Arm Protector

706003359

$110.74

RH Rear Arm Protector

706003360

$110.74

Open Clamp

293850121

$14.75

Stainless, Torx Screw M6 X 30

250000842

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26
