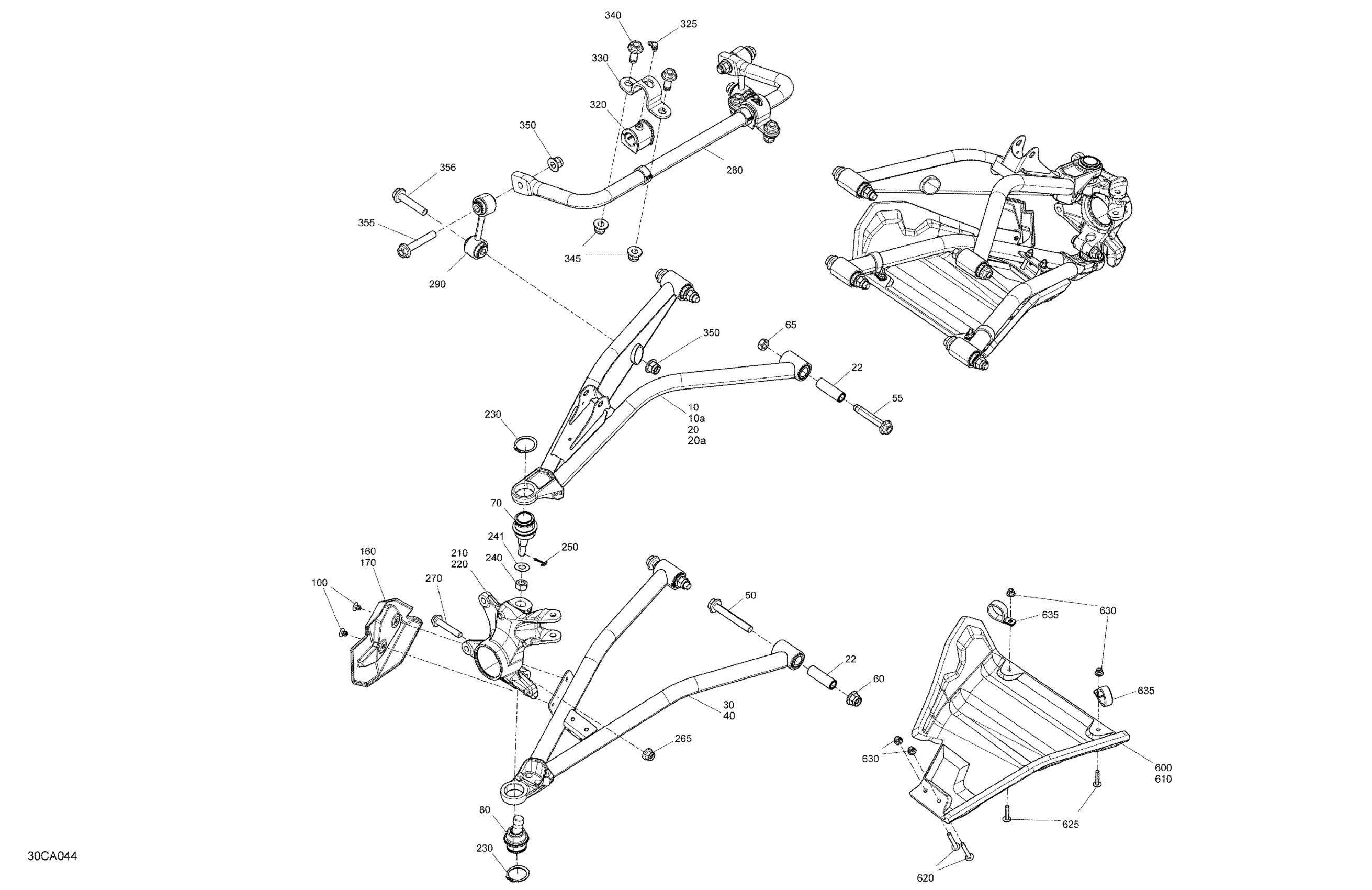

Can-Am Maverick Sport 1000R - XRC - 2021 Suspension - Front - Built After January 18th 2021 Diagram

#

Description
Price

10

Magma Red, LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203898.

715010753

$284.99

10a

LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203896.

715010749

$279.99

20

Magma Red, RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203899.

715010762

$284.99

20a

RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203897.

715010758

$279.99

22

Suspension Arm Bushing

706003528

$3.91

30

LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203908.

715010767

$279.99

40

Deep Black, RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203909.

715010774

$279.99

50

Flange Screw M12 X 85

250000859

$4.76

55

Flange Screw M12 X 85

250000859

$4.76

60

Elastic Flange Nut M12

233221466

$2.89

65

Elastic Flange Nut M12

233221466

$2.89

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

160

RH CV joint Guard

706202135

$11.01

170

LH CV joint Guard

706202134

$11.01

210

LH Front Knuckle

706202842

$211.99

220

RH Front Knuckle

706202844

$211.99

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

265

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Hex. Flange Screw M10 X 55

207605546

$2.11

280

Sway Bar Ass'y

706203649

$126.99

290

Sway Bar Double Link

706202937

$111.49

320

Stabilizer Bar Bushing

706204414

$8.43

325

Grease Fitting 90°

293550056

$1.15

330

Clamp

706203437

$14.81

340

Hex. Flange Screw DIN.6921

250000951

$7.17

345

Elastic Flange Nut M12

233221466

$2.89

350

Elastic Flange Nut M12

233221466

$2.89

355

Hex. Flange Screw M12 X 70

250000858

$3.80

356

Flange Screw M12 X 60

250000857

$7.41

600

LH A-Arm Protector

706203566

$132.49

610

RH A-Arm Protector

706203567

$132.49

620

Torx Truss Screw M6 X 50

250000749

$3.17

625

Stainless, Torx Screw M6 X 30

250000842

$2.11

630

Hex. Flange Elastic Nut M6

233261494

$1.58

635

Open Clamp

293750064

$5.89
