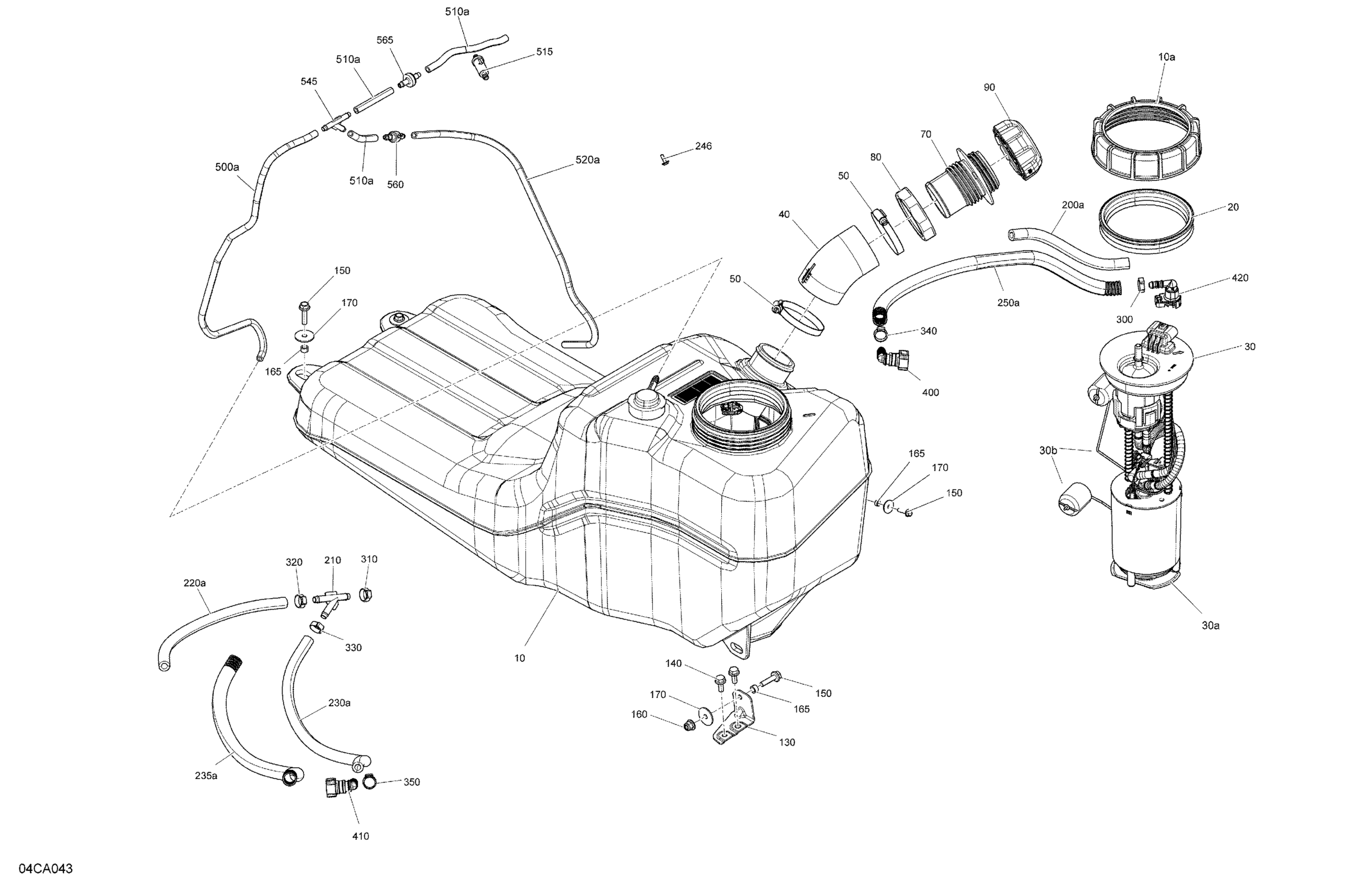

Can-Am Maverick Sport 1000R - XMR - 2021 Engine - Fuel - NO EVAP System Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$379.07

10a

Special Nut M130

250100062

$20.12

20

Gasket

293250173

$17.88

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

40

Fil Neck Hose

709000828

$28.33

50

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Filler Neck Nut, Fuel

211100012

$11.51

90

Fuel Cap

709000868

$29.07

130

Tank Bracket

709000997

$5.21

140

Hex. Flange Screw M6 X 16

207661644

$0.70

150

Hex. Flange Screw M6 X 25

207662554

$1.43

160

Hex. Flange Elastic Nut M6

233261466

$1.91

165

Spacer

293900135

$1.04

170

Washer M6

250200029

$1.78

200a

Was 709000163 Fuel Line

219704440

$25.34

210

Y-Fitting, 5/16''

293710136

$5.76

220a

Was 709000163 Fuel Line

219704440

$25.34

230a

Was 709000163 Fuel Line

219704440

$25.34

235a

Tubing 16 Mm 1000Mm Long

219704408

$7.15

246

Screw PT Type K-50 X 16

250000959

$2.00

250a

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp, 15.3-706R

293650047

$3.03

310

Crimp Clamp, 15.3-706R

293650047

$3.03

320

Crimp Clamp, 15.3-706R

293650047

$3.03

330

Crimp Clamp, 15.3-706R

293650047

$3.03

340

Crimp Clamp, 15.3-706R

293650047

$3.03

350

Crimp Clamp, 15.3-706R

293650047

$3.03

400

Quick Attach 90°

275500700

$14.48

410

Quick Attach 90°

275500700

$14.48

420

Quick Disconnect

275500921

$14.48

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

510a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

515

Filter

709001120

$7.48

520a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

545

Y-Fitting

293710059

$9.40

560

Check Valve

513033469

$29.07

565

Check Valve

275500398

$9.84
