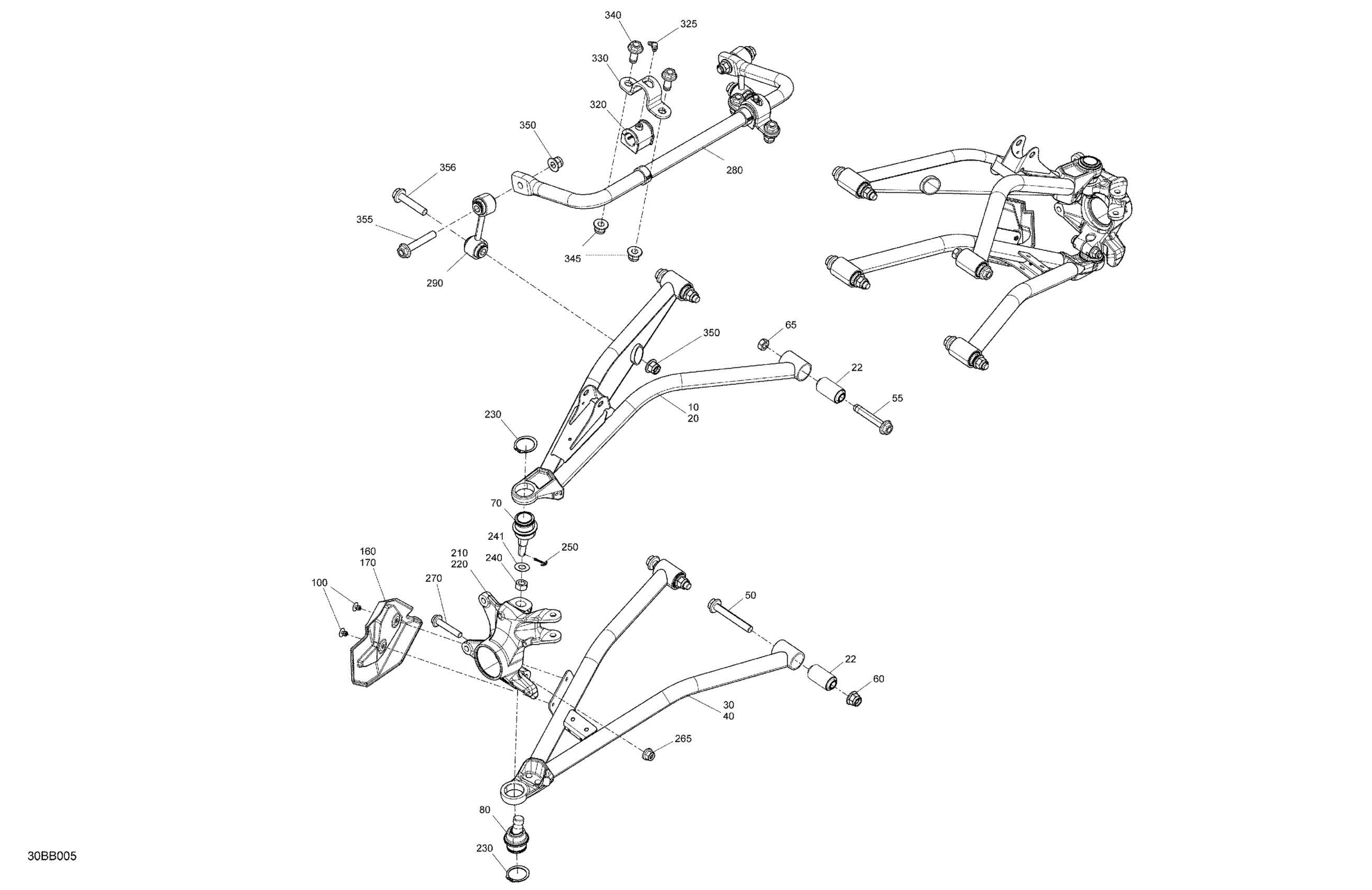

Can-Am Maverick Sport 1000R - XMR - 2022 Suspension - Front Components Diagram

#

Description
Price

10

Magma Red, LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203898.

715010753

$267.66

20

Magma Red, RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203899.

715010762

$267.66

22

Suspension Arm Bushing

706003528

$9.22

30

Magma Red, LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706204647.

715010770

$267.66

40

Magma Red, RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706204648.

715010777

$267.66

50

Hex. Flange Screw M12X1.75X85

250001168

$2.80

55

Hex. Flange Screw M12X1.75X85

250001168

$2.80

60

Elastic Flange Nut M12

233221466

$2.15

65

Elastic Flange Nut M12

233221466

$2.15

70

Ball Joint

706203084

$35.35

80

Ball Joint

706202045

$35.35

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

160

RH CV joint Guard

706202135

$9.23

170

LH CV joint Guard

706202134

$9.23

210

LH Front Knuckle

706202842

$207.66

220

RH Front Knuckle

706202844

$207.66

230

Circlip

293370035

$2.55

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

265

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Hex. Flange Screw M10 X 55

207605546

$1.74

280

Sway Bar Ass'y

706203649

$119.97

290

Sway Bar Double Link

706202937

$110.74

320

Stabilizer Bar Bushing

706204414

$9.22

325

Grease Fitting 90°

293550056

$1.37

330

Clamp

706203437

$13.83

340

Hex. Flange Screw DIN.6921

250000951

$5.47

345

Elastic Flange Nut M12

233221466

$2.15

350

Elastic Flange Nut M12

233221466

$2.15

355

Hex. Flange Screw M12 X 70

250000858

$3.11

356

Flange Screw M12 X 60

250000857

$6.08
