Partiron

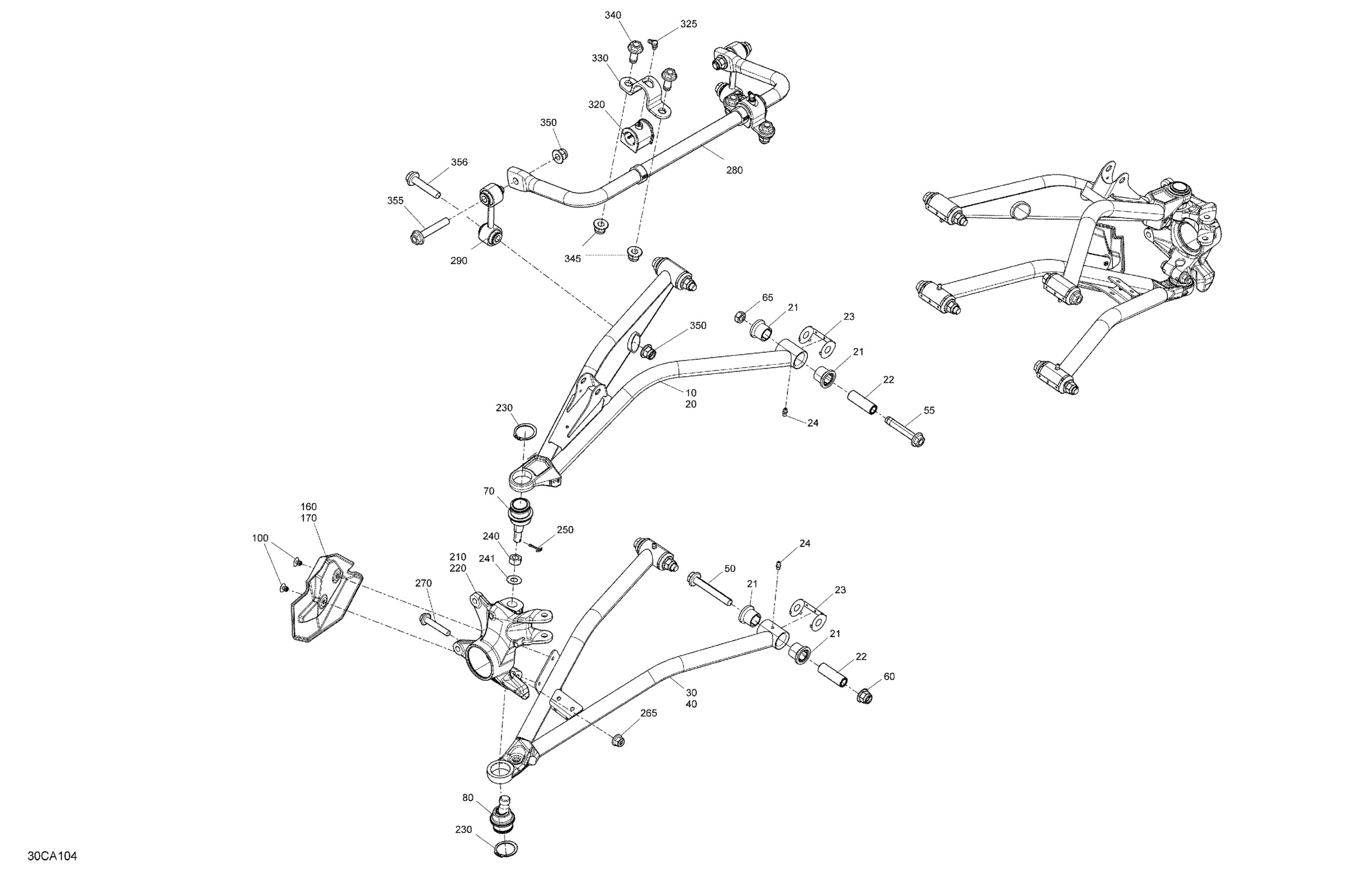

Can-Am Maverick Sport 1000R - XMR - 2021 Suspension - Front - Built Before January 17th 2021 Diagram

#

Description
Price

10

Manta Green, LH Upper Suspension Arm | Includes 10 to 10a

706204059

$190.99

20

Manta Green, RH Upper Suspension Arm | Includes 20 to 20a

706204060

$190.99

21

Suspension Arm Bushing

706204409

$9.10

22

Interior Bushing

706202257

$9.79

23

Wear Plate

706202300

$2.29

24

Grease Fitting

408200700

$3.49

30

Manta Green, LH Lower Suspension Arm | Includes 30 to 30a

706204028

$190.99

40

Manta Green, RH Lower Suspension Arm | Includes 40 to 40a

706204029

$190.99

50

Flange Screw M12 X 85

250000859

$4.76

55

Flange Screw M12 X 85

250000859

$4.76

60

Elastic Flange Nut M12

250001195

$2.64

65

Elastic Flange Nut M12

250001195

$2.64

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

160

RH CV joint Guard

706202135

$11.01

170

LH CV joint Guard

706202134

$11.01

210

LH Front Knuckle

706202842

$211.99

220

RH Front Knuckle

706202844

$211.99

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

265

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Hex. Flange Screw M10 X 55

207605546

$2.11

280

Sway Bar Ass'y

706203649

$126.99

290

Sway Bar Double Link

706202937

$111.49

320

Stabilizer Bar Bushing

706204414

$8.43

325

Grease Fitting 90°

293550056

$1.15

330

Clamp

706203437

$14.81

340

Hex. Flange Screw DIN.6921

250000951

$7.17

345

Elastic Flange Nut M12

250001195

$2.64

350

Elastic Flange Nut M12

250001195

$2.64

355

Hex. Flange Screw M12 X 70

250000858

$3.80

356

Flange Screw M12 X 60

250000857

$7.41
