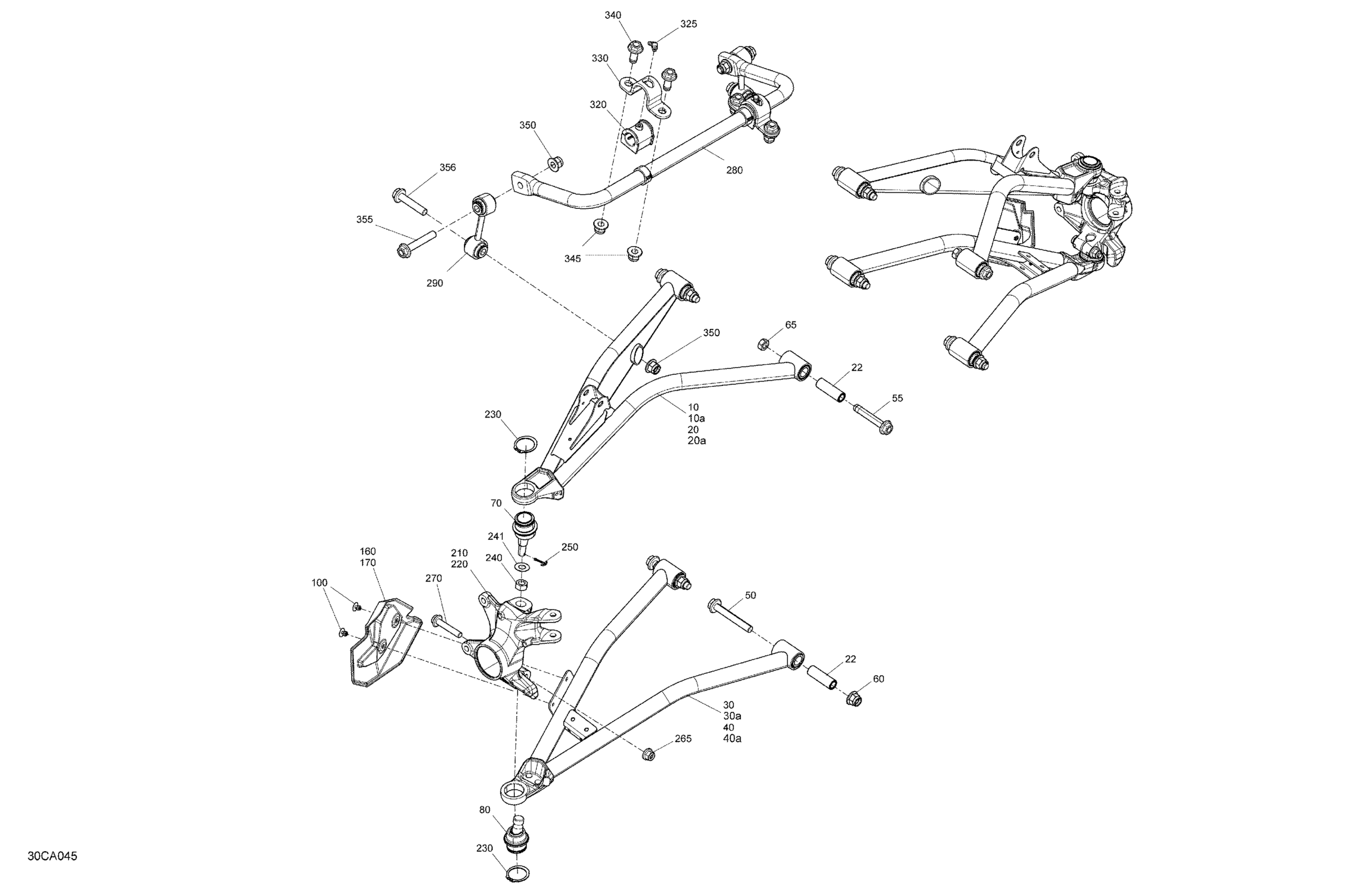

Can-Am Maverick Sport 1000R - XMR - 2021 Suspension - Front - Built After January 18th 2021 Diagram

Manta Green, LH Upper Suspension Arm | Includes 10 to 10a

706203900

$190.99

LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203896.

715010749

$279.99

Manta Green, RH Upper Suspension Arm | Includes 20 to 20a

706203901

$190.99

RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203897.

715010758

$279.99

Suspension Arm Bushing

706003528

$3.91

Manta Green, LH Lower Suspension Arm | Includes 30 to 30a

706203910

$190.99

LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203908.

715010767

$279.99

Manta Green, RH Lower Suspension Arm | Includes 40 to 40a

706203911

$184.99

Deep Black, RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203909.

715010774

$279.99

Flange Screw M12 X 85

250000859

$4.76

Flange Screw M12 X 85

250000859

$4.76

Elastic Flange Nut M12

233221466

$2.89

Elastic Flange Nut M12

233221466

$2.89

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

RH CV joint Guard

706202135

$11.01

LH CV joint Guard

706202134

$11.01

LH Front Knuckle

706202842

$211.99

RH Front Knuckle

706202844

$211.99

Circlip

293370035

$2.64

Nut M12

250100099

$2.09

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 55

207605546

$2.11

Sway Bar Ass'y

706203649

$126.99

Sway Bar Double Link

706202937

$111.49

Stabilizer Bar Bushing

706204414

$8.43

Grease Fitting 90°

293550056

$1.15

Clamp

706203437

$14.81

Hex. Flange Screw DIN.6921

250000951

$7.17

Elastic Flange Nut M12

233221466

$2.89

Elastic Flange Nut M12

233221466

$2.89

Hex. Flange Screw M12 X 70

250000858

$3.80

Flange Screw M12 X 60

250000857

$7.41
