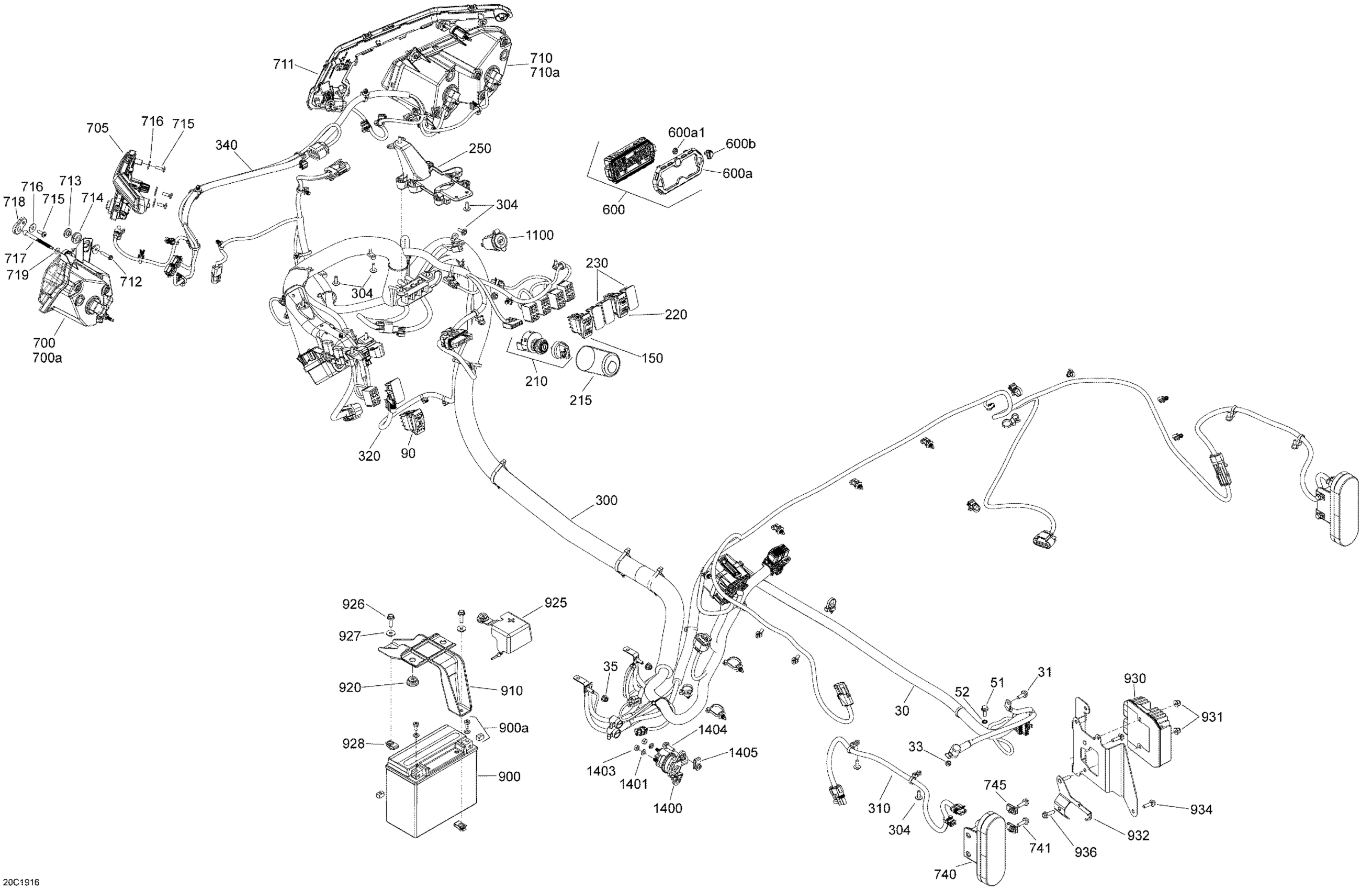

Can-Am Maverick Sport 1000 - BASE_DPS - 2019 Electrical Diagram

Starter Wiring Harness

710006244

$91.76

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Elastic Stop Nut M6

232561414

$1.78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

External Serrated Lock Washer 6 mm

234461608

$1.06

Light Switch

710004492

$44.00

2 X 4 Switch

710004814

$29.82

Inter Allumage *Ignition

710007870

$51.46

Key Switch Protector

710005739

$2.69

Driving Mode Switch

710005909

$36.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Housing Support

710005672

$7.81

Main Wiring Harness

710006403

$827.58

Screw PT Type K-50 X 16

250000959

$2.00

Rear Harness

710006551

$38.78

Trottle Pedal Harness

710005929

$211.91

Front Wiring Harness

710006257

$95.49

Speedometer | Includes 600 to 600b

710005553

$305.19

Trim Ring Ass'y

710001183

$17.88

BRP Logo13 mm

704904615

$11.09

Button

715900265

$11.81

LH Headlamp | Includes 700 TO 700a

710006422

$177.58

Bulb 12V 55W

715900141

$38.78

LH Fascia Trim

705011485

$39.52

LH Signature Beam

710004994

$151.46

RH Headlamp

710006423

$177.58

Bulb 12V 55W

715900141

$38.78

RH Fascia Trim

705011486

$39.52

RH Signature Beam

710004995

$151.46

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.25

Torx Screw K50 X 16

250000720

$1.60

Stainless Steel Flat Washer

234062670

$2.00

Ajustment Screw

710005837

$5.90

Adjustment Guide

710005097

$7.88

O-Ring

293300192

$3.81

Tail Light

710004497

$103.70

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Fixation Plate

710005673

$9.85

Stopper Rubber

705014429

$6.09

Battery Cable Cap

710005930

$7.67

Hex. Flange Screw M6 X 20

207662054

$0.96

Stainless Steel Flat Washer

234062670

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

Voltage Regulator

710005842

$183.55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Voltage Regulator Attach

710006402

$7.81

Voltage Regulator Support

710006656

$10.82

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

12V Power Outlet

710005374

$31.31

Starter Relay

278003012

$40.27

Lock Washer Helical M6

234161601

$1.06

Hex. Nut M6

232061600

$1.04

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Panel Nut M6 X 1.0

250100198

$1.99
