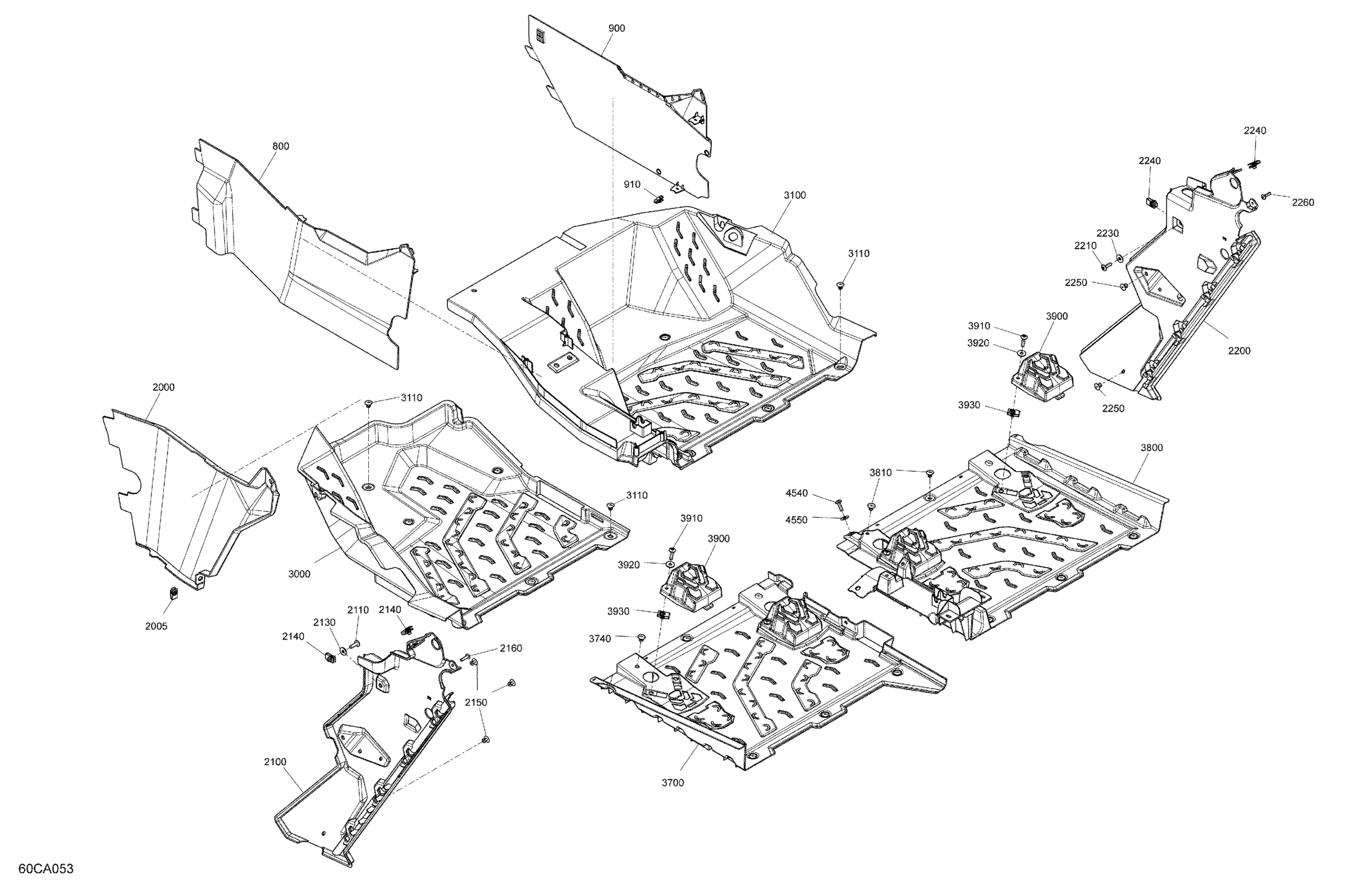

Can-Am Maverick MAX Turbo RR - XRS - CE, 2021 Body - Cab Interior - Floor Diagram

Description

Price

800

LH Console Panel

707901087

$64.90

900

RH Console Panel

707901088

$66.39

910

Clip

705010721

$2.03

2000

Side Panel Cover

707900477

$54.45

2005

Panel Nut M6 X 1.0

250100198

$1.99

2100

LH Central Cab Panel

707900804

$47.73

2110

Torx Screw M6 X 20

250000722

$1.54

2130

Stainless Steel Flat Washer

234062670

$2.00

2140

Panel Nut M6 X 1.0

250100198

$1.99

2150

Pop Rivet 3/16"

293150103

$0.52

2160

Torx Screw M6 X 20

250000722

$1.54

2200

RH Central Cab Panel

707900805

$47.73

2210

Torx Screw M6 X 20

250000722

$1.54

2230

Stainless Steel Flat Washer

234062670

$2.00

2240

Panel Nut M6 X 1.0

250100198

$1.99

2250

Pop Rivet 3/16"

293150103

$0.52

2260

Torx Screw M6 X 20

250000722

$1.54

3000

LH Front Floor

707900339

$60.42

3100

RH Front Floor

707900340

$60.42

3110

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3700

LH Floor

707900495

$60.42

3740

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3800

Rear Right Floor

707900496

$60.42

3810

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3900

Footrest Support

707900595

$3.94

3910

Torx Truss Screw M6 X 25

250000807

$2.00

3920

Stainless Steel Flat Washer

234062670

$2.00

3930

Panel Nut M6 X 1.0

250100198

$1.99

4540

Torx Screw M6 X 20

250000722

$1.54

4550

Stainless Steel Flat Washer

234062670

$2.00
