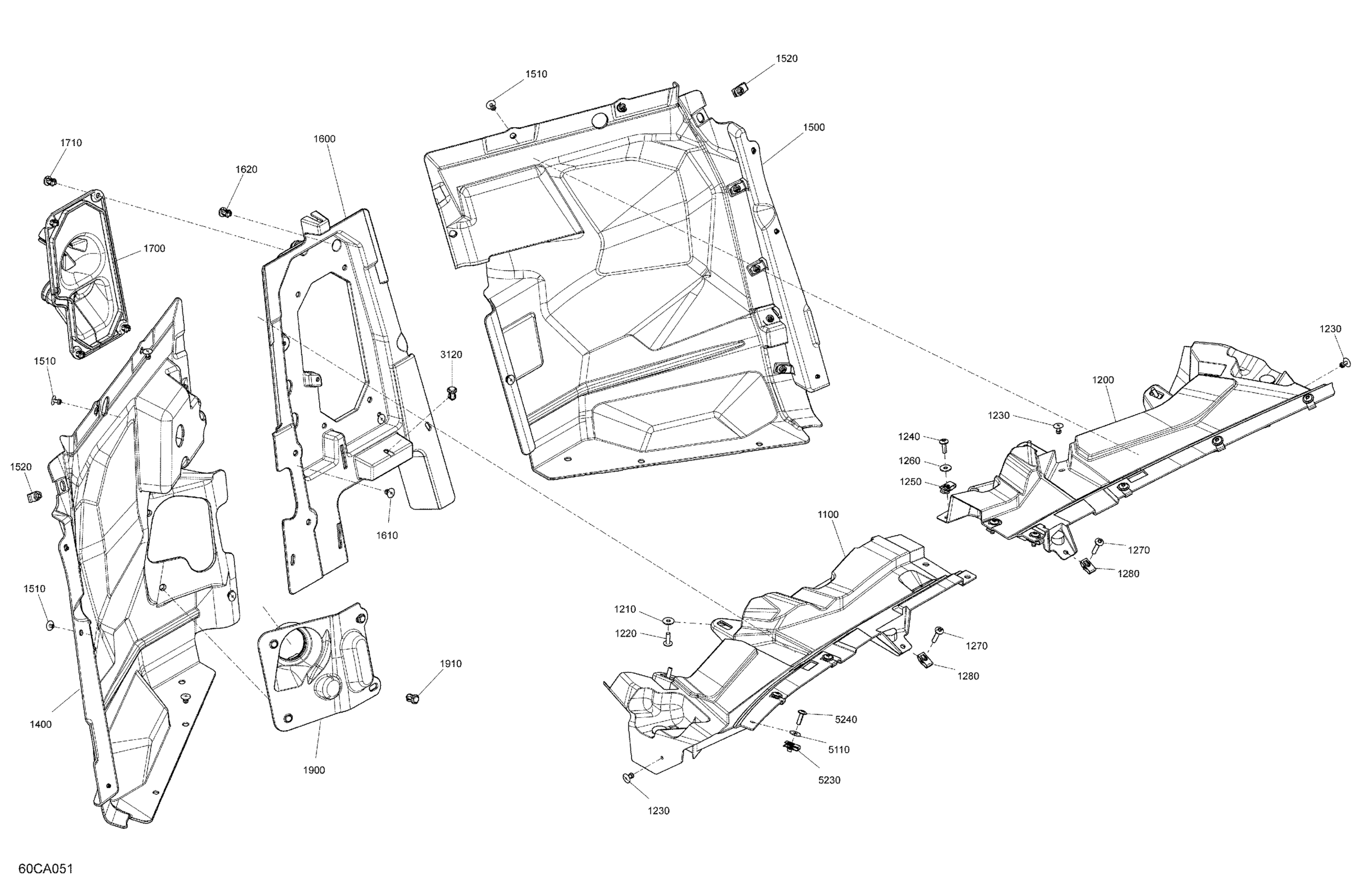

Can-Am Maverick MAX Turbo RR - XRS - CE, 2021 Body - Cab Interior - Firewall Diagram

Description

Price

1100

LH Front Upper Deflector

707900337

$144.99

1200

RH Front Upper Deflector

707900338

$189.99

1210

Stainless Steel Flat Washer

234062670

$2.11

1220

Torx Screw M6 X 20

250000722

$1.68

1230

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1240

Torx Screw M6 X 20

250000722

$1.68

1250

Panel Nut M6 X 1.0

250100198

$2.11

1260

Stainless Steel Flat Washer

234062670

$2.11

1270

Stainless, Torx Screw M6 X 30

250000842

$2.11

1280

Panel Nut M6 X 1.0

250100198

$2.11

1400

LH Front Bulkhead

707900930

$52.99

1500

RH Front Bulkhead

707900931

$52.99

1510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1520

Panel Nut M6 X 1.0

250100198

$2.11

1600

Front Bulkhead Panel

707900407

$49.99

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1620

Tuflok Plastic Rivet

293150230

$1.47

1700

Grommet

707900701

$17.49

1710

Tuflok Plastic Rivet

293150230

$1.47

1900

Steering Column Cover

707900754

$12.99

1910

Tuflok Plastic Rivet

293150230

$1.47

3120

Tuflok Plastic Rivet

293150230

$1.47

5110

Stainless Steel Flat Washer

234062670

$2.11

5230

Panel Nut M6 X 1.0

250100198

$2.11

5240

Torx Screw M6 X 20

250000722

$1.68
