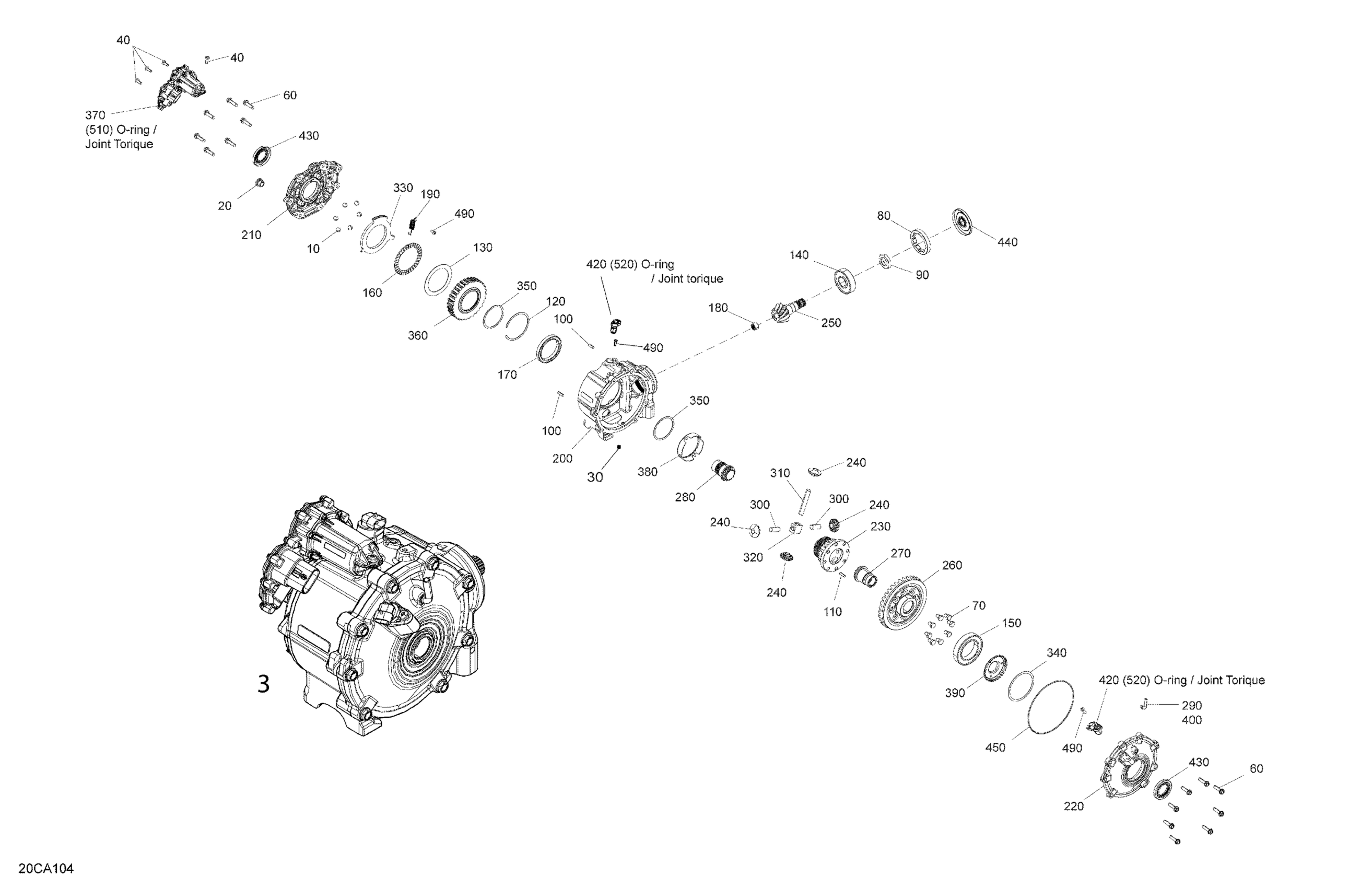

Can-Am Maverick MAX Turbo RR - XRS - CE, 2021 Drive - Front Section - Differential Parts Diagram

#

Description
Price

3

Front Differential Ass'y | Includes 30 to 30vv

705402767

Unavailable

10

Ball

715900564

$6.50

20

Fill Level Plug

705501889

$20.49

30

Fill Level Plug M10

715900563

$27.49

40

Torx Screw M6 X 16

705402845

$11.05

60

Bolt

705501886

$7.69

70

Hex Screw 3/8 X 0.500

715900561

$13.76

80

Nut M75 X 1.5

705401819

$23.99

90

Nut M27 X 1.5

705401820

$20.99

100

Dowel Pin

715900559

$6.67

110

Dowell Pin

715900618

$21.99

120

Retainin Ring

715900558

$26.99

130

Thrust Washer

715900557

$29.49

140

Ball Bearing

705401821

$31.99

150

Ball Bearing 60 X 95 X 18

715900556

$43.49

160

Needle Bearing

715900555

$19.99

170

Ball Bearing 65 X 85 X 10

715900554

$94.49

180

Needle Bearing

715900634

$38.99

190

Spring

715900553

$29.99

210

RH Cover

715900632

$142.99

220

LH Cover

715900631

$134.99

230

Housing

715900617

$121.99

240

Pinion 10T

715900548

$88.99

250

Pinion 10 T

715900635

$194.99

260

Gear 36T

715900676

$409.99

270

Gear 14T

715900546

$88.99

280

Gear 14T

715900545

$88.99

290

Vent Valve

705401935

$16.49

300

Pinion Pin 0.5 X 1.250

715900543

$21.99

310

Pinion Pin 0.5 X 3.000

715900542

$21.99

320

Coupler, Pin

715900541

$65.49

330

Ramp Ball

715900540

$77.49

340

Shim 74.50 X 66.00

715900539

$179.99

350

Shim 3.735 X 3.300

715900538

$274.99

360

Clutch Pack

715900537

$239.99

370

Actuator Ass'y

715900640

$509.99

380

Cross Pin Retainer

715900535

$28.99

390

Tone Ring 30T

715900534

$35.99

400

Vent Cap 5/16

715900533

$7.69

420

Speed Sensor

715900532

$104.99

430

Oil Seal

715900531

$26.49

440

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

450

O-Ring

715900530

$13.16

490

Torx Screw M6 X 16

705402845

$11.05

510

O-Ring

715900601

$12.49

520

O-Ring

715900600

$13.16

200

Housing

715900674

$144.99
