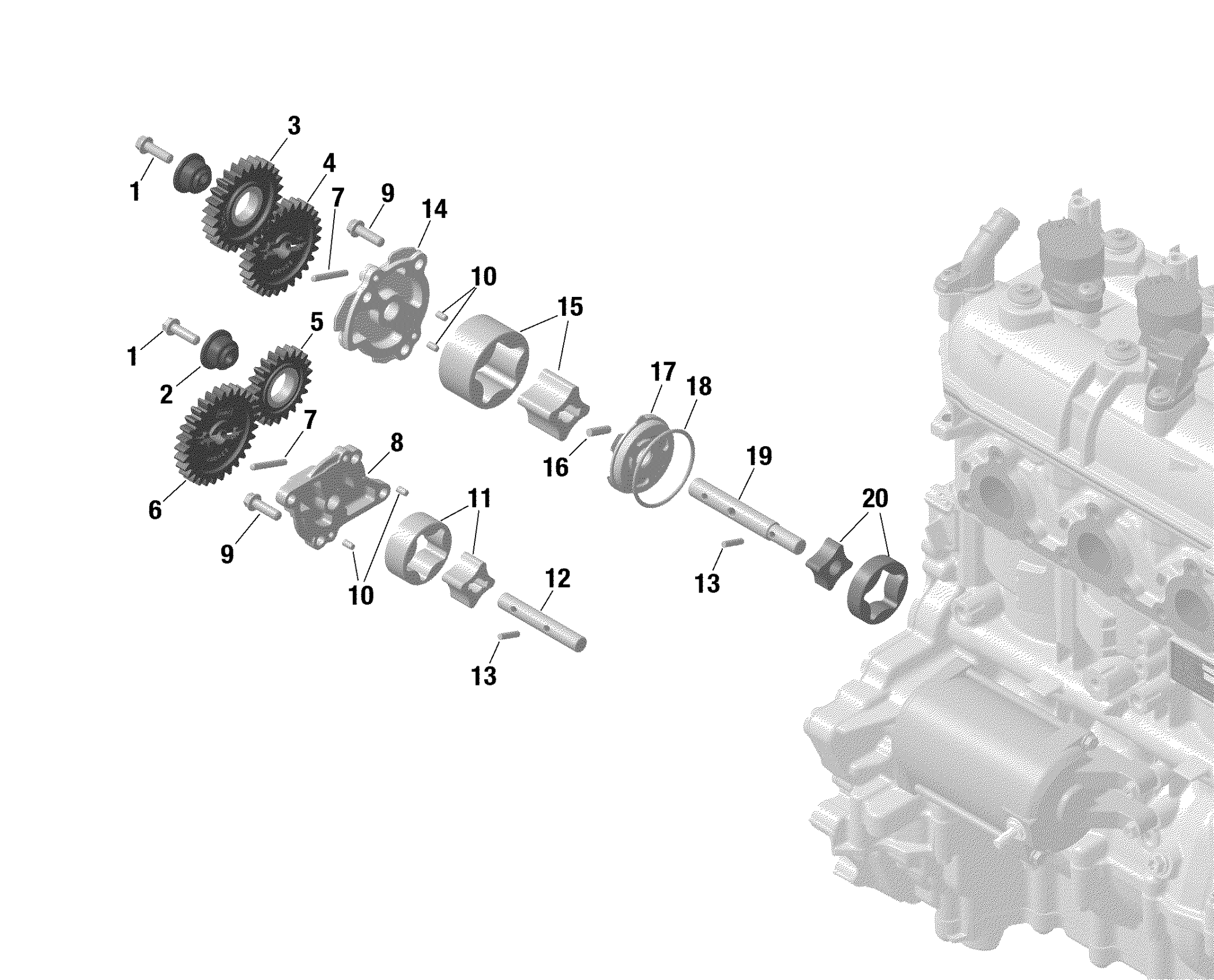

Can-Am Maverick MAX Turbo RR - XRS - CE, 2021 Rotax - Oil Pump Diagram

#

Description
Price

1

Torx Flange Screw M6 X 20

420440207

$3.06

2

Spacer

420947394

$24.99

3

Idle Gear, 26 Teeth

420835321

$24.99

4

Oil Pump Gear, 28 Teeth

420834887

$11.60

5

Gear 22 Teeths

420835400

$20.49

6

Oil Pump Gear, 29 Teeth

420834882

$11.60

7

Needle Pin

420232431

$4.39

8

Oil Pump Cover

420911080

$28.49

9

Torx Flange Screw M6 X 20

420440207

$3.06

10

Needle Pin

420929075

$2.11

11

Oil Pump Rotor

420956278

$72.99

12

Oil Pump Shaft

420820122

$23.99

13

Needle Pin

420232731

$4.01

14

Oil Pump Cover

420611980

$36.99

15

Oil Pump Rotor

420256831

$75.99

16

Needle Pin

420632221

$4.44

17

Oil Pump Cover

420611985

$43.49

18

O-Ring

420631830

$2.11

19

Oil Pump Shaft

420837917

$23.99

20

Oil Pump Rotor

420256348

$77.99
