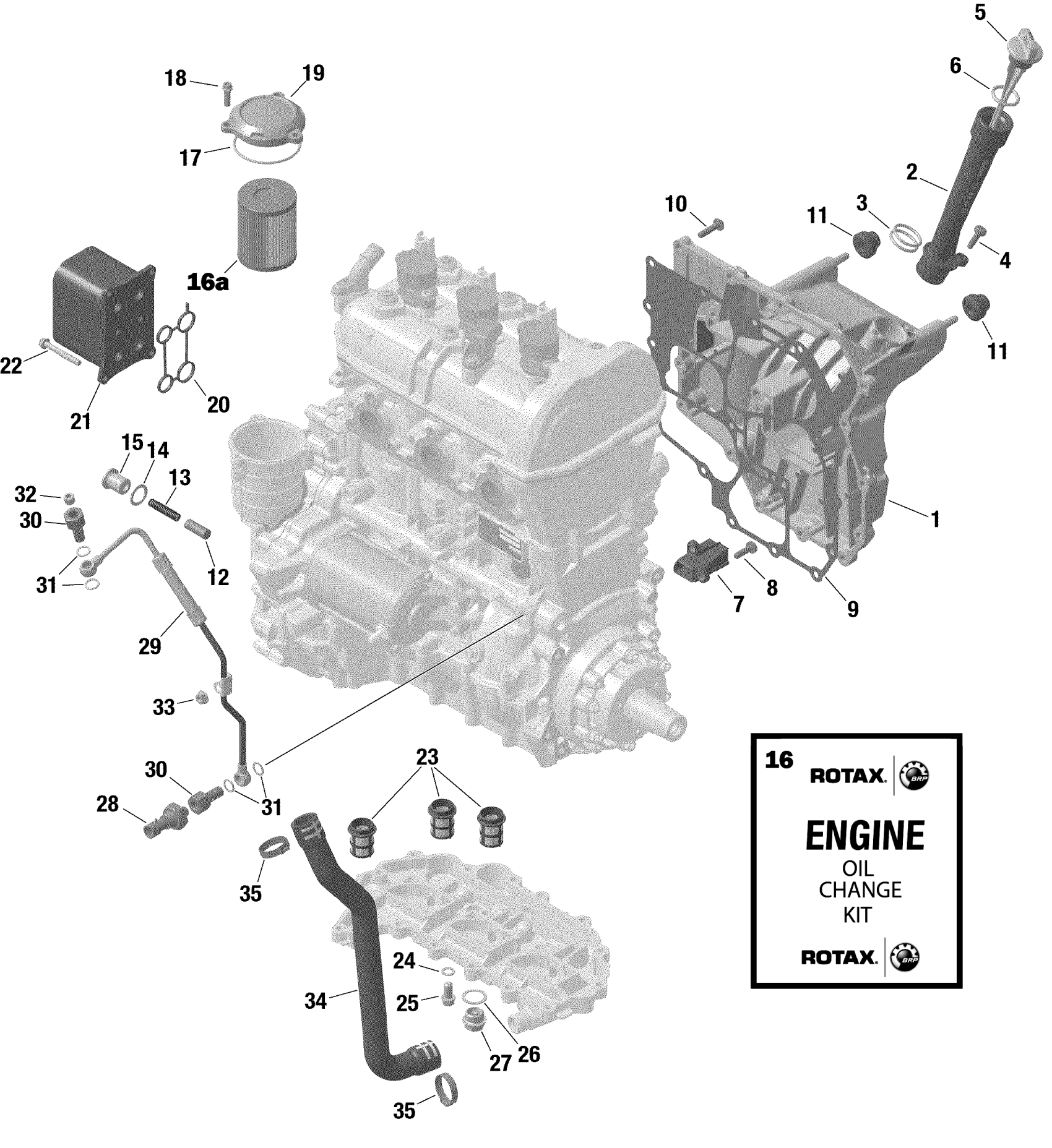

Can-Am Maverick MAX Turbo RR - XRS - CE, 2021 Rotax - Engine Lubrication Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$104.45

2

Oil Filler Tube

420656901

$9.19

3

O-Ring

420430440

$3.49

4

Torx Flange Screw M6 X 20

420441383

$5.04

5

Oil Dipstick

420856668

$12.34

6

O-Ring

420631640

$2.00

7

Oil Suction Pipe

420456260

$11.33

8

Torx Flange Screw M6 X 20

420441383

$5.04

9

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

10

Torx Flange Screw M6 X 25

420841548

$5.04

11

Rubber Grommet

420860150

$5.06

12

Pressure Regulating Piston

420256591

$12.15

13

Spring

420239445

$12.15

14

Gasket Ring

420430624

$1.73

15

Plug Screw

420441373

$12.64

16

CAN-AM Oil CHange Kit 5W40 900 CC

9779260

$91.76

16

CAN-AM Oil CHange Kit 10W50 900 CC

9779261

$94.99

16a

Oil Filter

420956123

$12.79

17

O-Ring

420230923

$2.97

18

Torx Flange Screw M6 X 20

420440207

$2.91

19

Oil Filter cover

420612135

$10.78

20

Gasket

420431871

$10.13

21

Oil Water Heat Exchanger

420656689

$148.48

22

Torx Flange Screw M6 X 45

420440324

$0.93

23

Oil Sieve

420656680

$10.01

24

Sealing Ring

420950141

$1.88

25

Torx Flange Screw M8 X 16

420440852

$3.88

26

Crush Washer

420552280

$3.43

27

Drain Plug M18 X 1.5

420840278

$22.36

28

Oil Pressure Switch

420256915

$37.28

29

Pressure Oil Line

420456451

$147.73

30

Spacer

420947580

$11.33

31

Oil Seal

420230154

$2.85

32

Plug Screw M10 X 1

420641323

$13.18

33

Hex Nut M6-10

420842890

$1.76

34

Molded Hose

420201743

$41.01

35

Clamp

420251578

$8.09
