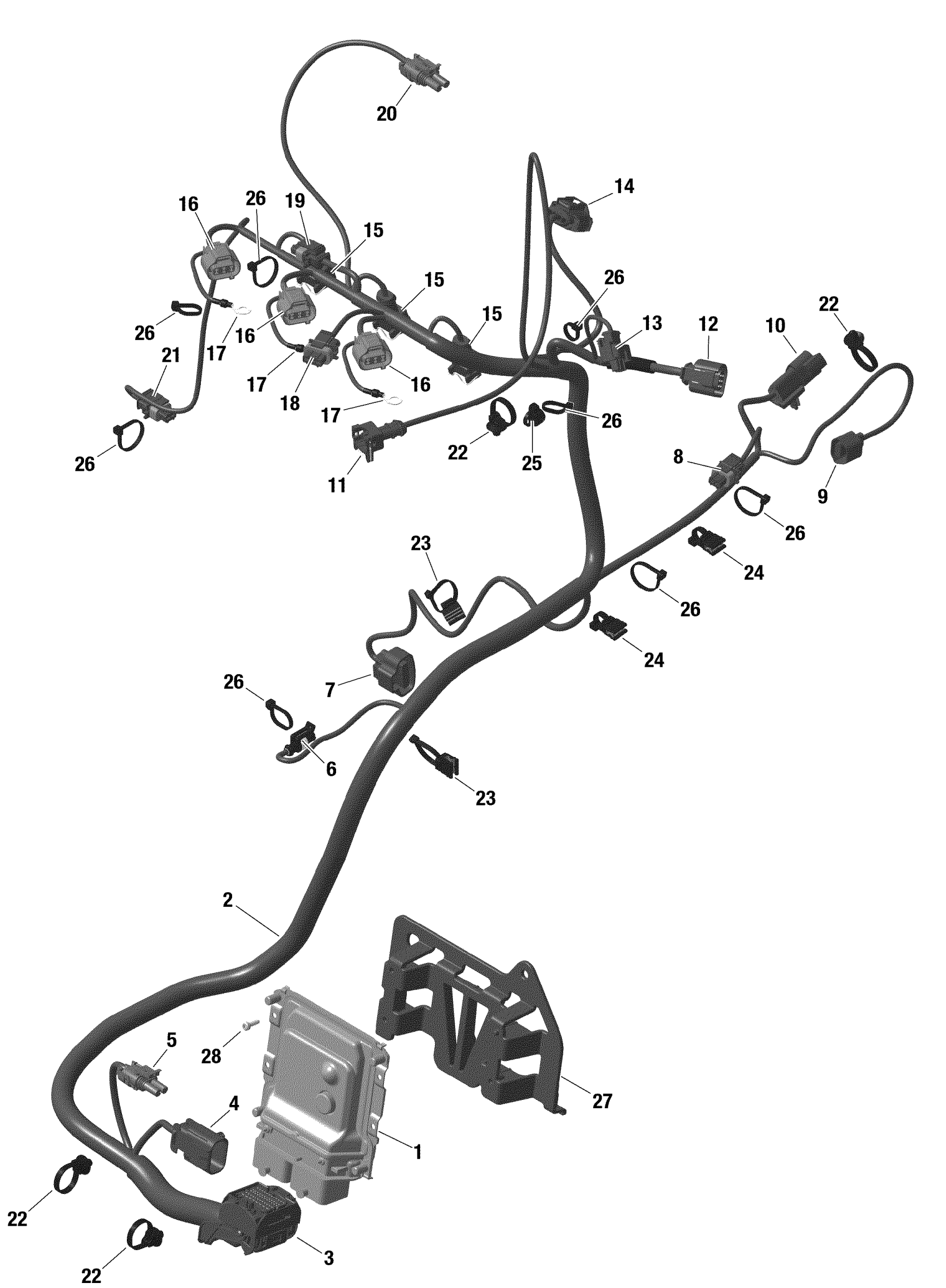

Can-Am Maverick MAX Turbo RR - XRS - CE, 2021 Rotax - Engine Harness And Electronic Module - Turbo RR Diagram

#

Description
Price

1

Ecu Module

420464483

$629.97

2

Wiring Harness | Includes 2 to 21

420666613

$447.66

4

Housing

710001927

$8.57

5

Male Connector, 2 Circuits

278000220

$11.02

6

Male Housing, 1 Circuit

278001012

$12.65

7

Male Housing, 4 Circuits

710000329

$14.75

8

Male Housing, 2 Circuits

278001005

$15.57

9

Female Connector 3 Circuits

710007787

$24.58

10

Male Housing

278002378

$10.91

11

Female Terminal Housing, 2 Circuits

415128500

$6.31

12

Female Housing

515177406

$31.82

13

Housing Connector, 3 Circuits

278001829

$17.52

14

Male Connector

515176410

$51.97

15

Female Housing

515176129

$28.43

16

Connector 3 Positions

710002516

$10.52

17

Open Barrel

278000992

$1.79

18

Housing

278003197

$11.71

19

Male Housing, 2 Circuits

278001005

$15.57

20

Male Connector, 2 Circuits

278000220

$11.02

21

Male Housing, 2 Circuits

278001005

$15.57

22

Tie Rap

420951345

$2.31

23

Tie Rap

420951785

$4.28

24

Cable Clamp 150mm

420951650

$3.55

26

Tie Rap

420866714

$1.56

27

Bracket

420260175

$23.05

28

Torx Screw M4 X12

420441570

$1.56
