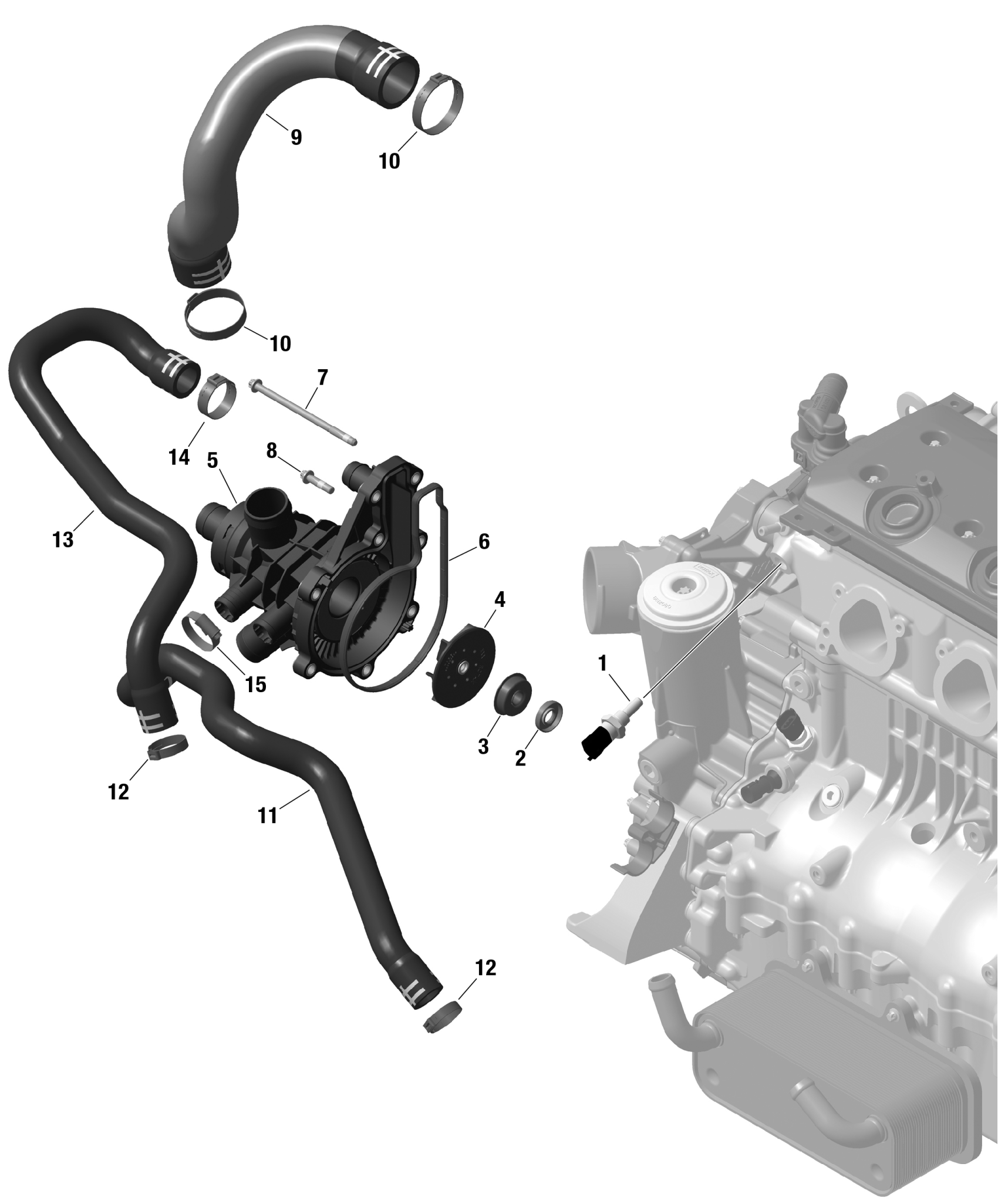

Sea-doo GTX STD 300, 2023 ROTAX - Engine Cooling Diagram

#

Description

Price

1

Temperature Sensor

278002895

$39.99

2

Oil Seal

420650315

$11.65

3

Rotary Seal

420650371

$43.49

4

Impeller

420922804

$17.57

5

Water Pump Housing Ass'y | Includes no. 5-6

420922934

$339.99

6

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.27

7

Torx Flange Screw M6 X 105

420641338

$7.41

8

Torx Flange Screw M6 X 25

420641238

$3.27

9

Formed Hose

420922823

$56.99

10

Oetiker Clamp

420851687

$11.65

11

Formed Hose

420822763

$45.99

12

Clamp

420853161

$10.33

13

Formed Hose

420822768

$22.49

14

Clamp 28.4 31.6

420851671

$2.32

15

Tridon Gear Clamp

293650019

$5.82
