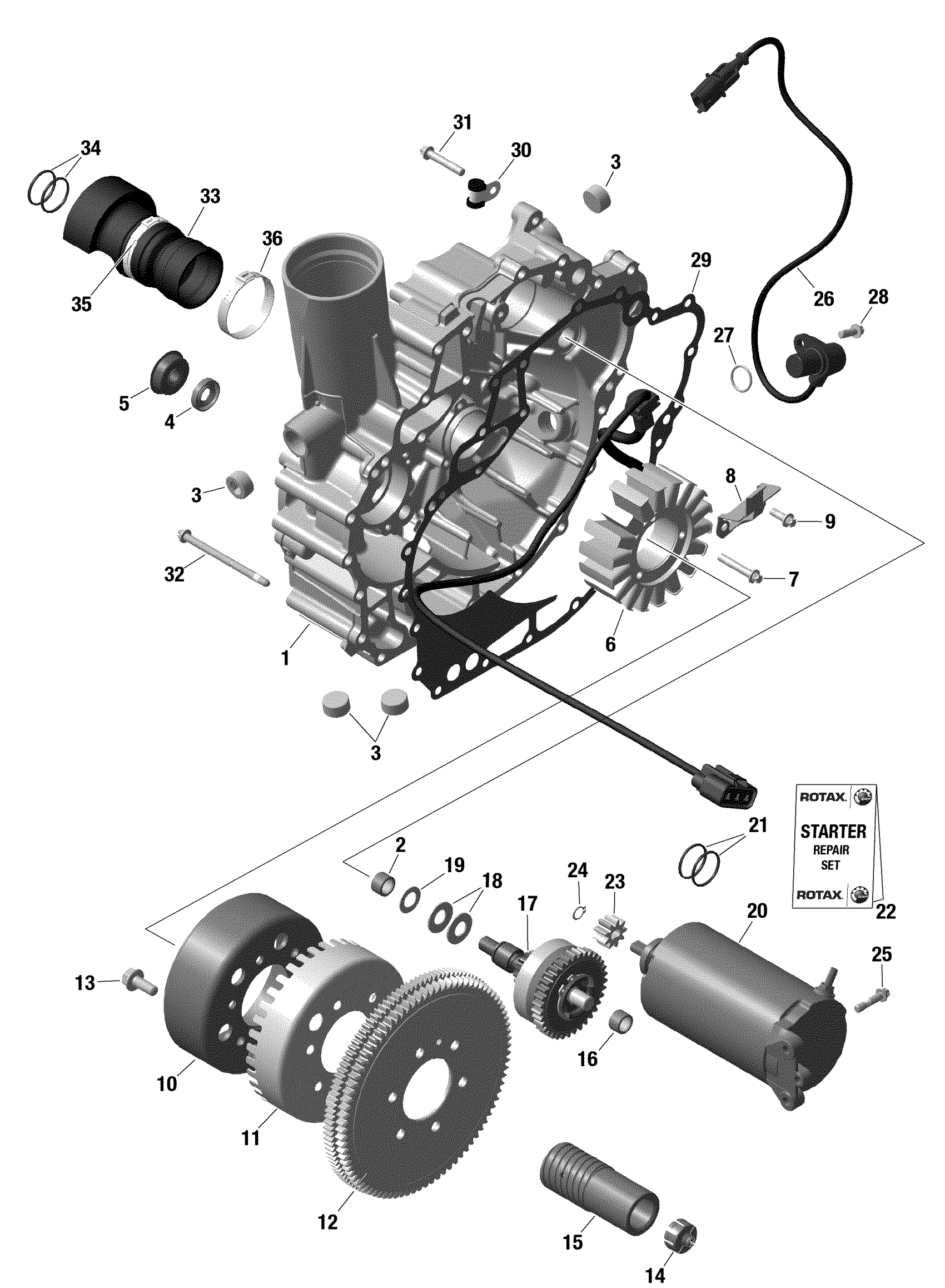

Sea-doo GTX 300, 2022 ROTAX - Magneto and Electric Starter - No iDF Diagram

#

Description
Price

1

Timing Drive Cover | Includes no. 1-5

420912261

$762.99

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Oil Seal

420650315

$11.65

5

Rotary Seal

420650371

$43.49

6

Stator Plate

420889728

$319.49

7

Torx Flange Screw M6 X 35

420641258

$3.38

8

Retaining Plate

420926300

$16.37

9

Torx Flange Screw M6 X 16

420641048

$2.96

10

Magneto Flywheel

420296900

$461.99

11

Trigger Wheel

420966851

$18.49

12

Starter Double Gear 117/86 T

420834915

$299.99

13

Hex Screw

295501162

$15.28

14

Stop Sleeve

420660280

$14.75

15

Output Sleeve

420947773

$121.99

16

Needle Bushing

420232482

$20.99

17

Starter Drive

420888041

$274.99

18

Spring Washer

420238300

$7.41

19

Thrust Washer

420827280

$8.47

20

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

21

O-Ring

420631310

$4.44

22

Carbon Brush Set

420881340

$67.99

23

Starter Gear, 9 Teeth

420834522

$74.99

24

Retaining Ring

420845601

$4.55

25

Torx Flange Screw M6 X 25

420641238

$3.27

26

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

27

O-Ring

420431580

$14.83

28

Torx Flange Screw M6 X 16

420641048

$2.96

29

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

30

Clamp

420853414

$18.49

31

Torx Flange Screw M6 X 35

420641258

$3.38

32

Torx Flange Screw M6 X 85

420641228

$7.41

33

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

34

O-Ring

420631612

$4.33

35

Gear Clamp 46.8-50.0MM

420853023

$7.41

36

Gear Clamp

420851653

$7.41
