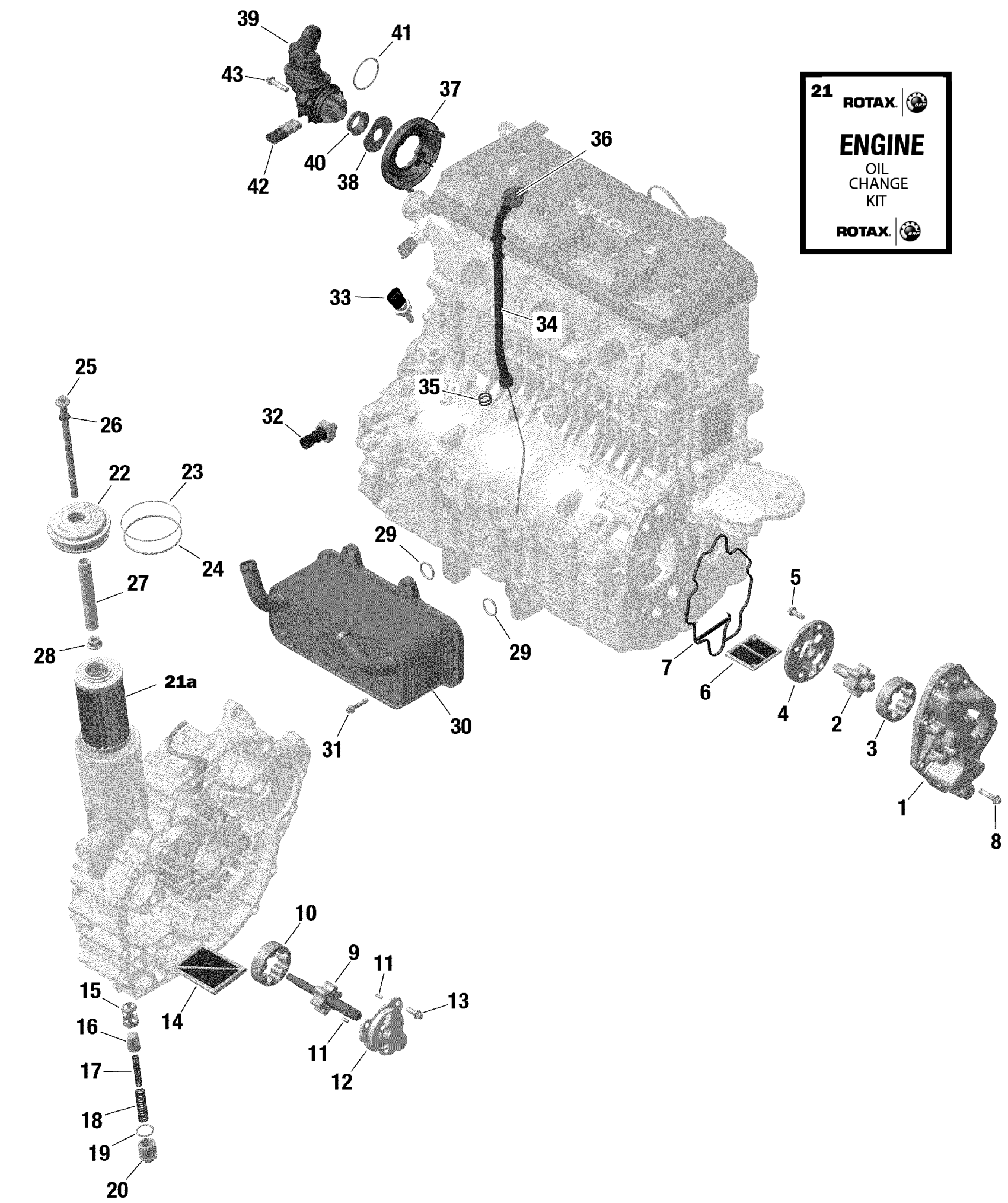

Sea-doo GTX 300, 2022 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Oil Pump Housing

420812726

$119.99

2

Oil Pump Shaft

420837543

$61.49

3

Oil Pump Rotor 16 mm

420956675

$36.99

4

Oil Pump Cover

420811851

$33.99

5

Torx Flange Screw M6 X 16

420641048

$2.96

6

Oil Sieve

420856520

$26.49

7

Oil Suction Pump Gasket | Included in gasket kit

420631486

$10.33

8

Torx Flange Screw M6 X 25

420641238

$3.27

9

Pump Shaft Ass'y

420837472

$56.99

10

Oil Pump Rotor 16 mm

420956675

$36.99

11

Needle Pin

420929070

$1.90

12

Oil Pump Cover

420811591

$37.99

13

Torx Flange Screw M6 X 16

420641048

$2.96

14

Oil Sieve

420956950

$16.86

15

Valve Seat Sleeve

420256606

$29.49

16

Piston Valve

420256638

$22.99

17

Compression Spring

420939401

$14.75

18

Compression Spring

420939211

$8.99

19

O-Ring

420230890

$5.39

20

Plug Screw M20 X 1.5

420641052

$37.99

21

Oil Change Kit 5W40 1500cc

9779486

$90.99

21a

Oil Filter

420956744

$20.99

22

Oil Filter Cover

420612081

$45.49

23

O-Ring

420850500

$3.17

24

O-Ring

420230923

$3.17

25

Hex Screw M8 X 140.5

420641104

$13.76

26

O-Ring

420950860

$3.91

27

Spacer

420857229

$20.99

28

Hex. Nut M8

420842610

$13.77

29

O-Ring

420250057

$4.23

30

Oil Radiator

420888878

$328.49

31

Torx Flange Screw M6 X 25

420641238

$3.27

32

Oil Pressure Switch

420256919

$51.99

33

Temperature Sensor

278002895

$39.99

34

Oil Level Tube

420956944

$121.49

35

O-Ring

420950810

$14.83

36

Oil Level Gauge

420956932

$30.49

37

Cover

420660037

$23.49

38

Thrust Washer

420627494

$7.41

39

Vent Valve Ass'y | Includes no. 39-42

420856504

$110.99

40

V-Ring 20S FPM Blow By Valve

420630125

$11.63

41

O-Ring

420950870

$5.39

42

TOPS Switch

420665951

$42.49

43

Torx Flange Screw M6 X 25

420641238

$3.27
