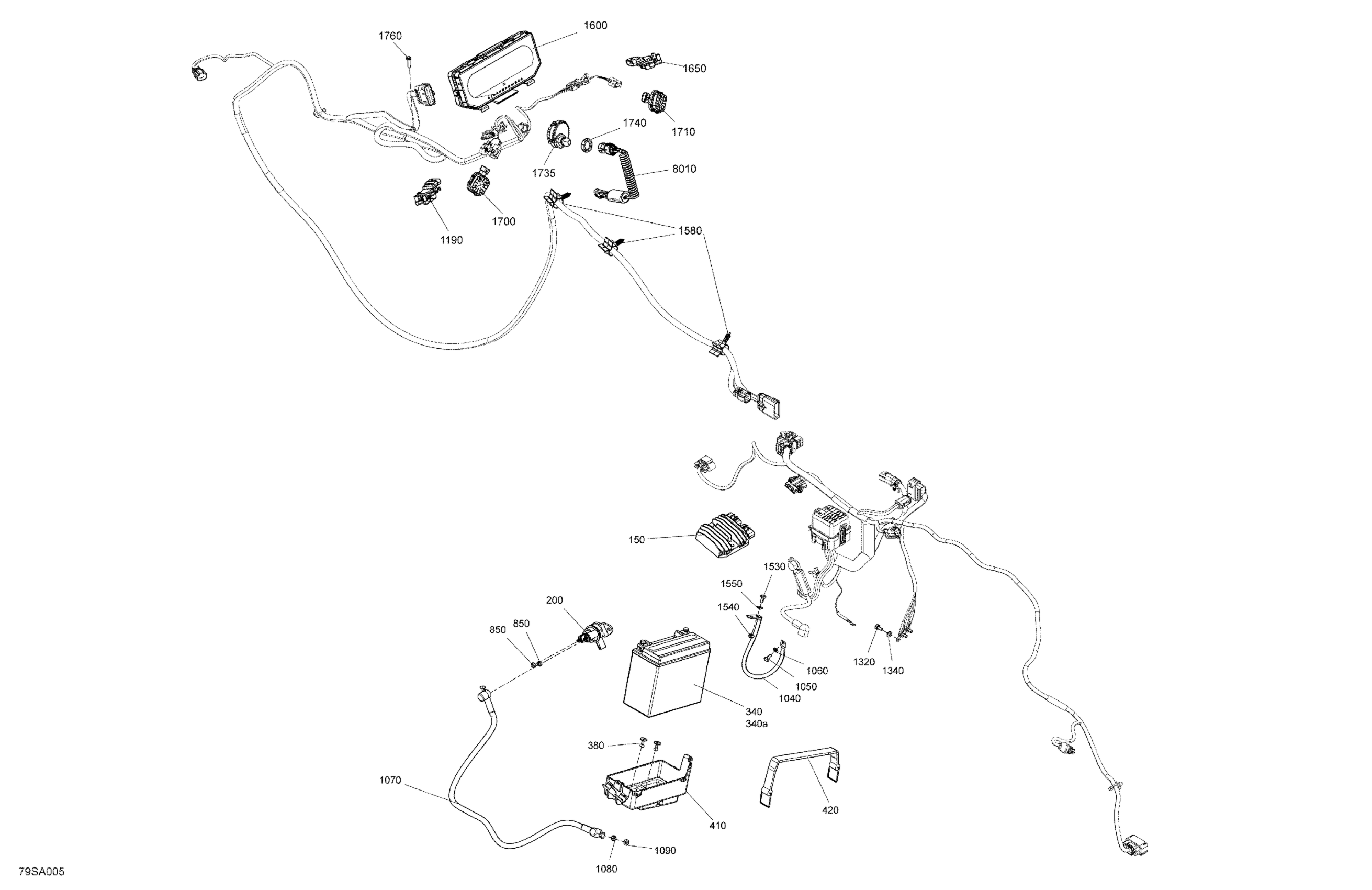

Sea-doo 003 - GTX 300, 2021 08- Electric - System Diagram
#
Description
Price
150
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
200
Starter Relay
278003012
$42.49
340
Battery 12 Volt 18AH
296000449
$92.28
340
Battery Ass'y, 18 Amperes | Brazil
515179099
Unavailable
340
Battery Ass'y, 18 Amperes | Australia
830201279
Unavailable
340
Battery Ass'y, 18 Amperes | Australia
830201282
Unavailable
340a
Battery Bolt Kit
250000282
$7.29
380
Pop Rivet 3/16"
293150123
$4.29
410
Battery Support
278003473
$28.99
420
Fuel Tank Strap
293850095
$19.99
850
Elastic Stop Nut M6, Brass
232561200
$4.23
1040
Ground Battery Cable
278003451
$39.99
1050
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1060
Stainless Flat Washer M6
234061600
$0.33
1070
Starter Cable
278003369
$39.99
1080
Elastic Stop Nut M6, Brass
232561200
$4.23
1090
Stainless Flat Washer M6
234061600
$0.33
1190
LH Throttle Sensor
278002284
$119.99
1320
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1340
Stainless Flat Washer M6
234061600
$0.33
1530
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1540
Elastic Stop Nut M6, Brass
232561200
$4.23
1550
Stainless Flat Washer M6
234061600
$0.33
1580
Retainer
278003564
$8.39
1600
Full Size Multifunction Mono Gauge
278003432
$819.99
1650
Throttle Position Sensor
278002283
$119.99
1700
LH Switch Keypad
278003726
$126.99
1710
RH Switch Keypad
278003474
$126.99
1735
Terminal Dess One-Wire | Except Model Europe
515178840
$83.49
1740
Safety Nut (DESS Switch)
278002963
$3.28
1760
Hex. Screw 10-14 X 7/8”
211000023
$3.59
8010
Safety Lanyard Ass'y, RFID
278003400
$84.99
