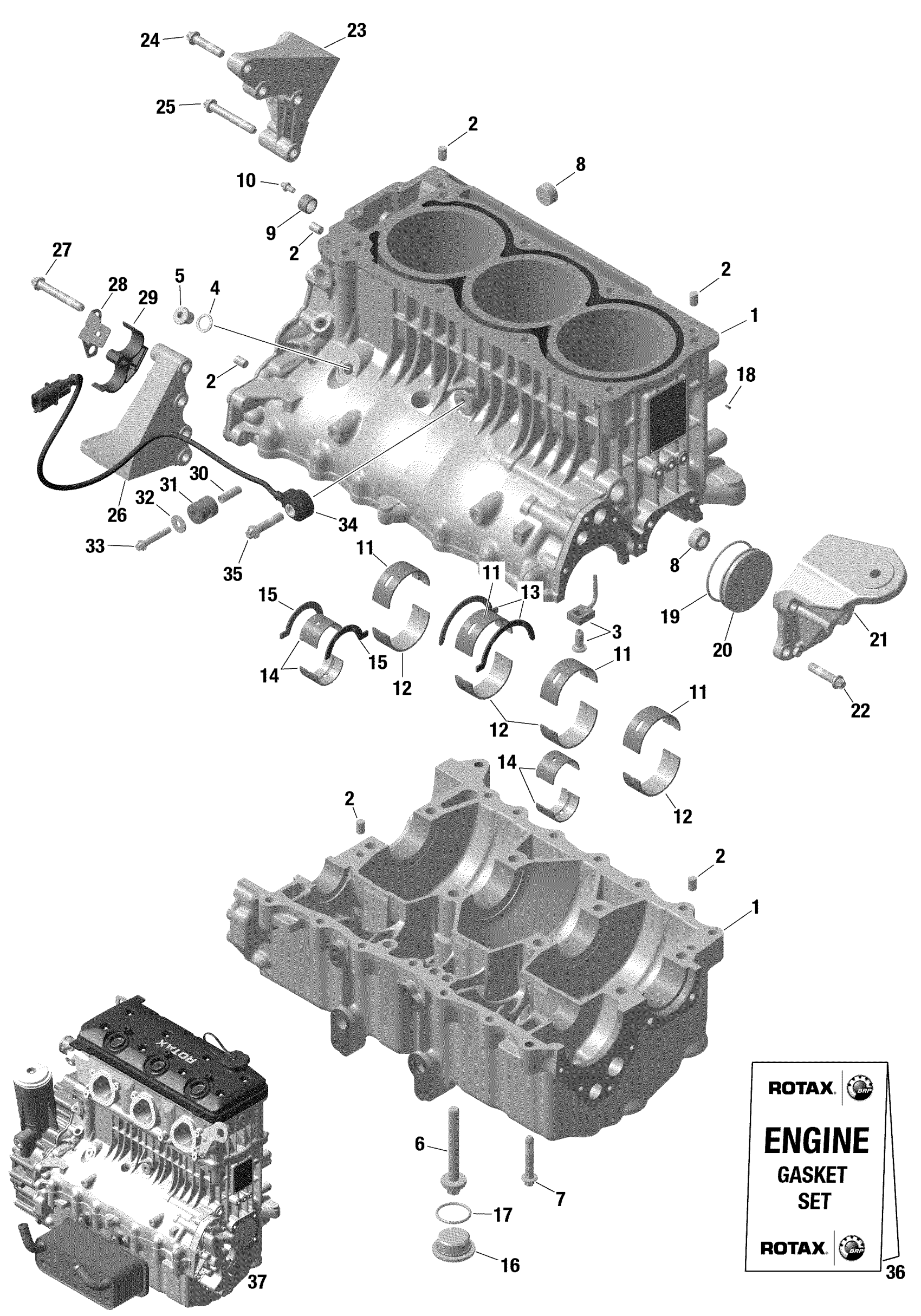

Sea-doo GTX 300, 2021 Rotax - Crankcase Diagram

#

Description
Price

1

Cylinder Block W Sleeve | Includes no. 1-10

420893514

$2.00

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spray Nozzle

420956772

$35.99

4

Aluminum Sealing Ring

420250016

$5.39

5

Plug Screw M12

420841923

$15.89

6

Torx Flange Screw M10 X 82

420641120

$7.41

7

Hex. Flange Screw M8 X 45

420641208

$7.51

8

Plug Screw M20 X 1.5

420641317

$14.22

9

Needle Bushing

420232482

$20.99

10

Oil Spraying Jet

420456431

$30.49

11

Plain Half-Bearing

420933456

$16.34

12

Plain Half-Bearing

420933466

$16.34

13

Half-Ring

420933475

$11.63

14

Plain Bearing Half

420933442

$19.99

15

Half-Ring

420933470

$7.41

16

Plug Screw M30 X 1.5

420641171

$20.99

17

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.33

18

Grooved Pin

420249073

$1.90

19

O-Ring

420430405

$14.28

20

Plug Cover

420660110

$7.41

21

Front Engine Bracket

420811794

$46.99

22

Torx Flange Screw M8 X 35

420641188

$7.41

23

Engine Bracket PTO, Exhaust

420811788

$75.99

24

Torx Flange Screw M8 X 35

420641188

$7.41

25

Torx Flange Screw M8 X 55

420641213

$7.41

26

Engine Bracket PTO, Exhaust

420811784

$63.99

27

Torx Flange Screw M8 X 55

420641213

$7.41

28

Retaining Plate

420851740

$20.99

29

Hose Bracket

420660290

$16.37

30

Spacer

420847971

$7.41

31

Rubber Bracket

420660090

$4.12

32

Flat Washer M6

420827968

$1.90

33

Torx Flange Screw M6 X 35

420641258

$3.38

34

Noise Sensor

420664031

$63.99

35

Torx Flange Screw M8 X 35

420641188

$7.41

36

Gasket Set

420889777

$487.49

37

Engine Long Block | Model Without iDF Gearbox This part replaces 420160313.

420160342

$5.00

37

REBUILD-BASIC LONG BLOCK 1603 - Call your local BRP dealership

421000721

Unavailable

37

Engine Long Block,1603 XHO

420160347

$5.00

37

Engine Long Block | Model Without iDF Gearbox This part replaces 420160313.

420160342

$5.00
