- SEA-DOO - GTX - FISH PRO Series
- 003 - GTX 300, 2019
10- Electrical System

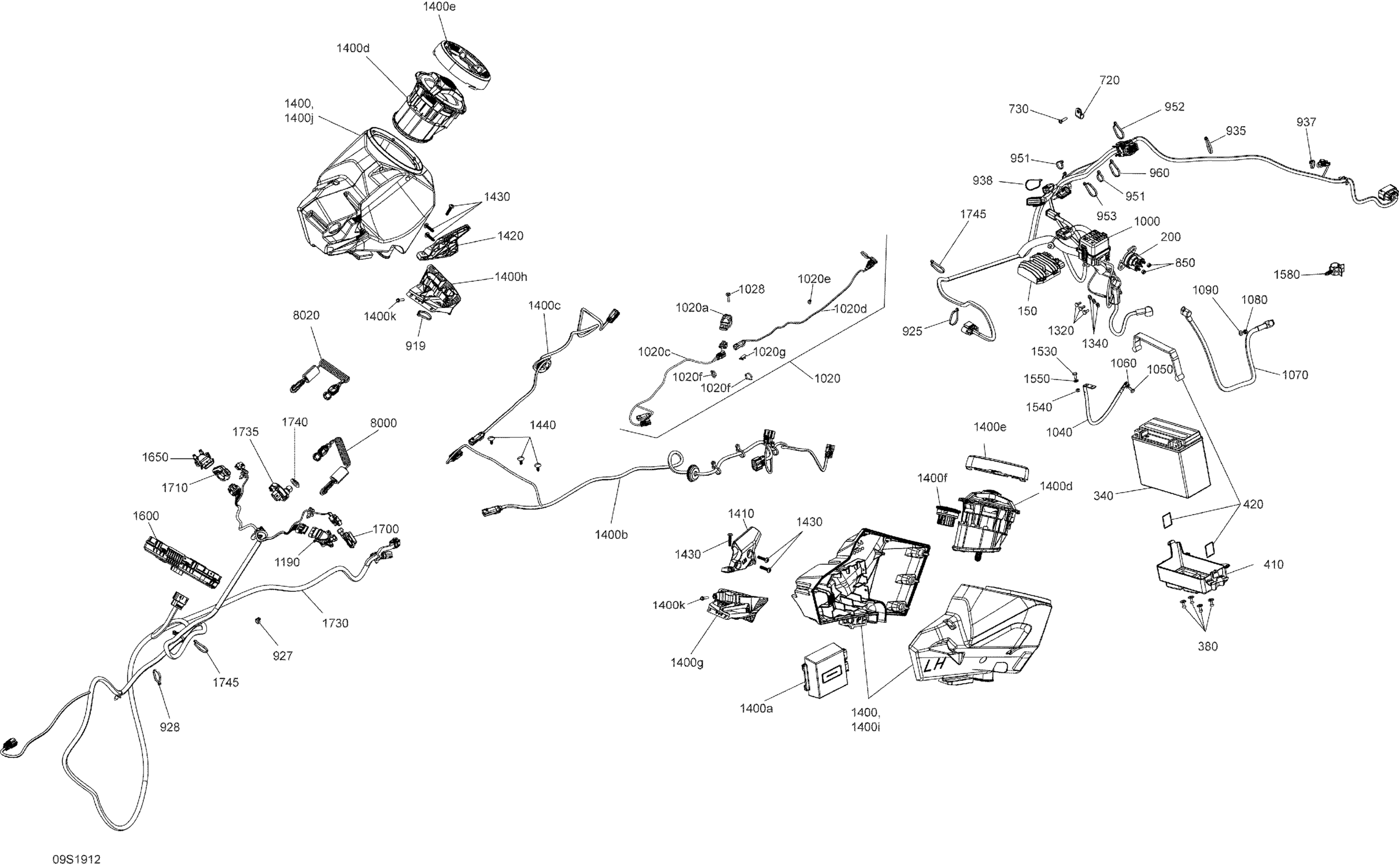

Sea-doo 003 - GTX 300, 2019 10- Electrical System Diagram
#
150
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
200
Starter Relay
278003012
$42.49
340
Battery 12 Volt 18AH
296000449
$92.28
340
Battery Ass'y, 18 Amperes | Brazil
515179099
Unavailable
340
Battery Ass'y, 18 Amperes | Australia
830201279
Unavailable
340
Battery Ass'y, 18 Amperes | Australia
830201282
Unavailable
340a
Battery Bolt Kit
250000282
$7.29
380
Pop Rivet 3/16"
293150123
$4.29
410
Battery Support
278003473
$28.99
420
Fuel Tank Strap
293850095
$19.99
720
Hose Clamp
293650257
$5.99
730
Flange Torx Screw K40 X 16
250000287
$2.11
850
Elastic Stop Nut M6, Brass
232561200
$4.23
919
Tie-Rap 180 mm
414115200
$0.11
925
Tie-Rap 180 mm
414115200
$0.11
927
Tie-Rap 180 mm
414115200
$0.11
928
Tie-Rap 180 mm
414115200
$0.11
935
Tie Rap, 533 mm
293750047
$2.09
937
Tie Wrap 142 mm
293750002
$1.25
938
Tie Wrap 368 mm
293750008
$1.04
951
Tie-Rap 180 mm
414115200
$0.11
952
Tie-Rap 180 mm
414115200
$0.11
953
Tie-Rap 180 mm
414115200
$0.11
960
Tie-Rap 180 mm
414115200
$0.11
1000
Wiring Harness Main | Package LTD
278003708
$319.99
1020
USB Charger Cable Ass'y | Includes 1020 to 1020b
295100710
$149.99
1020a
Not Available As Spare Part - Friction Washer
Unavailable
1020c
Not Available As Spare Part - Friction Washer
Unavailable
1020d
Not Available As Spare Part - Friction Washer
Unavailable
1020e
Tie-Rap 206 mm
293750027
$2.89
1020f
Tie-Rap 180 mm
414115200
$0.11
1020g
Clip Connector
515178223
$2.09
1028
Hexagonal Cap Screw M6 X35
250000399
$4.44
1040
Ground Battery Cable
278003451
$39.99
1050
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1060
Stainless Flat Washer M6
234061600
$0.33
1070
Starter Cable
278003369
$39.99
1080
Elastic Stop Nut M6, Brass
232561200
$4.23
1090
Stainless Flat Washer M6
234061600
$0.33
1190
LH Throttle Sensor
278002284
$119.99
1320
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1340
Stainless Flat Washer M6
234061600
$0.33
1400a
Amplifier
278003464
$465.99
1400b
Amplifier Harness
278003497
$83.99
1400c
Speaker Harness
278003462
$22.99
1400d
Speaker
278003463
$153.49
1400e
Speaker Grille
278003466
$16.34
1400f
Audio Control
278003465
$381.49
1400g
Deep Black, LH Protective Grille
278003616
$11.49
1400h
Deep Black, RH Protective Grille
278003617
$11.49
1400i
LH Speaker Enclosure Ass'y | Includes 1400k to 1400k4
278003735
$328.49
1400j
RH Speaker Enclosure Ass'y | Includes 1400m to 1400m4
278003736
$328.49
1400k
Hex. Screw 10-14 X 7/8”
211000023
$3.59
1410
LH Bracket
278003489
$5.79
1420
RH Bracket
278003518
$5.79
1430
Screw Torx M6.81 X 30
250001007
$2.54
1440
Black, Dart
293730011
$0.99
1440
Black, Dart
293730011
$0.99
1530
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1540
Elastic Stop Nut M6, Brass
232561200
$4.23
1550
Stainless Flat Washer M6
234061600
$0.33
1580
Retainer
278003564
$8.39
1600
Full Size Multifunction Mono Gauge
278003432
$819.99
1650
Throttle Position Sensor
278002283
$119.99
1700
LH Switch Keypad
278003726
$126.99
1710
RH Switch Keypad
278003474
$126.99
1730
Wiring Harness Handlebar
278003712
$319.99
1735
Terminal Dess One-Wire | Except Model Europe
515178840
$83.49
1740
Safety Nut (DESS Switch)
278002963
$3.28
1745
Tie-Rap 180 mm
414115200
$0.11
8000
Safety Lanyard Ass'y, Learning / RFID
278003401
$84.99
8020
Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j
278003402
$84.99
