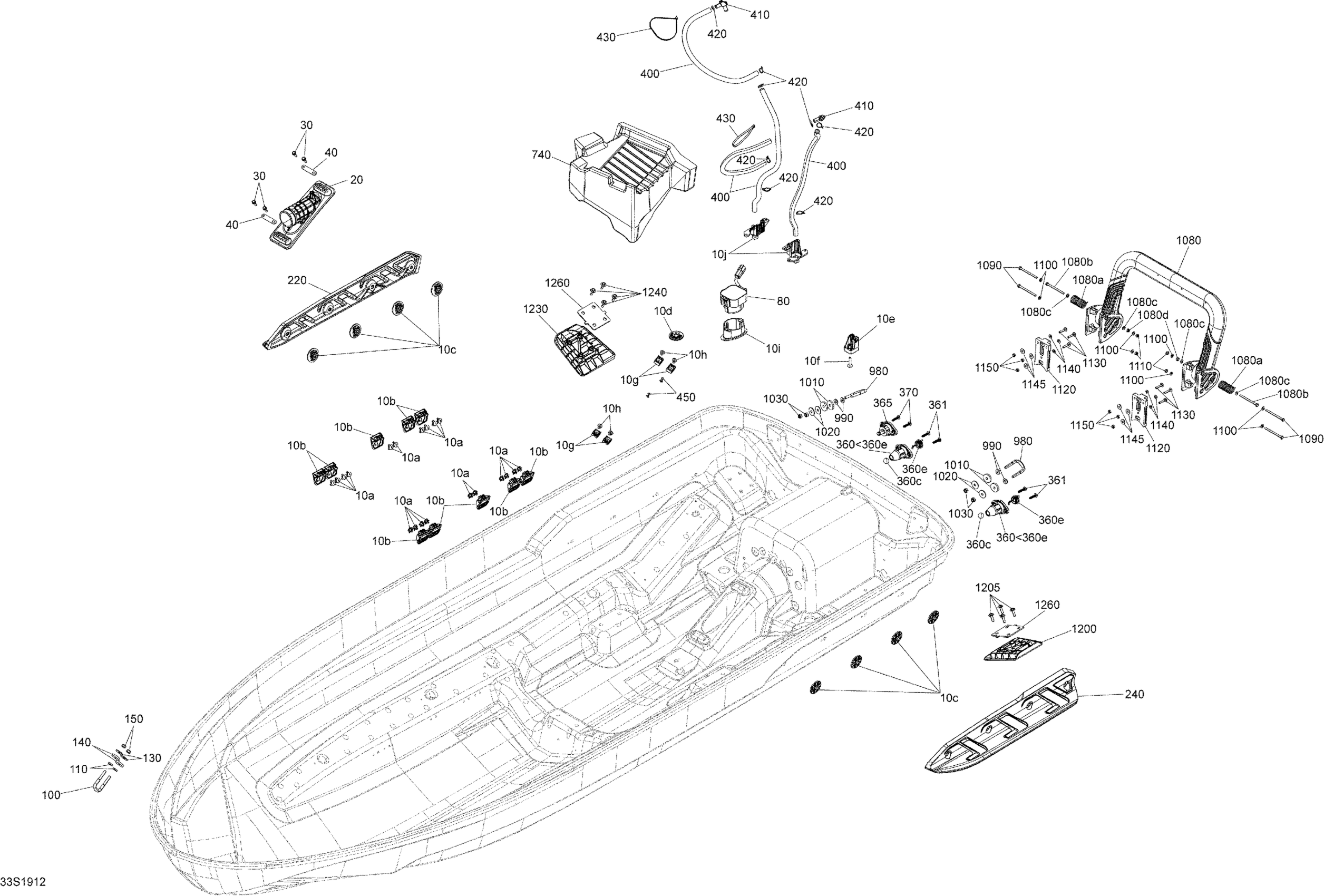

Sea-doo GTX 300, 2019 Hull Diagram

#

Description
Price

10a

Rivet | Model-T3

293150067

$2.63

10b

Strap Retaining

270000933

$6.28

10c

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

10d

Insert M8

293450371

$12.27

10e

Strap Anchor

270000988

$8.06

10f

Hexagonal Cap Screw M6 X35

250000399

$4.15

10g

Strap Anchor

270000854

$6.09

10h

Pop Rivet 3/16

293150186

$1.87

10i

Depth Sensor Base

278001994

$24.60

10j

Pump Support

269800956

$3.04

20

Through Hull Fitting

293450362

$32.81

30

Hex. Flange Screw M6.81 x 20

243162060

$3.79

40

Reinforcement

291004907

$2.13

80

Depth Sensor

278002954

$373.99

100

U-Clamp

292000933

$37.28

110

Flat Washer M8.5 x 18

293050001

$1.48

130

Flat Washer 8 mm, Stainless

250200175

$1.48

140

Rubber Washer

293830037

$2.68

150

Hex. Elastic Nut M8 Brass

232581200

$1.48

220

RH Sponson

292001953

$54.99

240

LH Sponson

292001954

$65.99

360<360e

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$12.63

360c

Floating Ball

293830080

$6.39

360e

Plug Ass'y | Includes 300f to 300f2

292002022

$12.79

361

Screw Torx M6.81 X 30

250001007

$1.85

365

Drain Neck Ass'y

292002153

$10.67

370

Screw Torx M6.81 X 30

250001007

$1.85

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$6.82

410

Fitting Elbow 90°

293710152

$17.13

420

Tie Wrap 94 mm | 4X4

293750001

$0.96

430

Tie Wrap 368 mm

293750008

$0.97

450

Avdel Rivet 3/16"

293150037

$0.54

740

Cooler Float

292002028

$32.81

980

U-Clamp

292000933

$37.28

990

Flat Washer M8.5 x 18

293050001

$1.48

1010

Rubber Washer

293830037

$2.68

1020

Flat Washer 8 mm, Stainless

250200175

$1.48

1030

Hex. Elastic Nut M8 Brass

232581200

$1.48

1080<1080d

Ladder Ass'y | Includes 1100a to 1100a4

295100869

$246.24

1080a

Spring

292002107

$24.60

1080b

Hex. Screw M6 x 80

207068060

$2.28

1080c

Stainless Flat Washer M6

234061600

$0.28

1080d

Hex. Elastic Stop Nut M6

232561600

$1.06

1090

Hex. Screw M6 x 80

207068060

$2.28

1100

Stainless Flat Washer M6

234061600

$0.28

1110

Elastic Stop Nut M6, Brass

232561200

$4.03

1120

Ladder Attachment

292002113

$7.57

1130

Truss Cone Torx Screw M6 X 30

250000924

$7.06

1140

Stainless Flat Washer M6

234061600

$0.28

1145

Flat Washer M6, Stainless

234062600

$0.73

1150

Elastic Stop Nut M6, Brass

232561200

$4.03

1200

LH Trim Tab

292002102

$16.39

1205

Hexagonal Cap Screw M6 X 25

250000978

$4.15

1230

RH Trim Tab

292002103

$16.39

1240

Hexagonal Cap Screw M6 X 25

250000978

$4.15

1260

Gasket

277002171

$4.00
