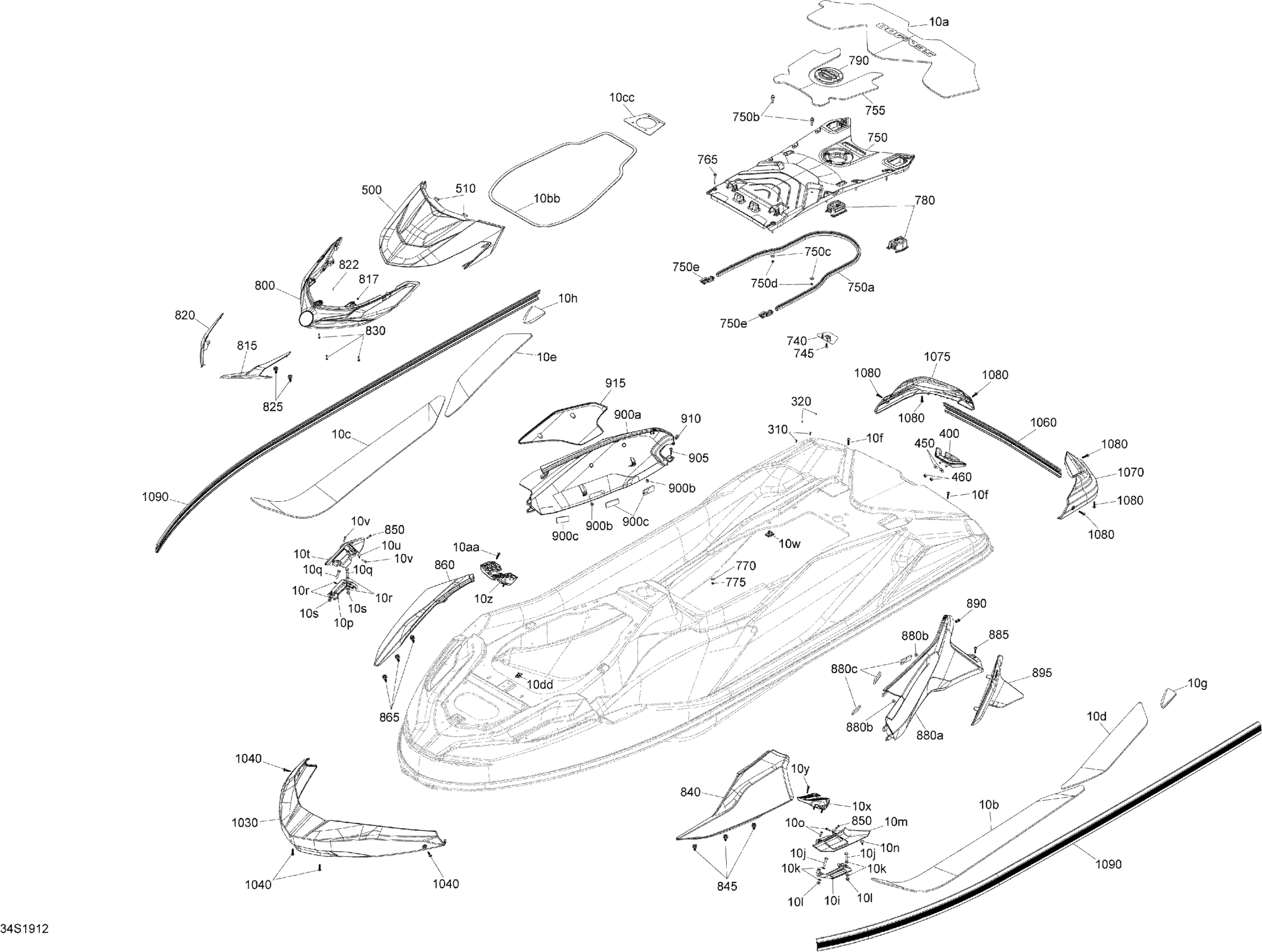

Sea-doo GTX 300, 2019 Body Diagram

#

Description
Price

10a

Rear Plat-Form Carpet | Package LTD

291005075

$132.81

10b

Anti Slip Mat FRT LH

291005044

$38.78

10c

Anti Slip Mat FRT RH

291005045

$38.78

10d

LH Rear Carpet

291004514

$15.64

10e

RH Rear Carpet

291004515

$15.64

10f

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

10g

LH Anti-Skid Pad

291004516

$5.22

10h

RH Anti-Skid Pad

291004517

$5.22

10i

LH Cleat

291004559

$7.31

10j

Hex. Screw M8 X 35

207083560

$1.40

10k

Stainless, Flat Washer 8 mm

234081600

$0.52

10l

Hex. Elastic Nut M8 Brass

232581200

$1.48

10m

LH Shell Cleat

291004661

$8.21

10n

Black, Dart

293730011

$0.91

10o

Hex. Screw 10-14 X 7/8”

211000023

$3.34

10p

RH Cleat

291004720

$7.31

10q

Hex. Screw M8 X 35

207083560

$1.40

10r

Stainless, Flat Washer 8 mm

234081600

$0.52

10s

Hex. Elastic Nut M8 Brass

232581200

$1.48

10t

RH Shell Cleat

291004719

$8.21

10u

Black, Dart

293730011

$0.91

10v

Hex. Screw 10-14 X 7/8”

211000023

$3.34

10w

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.15

10x

LH Support

291004714

$8.21

10y

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

10z

RH Support

291004715

$9.03

10aa

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

10bb

Gasket

293250401

$10.10

10cc

Gasket

293250451

$22.36

10dd

Tie-Rap Mount

293750025

$0.99

310

Rivet 1/8"

293150016

$0.33

320

Black, Snap Cap

293000014

$0.97

400

Cleat

291004597

$22.36

450

Flat Washer 8 mm, Stainless

234082600

$2.27

460

Hex. Elastic Nut M8 Brass

232581200

$1.48

500

Deep Black, Hood

291005579

$87.28

510

Hex. Screw 10-14 X 7/8”

211000023

$3.34

740

Hose Protector

291004941

$4.22

745

Black, Dart

293730011

$0.91

750

Access Cover Ass'y | Includes 750 to 750f

291005189

$197.73

750a

Was 293200062 Seal

219704366

$70.87

750b

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

Unavailable

750c

Flat Washer M6, Stainless

234062600

$0.73

750d

Elastic Stop Nut M6, Brass

232561200

$4.03

750e

Seal

291004717

$10.37

755

Cover B-421 | Package LTD

291004603

$66.39

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

770

Flat Washer M6, Stainless

234062600

$0.73

775

Elastic Stop Nut M6, Brass

232561200

$4.03

780

Cargo Base

291005157

Unavailable

790

Access Cap Ass'y

291004481

$8.21

800

Front Hood Grille

291005915

$32.06

815

Chromed, Trim LH | Model Liquid Metal

291004491

$60.42

817

Push Nut | Not shown

211100002

$0.96

820

Chromed, Trim RH | Model Liquid Metal

291004492

Unavailable

822

Push Nut | Not shown

211100002

$0.96

825

Dard

293730071

$1.03

830

Hex. Screw 10-14 X 7/8”

211000023

$3.34

840

Liquid Metal, LH Front Body Panel

291004553

$207.43

845

Dard

293730071

$1.03

850

Hex. Screw 10-14 X 7/8”

211000023

$3.34

860

Liquid Metal, RH Front Body Panel

291004554

$207.43

865

Dard

293730071

$1.03

880a

Liquid Metal, Body Panel Central LH

291004555

$244.75

880b

Rubber Bumper

293830005

$6.12

880c

Stopper

278003618

$0.70

885

Screw Torx M6.81 X 30

250001007

$1.85

890

Tuflok Plastic Rivet

293150230

$1.39

895

Knee Pads LH B-286 Ass'y | Package LTD

291004796

$101.46

900a

Liquid Metal, RH Central Body Panel

291004557

$244.75

900b

Rubber Bumper

293830005

$6.12

900c

Stopper

278003618

$0.70

905

Screw Torx M6.81 X 30

250001007

$1.85

910

Tuflok Plastic Rivet

293150230

$1.39

915

Knee Pads RH B-418 Ass'y | Package LTD

291004803

$101.46

1030

Front Bumper

291004452

$71.61

1040

Screw Torx M6.81 X 30

250001007

$1.85

1060

Bumper 2775±25mm

291004468

$129.82

1070

LH Rear Bumper

291004465

$27.58

1075

RH Rear Bumper

291004466

$27.58

1080

Screw Torx M6.81 X 30

250001007

$1.85

1090

Bumper 2775±25mm

291004468

$129.82
