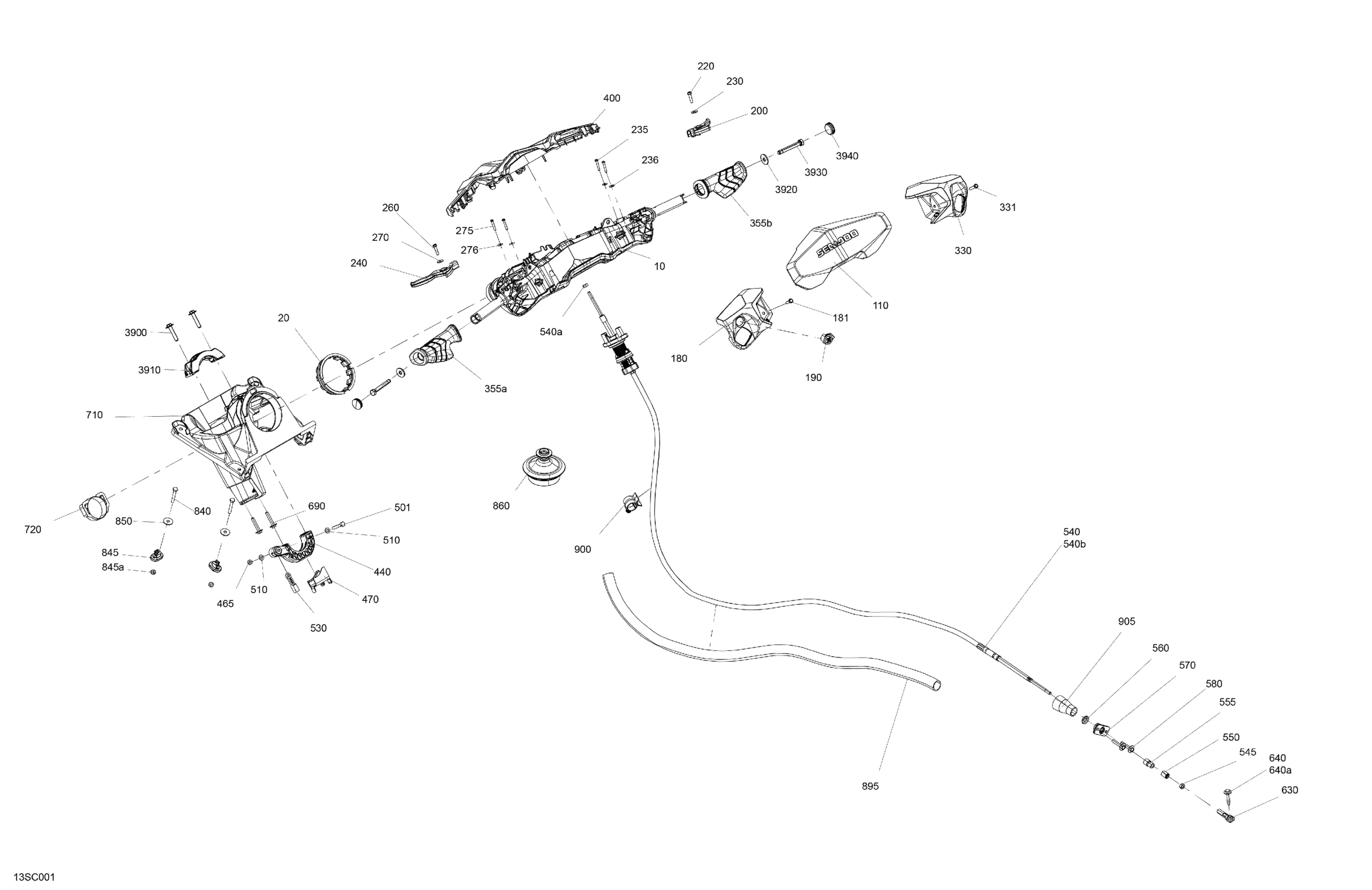

Sea-doo GTI SE 130, 2023 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002134

$209.99

20

Wear Ring

277001874

$12.17

110

Deep Black, Handlebar Trim

277002239

$17.49

180

LH Cover

277002233

$18.99

181

Hex. Screw 10-14 X 7/8”

211000023

$3.59

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Hex. Screw 10-14 X 7/8”

211000023

$3.59

230

Flat Washer 5 mm, Stainless

234052600

$0.77

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Hex. Screw 10-14 X 7/8”

211000023

$3.59

270

Flat Washer 5 mm, Stainless

234052600

$0.77

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

330

RH Cover

277002235

$16.49

331

Hex. Screw 10-14 X 7/8”

211000023

$3.59

355a

Deep Black, LH Handle Grip

277001958

$20.99

355b

Deep Black, RH Handle Grip

277001946

$20.99

400

Steering Cover

277001985

$68.99

440

Steering Arm

277002319

$9.19

465

Nut Flange Elastic M6

233261200

$0.99

470

Spacer

277001654

$15.99

501

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540

Steering Cable | Includes 540 to 540b

277002167

$121.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

545

Hex. Nut 1/4"-28

211100056

$0.69

550

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

640a

Hex Screw SEMS M6X35, SS

250000969

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710

Steering Column Support

277002168

$51.99

720

Wear Ring

277002318

$15.99

840

Hex. Screw M6 X 40

207164060

$3.38

845

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

845a

Elastic Stop Nut M6, Brass

232561200

$4.23

850

Flat Washer M6.6 X 22

250200022

$2.72

860

Cable Boot

293720116

$4.49

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

900

Cable Retainer

275500527

$2.68

905

Rope Guide

277002150

$0.93

3900

Hexagonal Cap Screw M6 X35

250000399

$4.44

3910

C Clamp

277002085

$9.19

3920

Flat Washer M6, Stainless

234062600

$0.77

3930

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

3940

Black, Cap

277000203

$9.39
