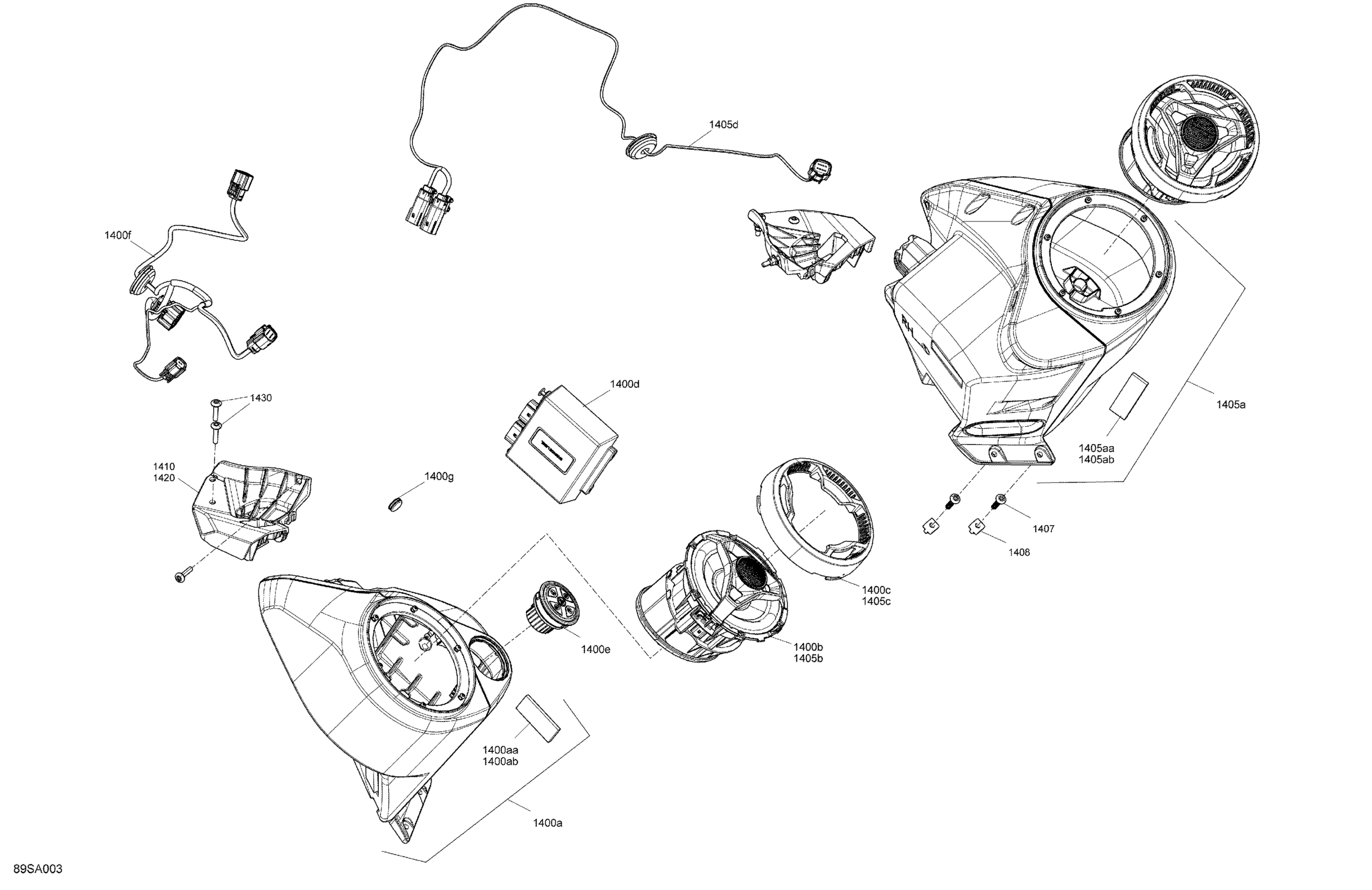

Sea-doo 003 - GTI SE 130, 2021 08- Electric - Audio System Diagram

Description

Price

1400a

LH Speaker Enclosure | Includes 1400a1 to 1400a1d

278003876

$328.49

1400aa

Stopper

278003860

$0.76

1400ab

Stopper

278003860

$0.76

1400b

Speaker

278003463

$153.49

1400c

Speaker Grille

278003466

$16.34

1400d

Amplifier

278003464

$465.99

1400e

Audio Control

278003465

$381.49

1400f

Amplifier & LH Speaker Harness

278003758

$85.99

1400g

Black, Cap

277000203

$9.39

1405a

RH Speaker Enclosure | Includes 1405a to 1405a4

278003877

$328.49

1405aa

Stopper

278003860

$0.76

1405ab

Stopper

278003860

$0.76

1405b

Speaker

278003463

$153.49

1405c

Speaker Grille

278003466

$16.34

1405d

RH Harness Speaker | Includes 1405d to 1405d2

278003759

$20.99

1405da

Housing 6 Circuits

278003866

$13.75

1407

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

1408

Insert

291003793

$3.56

1410

LH Bracket

278003766

$13.49

1420

RH Bracket

278003768

$13.49

1430

Black, Dart

293730006

$0.99

1430

Screw-Torx Truss Cone Head M6X25

250001116

$4.12
