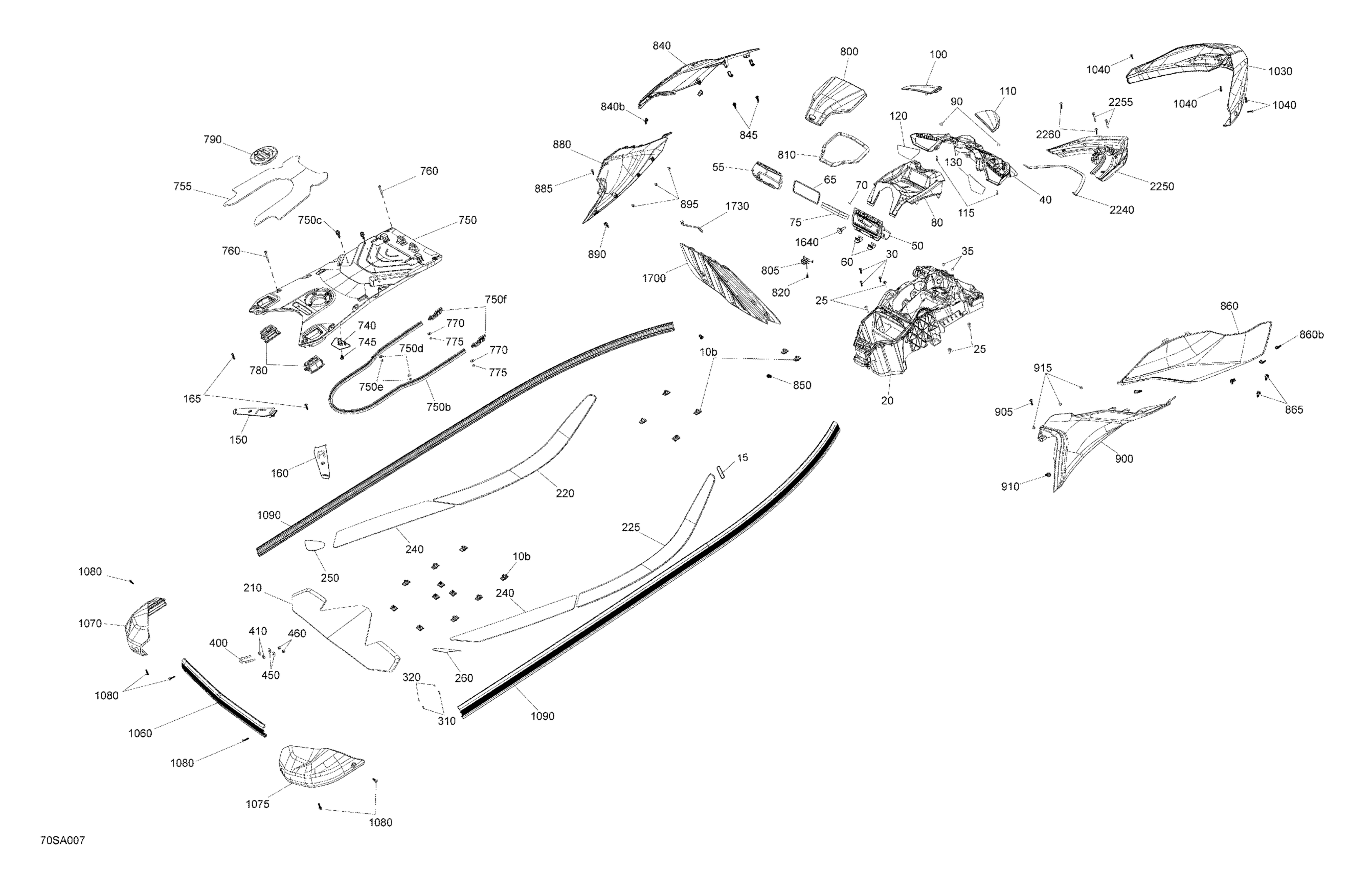

Sea-doo GTI SE 130, 2021 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

Elastic Stop Nut M6, Brass

232561200

$3.51

Decal

291005381

$0.82

Console

291005887

$144.92

Hex Screw SEMS M6X35, SS

250000969

$1.74

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Rubber Bumper

293830005

$5.33

Mirror Support

291005178

$53.27

Deep Black, Storage Bin

291005122

$18.82

Watertight Door

264000134

$10.21

Clip

269501718

$12.97

Gasket

293250412

$12.60

Vent Membrane

264000137

$9.04

Sealed Compartment Foam

264000135

$9.22

Black, Console Panel

291005085

$44.82

Rubber Bumper

293830005

$5.33

Deep Black, LH Mirror Cover

269502427

$43.52

Deep Black, RH Mirror Cover

269502428

$43.52

Hex. Screw 10-14 X 7/8”

211000023

$2.91

LH Mirror Glass

269502274

$72.12

RH Mirror Glass

269502276

$72.12

LH Spacer

291005127

$14.92

RH Spacer

291005182

$14.92

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Anti Slip Mat Deck Rear

291005258

$57.82

LH Front Anti Slip Mat Deck

291005171

$22.72

LH Front Anti Slip Mat Deck

291005289

$22.72

RH Front Anti Slip Mat Deck

291005172

$22.72

RH Front Anti Slip Mat Deck

291005290

$22.72

LH/RH Rear Anti Slip Mat Side

291005173

$16.22

LH Rear Anti Slip Mar Footrest

291005325

$3.51

RH Rear Anti Slip Mar Footrest

291005326

$3.51

Rivet 1/8"

293150016

$0.29

Black, Snap Cap

293000014

$0.85

U-Clamp

292000933

$32.47

Flat Washer M8.5 x 18

293050001

$1.29

Flat Washer 8 mm, Stainless

234082600

$1.98

Hex. Elastic Nut M8 Brass

232581200

$1.29

Hose Protector

291004941

$4.22

Black, Dart

293730011

$0.79

Access Cover Ass'y | Includes 750 to 750f

291005189

$172.22

Was 293200062 Seal

219704366

$61.72

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Seal

291004717

$9.04

Black, Mat Cover

291004668

$33.12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Linq Bases Kit

295100858

$21.42

Access Cap Ass'y

291004481

$7.15

Deep Black, Glove Box Cover

291005888

$52.62

Glove Box Latch

264000133

$15.57

Gasket

293250498

$24.02

Screw K40 X 10

250001119

$1.64

LH Front Body Panel Ass'y | Includes 840 to 840b

291005531

$142.97

Neoprene Stopper

293250546

$0.09

Dard

293730071

$0.90

Tuflok Plastic Rivet

293150230

$1.21

RH Front Body Panel Ass'y | Includes 860 to 860b

291005532

$142.97

Neoprene Stopper

293250546

$0.09

Dard

293730071

$0.90

Stone Grey, LH Center Body Panel | Model Metalic Blue Long Beach

291005298

$164.15

Neon Yellow, LH Center Body Panel | Model Neon Yellow

291005299

$164.15

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Dard

293730071

$0.90

Rubber Bumper

293830005

$5.33

Stone Grey, RH Center Body Panel | Model Metalic Blue Long Beach

291005294

$142.97

Neon Yellow, RH Center Body Panel | Model Neon Yellow

291005295

$142.97

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Dard

293730071

$0.90

Rubber Bumper

293830005

$5.33

Bumper Front

291005082

$84.47

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Lateral Bumper

291005510

$45.47

LH Rear Bumper Corner

291005083

$16.22

RH Rear Bumper Corner

291005084

$16.22

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Lateral Bumper

291005510

$45.47

USB Plug

269502324

$2.39

Separation Panel Ass'y

291005587

$81.87

Holding Strap

269502111

$14.27

Gasket, Neoprene 2000Mm Long

219704476

$12.64

Body Deflector

291005108

$44.82

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87
