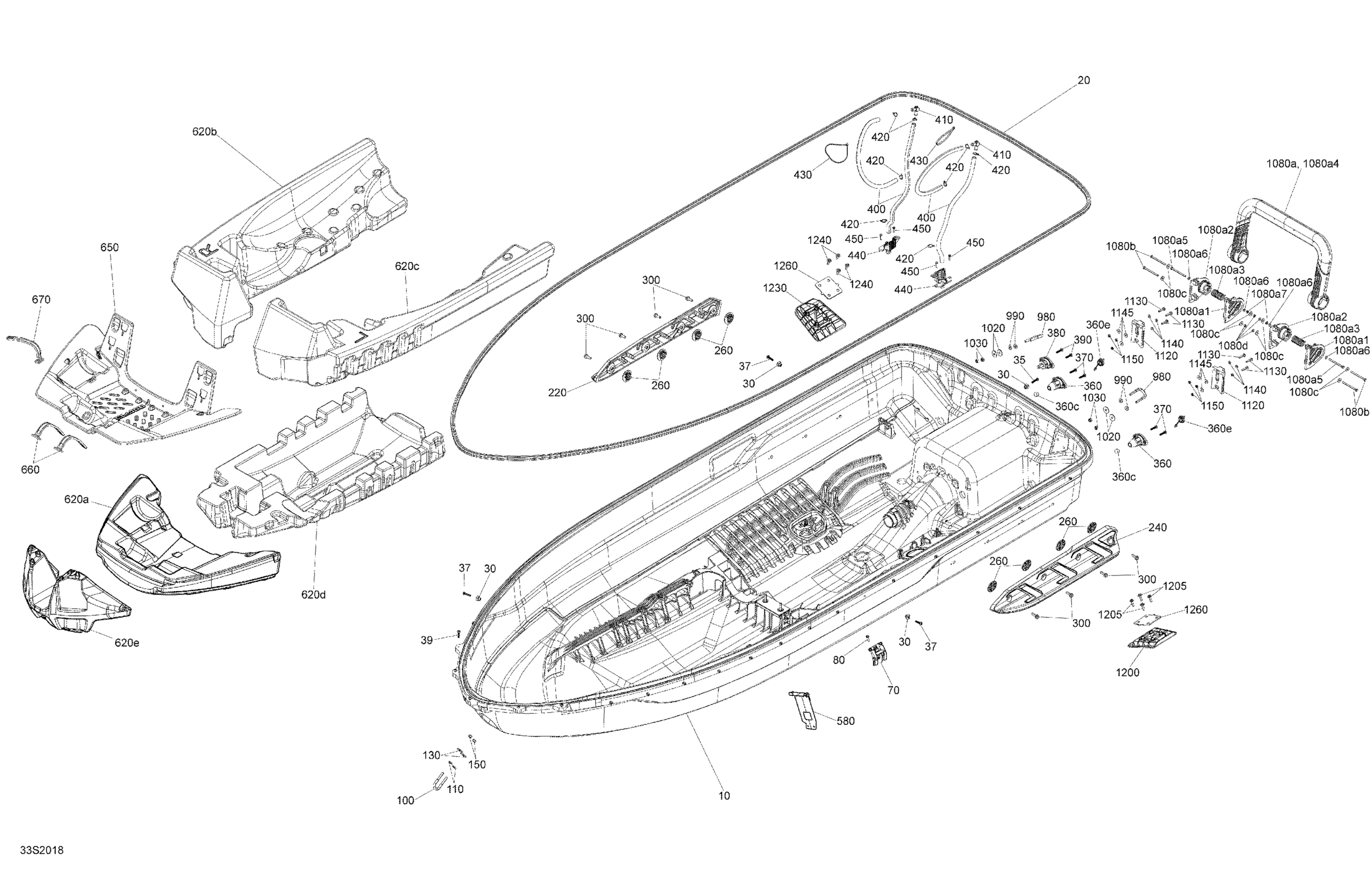

Sea-doo GTI SE 130, 2020 Hull Diagram

#

Description
Price

10

Hull

292002265

$2,134.30

20

Gasket

292002242

$49.22

30

Insert

291003793

$2.44

35

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

37

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

39

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

70

Battery Rest

292002383

Unavailable

80

Hex. Flange Screw M6.81 x 20

243162060

$3.30

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

130

Flat Washer 8 mm, Stainless

250200175

$1.29

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220

RH Sponson

292001953

$53.27

240

LH Sponson

292001954

$63.67

260

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

300

Hex. Flange Screw M8 X 25

207682534

$1.03

360

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

Unavailable

360c

Floating Ball

293830080

$5.56

360e

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

370

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

380

Drain Neck Ass'y

292002153

$9.30

390

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tie Wrap 368 mm

293750008

$0.85

440

Pump Support

269800956

$2.65

450

Hex. Screw 10-14 X 7/8”

211000023

$2.91

580

Battery Support

292002434

$12.75

620a

Float Hull Front

292002399

$94.00

620b

RH Center Float Hull

292002229

$94.00

620c

LH Center Float Hull

292002230

$94.00

620d

Float Hull Center

292002298

$94.00

620e

Float Hull Front Upper

292002405

$35.79

650

Trunk Shield

292001868

$39.52

660

Strap

269502417

$14.27

670

Strap

269502417

$14.27

900

Panel | Includes 900 to 900a

292002397

$49.22

980

U-Clamp

292000933

$32.47

990

Flat Washer M8.5 x 18

293050001

$1.29

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29

1080a

Ladder Ass'y | Includes 1100a to 1100a4

295100869

$214.47

1080a1

Not Available As Spare Part - Friction Washer

Unavailable

1080a2

Not Available As Spare Part - Friction Washer

Unavailable

1080a3

Spring

292002107

$21.42

1080a4

Not Available As Spare Part - Friction Washer

Unavailable

1080a5

Hex. Screw M6 x 80

207068060

$1.99

1080a6

Stainless Flat Washer M6

234061600

$0.25

1080a7

Hex. Elastic Stop Nut M6

232561600

$0.92

1080b

Hex. Screw M6 x 80

207068060

$1.99

1080c

Stainless Flat Washer M6

234061600

$0.25

1080d

Hex. Elastic Stop Nut M6

232561600

$0.92

1120

Ladder Attachment

292002113

$7.57

1130

Truss Cone Torx Screw M6 X 30

250000924

$6.15

1140

Stainless Flat Washer M6

234061600

$0.25

1145

Flat Washer M6, Stainless

234062600

$0.64

1150

Elastic Stop Nut M6, Brass

232561200

$3.51

1200

LH Trim Tab

292002102

$14.27

1205

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1230

RH Trim Tab

292002103

$14.27

1240

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1260

Gasket

277002171

$3.48
