Partiron

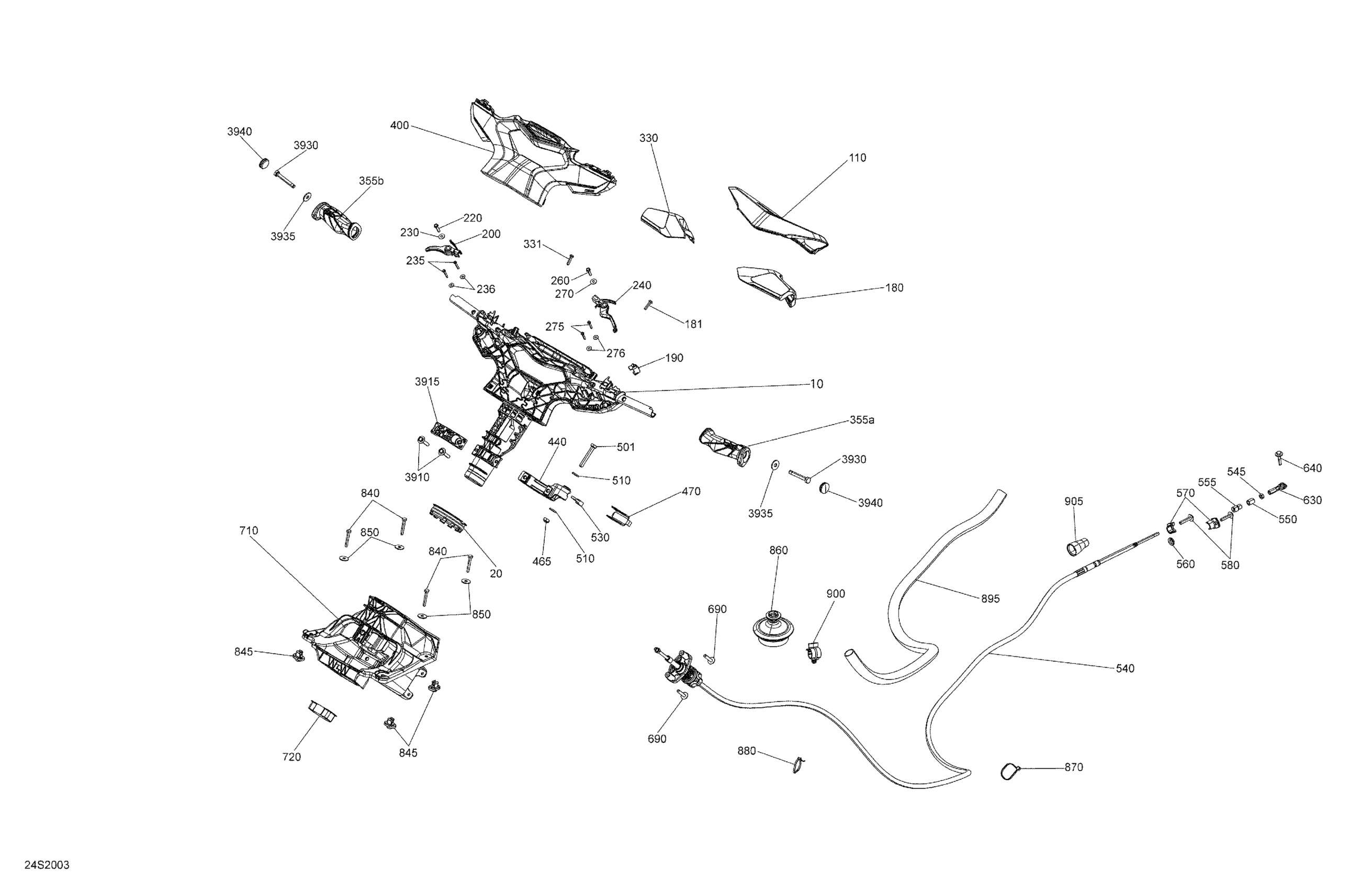

Sea-doo GTI SE 130, 2020 Steering Diagram

#

Description
Price

10

Steering Column

277002134

$163.12

20

Wear Ring

277001874

$9.74

110

Stone Grey, Handlebar Trim

277002240

$12.47

110

Orange Crush, Steering Pad | Model Orange Crush

277002142

$41.57

180

LH Cover

277002233

$13.62

181

Hex. Screw 10-14 X 7/8”

211000023

$2.91

190

Red Button Switch

277002327

$7.46

200

Hand Lever Accelerator

277002138

$30.52

220

Hex. Screw 10-14 X 7/8”

211000023

$2.91

230

Flat Washer 5 mm, Stainless

234052600

$0.64

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

260

Hex. Screw 10-14 X 7/8”

211000023

$2.91

270

Flat Washer 5 mm, Stainless

234052600

$0.64

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

330

RH Cover

277002235

$12.60

331

Hex. Screw 10-14 X 7/8”

211000023

$2.91

355a

Deep Black, LH Handle Grip

277001958

$15.57

355b

Deep Black, RH Handle Grip

277001946

$15.57

400

Steering Cover

277001985

$53.27

440

Steering Arm

277002106

$7.19

465

Elastic Stop Nut M6, Brass

232561200

$3.51

470

Spacer

277001654

$11.40

501

Hex. Screw M6 X 40

207064060

$1.40

510

Stainless Flat Washer M6

234061600

$0.25

540

Steering Cable | Includes 540 to 540b

277002146

$110.42

545

Hex. Nut 1/4"-28

211100056

$0.56

550

Wiper Rod

277001582

$8.83

555

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Hexagonal Cap Screw M6 X35

250000399

$3.61

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

690

Hexagonal Cap Screw M6 X35

250000399

$3.61

710

Steering Column Support

277002105

$40.27

720

Wear Ring

277002318

$12.43

840

Hex. Screw M6 X 40

207164060

$2.74

845

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

850

Flat Washer M6.6 X 22

250200022

$1.87

860

Cable Boot

293720116

$4.49

870

Tie Wrap 142 mm

293750002

$0.88

880

Tie-Rap 180 mm

414115200

$0.09

895

Corrugated Sheath 22MM - 1250MM

276000520

$21.42

900

Cable Retainer

275500527

$2.68

3910

Hexagonal Cap Screw M6 X35

250000399

$3.61

3915

C Clamp

277002085

$7.19

3930

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.51

3935

Flat Washer M6, Stainless

234062600

$0.64

3940

Black, Cap

277000203

Unavailable
