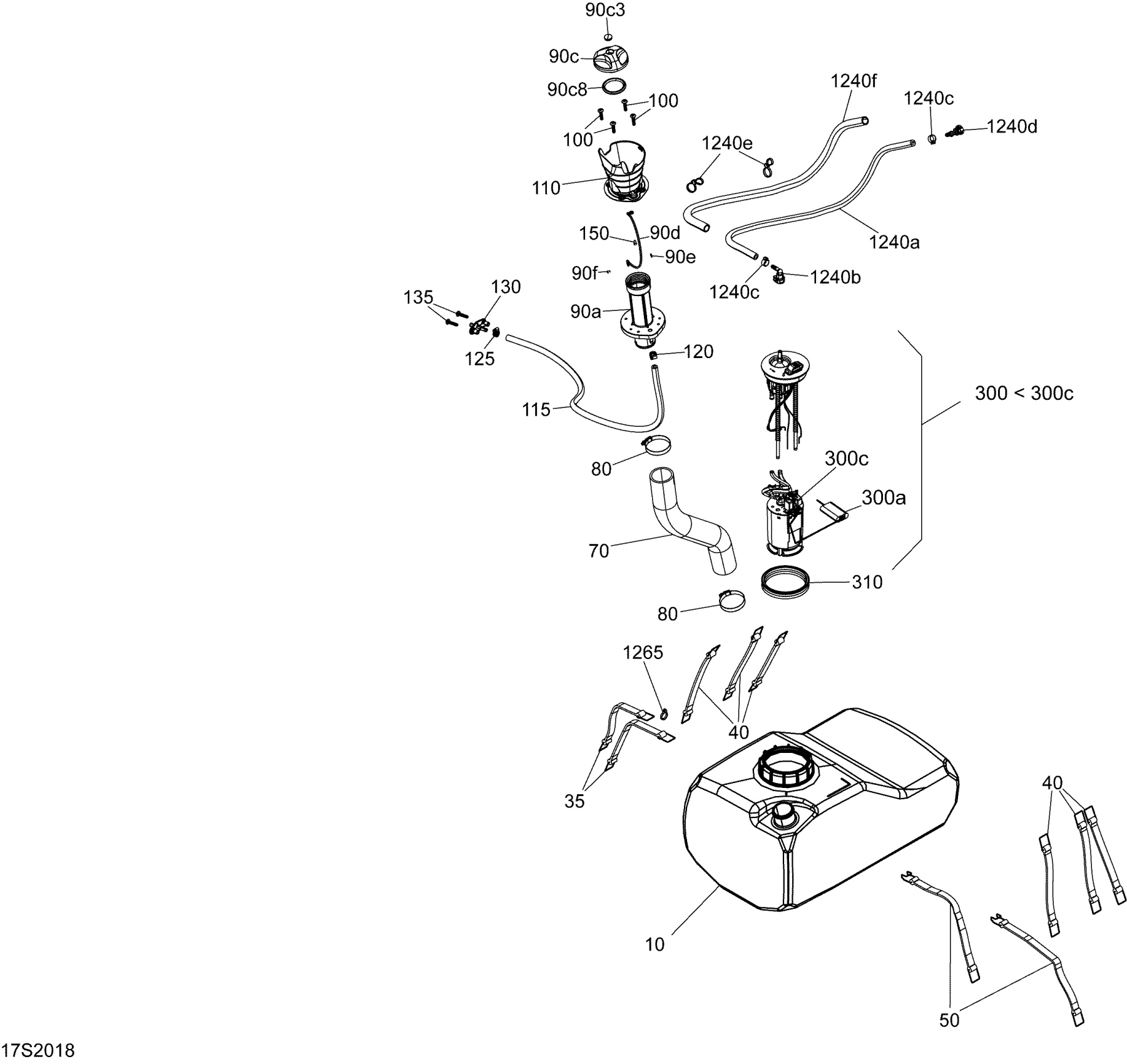

Sea-doo GTI SE 130, 2020 Fuel System Diagram

#

Description
Price

10

Fuel Tank

275500962

$279.47

35

Holding Strap

293850112

$14.27

40

Holding Strap

293850112

$14.27

50

Holding Strap

293850134

$16.87

70

Hose, Filler

275501019

$79.82

80

Norma Clamp

293650081

$9.87

90a

Filler Neck

275501005

$31.82

90c

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$48.07

90c3

Black, Snap Cap

293000034

$7.48

90c8

Gasket

293250417

$3.17

90d

Fuel Cap Chain

275500972

$15.64

90e

Flat Washer M3, Stainless

234032600

$0.52

90f

Pop Rivet 1/8"

390407900

$1.17

100

Screw Torx M6.81 X 30

250001007

$1.61

110

Gas, Deflector

293250480

$8.39

115

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

120

Tridon Gear Clamp

293650171

$2.46

125

Tridon Gear Clamp

293650171

$2.46

130

Fitting Ass'y

275501011

Unavailable

135

Screw Torx M6.81 X 30

250001007

$1.61

150

Screw K40 X 10

241140060

$1.25

300<300c

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$371.77

300a

Sensor Lever

275500780

$176.12

300c

Fuel Filter

270600113

$27.27

310

Gasket

293250173

$15.57

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

1240b

Quick Disconnect

275500921

$12.61

1240c

Crimp Clamp

293650053

$2.42

1240d

Elbow Fitting 90°

293710105

$10.58

1240e

Tie Rap 300mm

293750053

$1.99

1240f

Tubing 16 Mm 1000Mm Long

219704408

$6.23

1240f

Tubing 16 Mm 1000Mm Long

219704408

$6.23

1265

Tie-Rap 180 mm

414115200

$0.09
