01- Cooling System

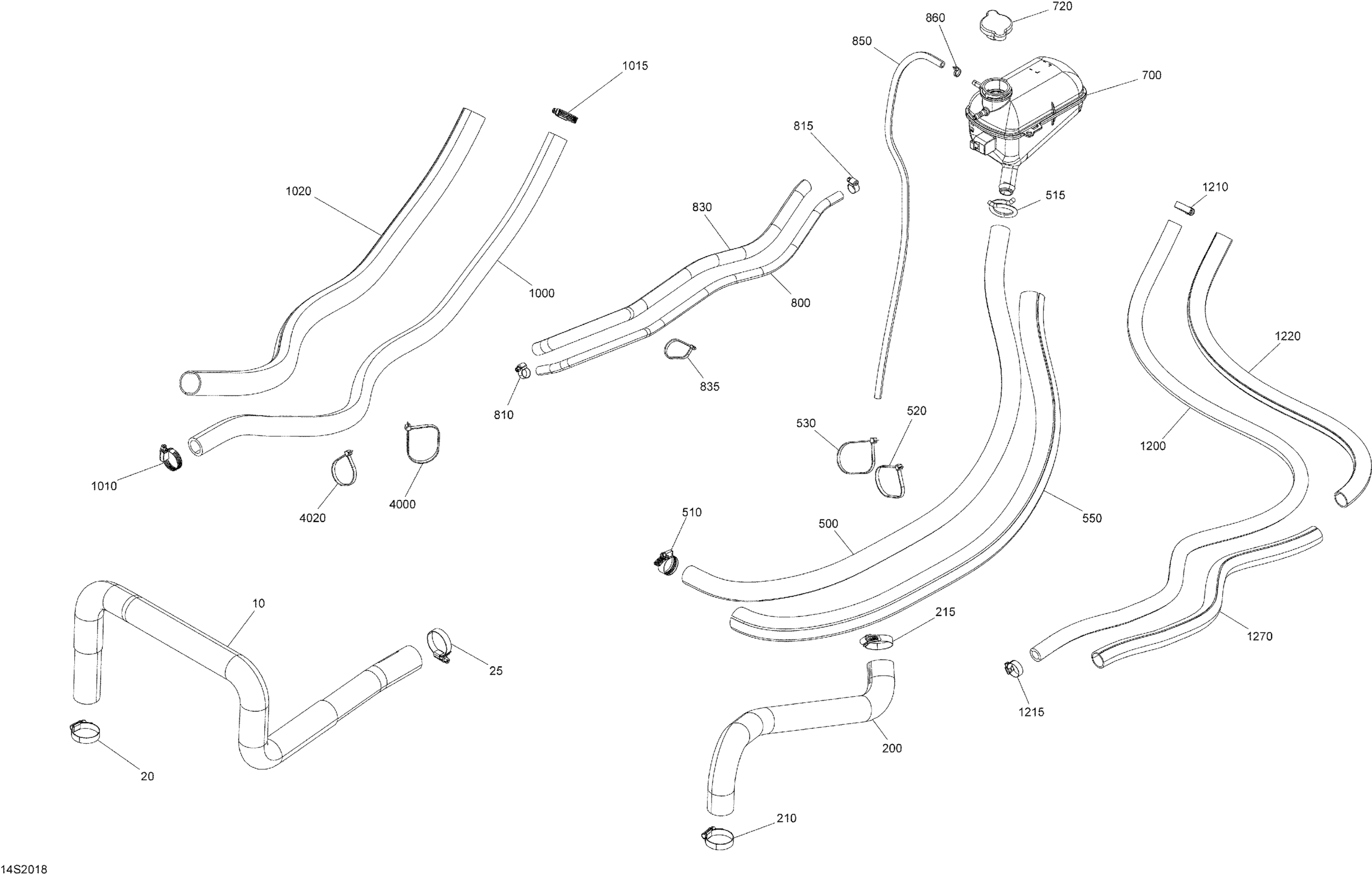

Sea-doo 003 - GTI SE 130, 2020 01- Cooling System Diagram
#
Description
Price
10
Hose Riding Plate LH
276000462
$66.49
20
Norma Clamp
293650245
$14.99
25
Norma Clamp
293650245
$14.99
200
Hose Riding Plate RH
276000487
$52.99
210
Norma Clamp
293650245
$14.99
215
Norma Clamp
293650245
$14.99
500
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
510
Tridon Gear Clamp
293650019
$5.82
515
Spring Clamp
293650115
$3.09
520
Tie Wrap 94 mm | 4X4
293750001
$1.03
530
Tie Wrap 94 mm | 4X4
293750001
$1.03
550
Tubing 25 MM 1000MM Long
219704402
$15.99
700
Coolant Tank
276000419
$119.99
720
Pressure Cap | Includes 720 to 720a
276000100
$25.99
800
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
810
Tridon Gear Clamp
293650170
$1.99
815
Tridon Gear Clamp
293650170
$1.99
830
Was 409901800 Tubing (13 mm)
219704400
$14.49
835
Tie-Rap 180 mm
414115200
$0.11
850
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
$78.49
860
Tie Wrap 94 mm | 4X4
293750001
$1.03
1000
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1010
Tridon Gear Clamp
293650051
$4.19
1015
Tridon Gear Clamp
293650051
$4.19
1020
Tubing 25 MM 1000MM Long
219704402
$15.99
1200
Was 276000001 Hose 12.5 mm
219704394
$51.99
1210
Tridon Gear Clamp
293650172
$3.09
1215
Tridon Gear Clamp
293650172
$3.09
1220
Was 515175319 Tubing 22 mm
219704423
$14.99
1270
Was 515175319 Tubing 22 mm
219704423
$14.99
4000
Tie Wrap 368 mm
293750008
$1.04
4020
Tie-Rap 180 mm
414115200
$0.11
