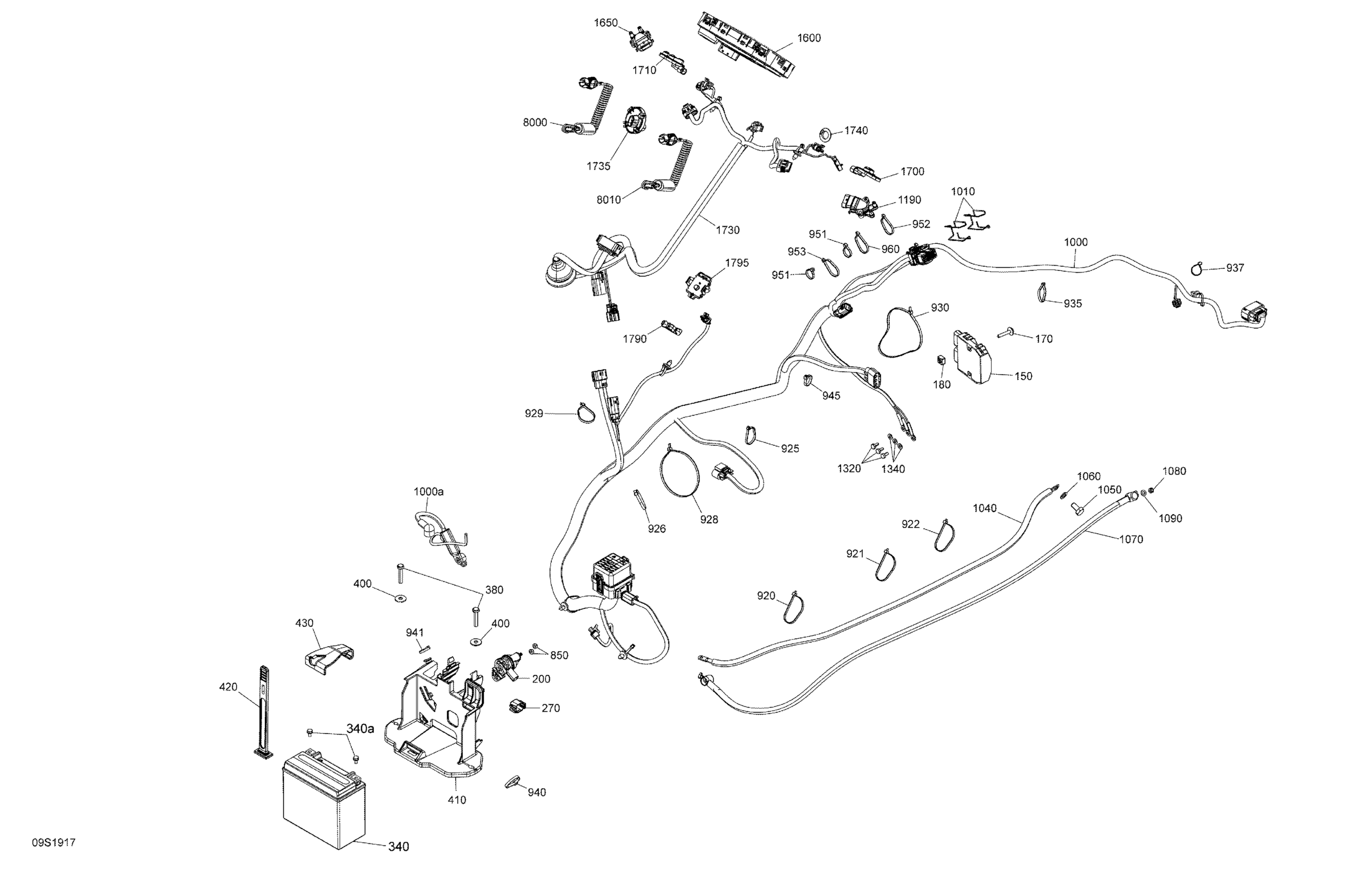

Sea-doo GTI 130 Rental, 2019 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

170

Hex Screw SEMS M6X35, SS

250000969

$2.00

180

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

200

Starter Relay

278003012

$40.27

270

Connector Plug

710004904

$8.30

340

Battery 12 Volt 18AH

296000449

$142.45

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$3.39

380

Hex. Screw M8 X 40

207184060

$2.12

400

Flat Washer 8 mm, Stainless

234082600

$2.27

410

Battery Support

278003671

$26.09

420

Strap

269502417

$16.39

430

Clip

278003521

$16.39

850

Elastic Stop Nut M6, Brass

232561200

$4.03

920

Tie-Rap 180 mm

414115200

$0.10

921

Tie-Rap 180 mm

414115200

$0.10

922

Tie-Rap 180 mm

414115200

$0.10

925

Tie-Rap 180 mm

414115200

$0.10

926

Tie Wrap 368 mm

293750008

$0.97

928

Tie Wrap 368 mm

293750008

$0.97

929

Tie Wrap 368 mm

293750008

$0.97

930

Tie Wrap 368 mm

293750008

$0.97

935

Tie Wrap 368 mm

293750008

$0.97

937

Tie-Rap 180 mm

414115200

$0.10

940

Tie-Rap 180 mm

414115200

$0.10

941

Tie-Rap 180 mm

414115200

$0.10

945

Tie-Rap 180 mm

414115200

$0.10

951

Tie-Rap 180 mm

414115200

$0.10

952

Tie-Rap 180 mm

414115200

$0.10

953

Tie-Rap 180 mm

414115200

$0.10

960

Tie-Rap 180 mm

414115200

$0.10

1000>1000a

Wiring Harness Main

278003704

$699.22

1000a

Female Housing, 3 Circuits

710000879

$24.60

1000

Main Wiring Harness

278003803

$522.36

1010

Connector Lock (metal clip)

278003794

$8.91

1010

Connector Lock (metal clip)

278003794

$8.91

1040

Battery Ground Cable

278003270

$38.03

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

1060

Flat Washer 10 mm, Stainless

234000600

$1.22

1070

Cable-Starter

278003370

$35.79

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1600

LCD Gauge

278003580

$876.84

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch LH Sport/Eco

278002768

$76.84

1710

Switch RH Mode/Set

278002602

$115.64

1730

Steering Harness Ass'y

278003559

$311.16

1730

Steering Harness Ass'y | Without IBR

278003560

$288.03

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

1740

Safety Nut (DESS Switch)

278002963

$3.12

1790

O.T.A.S Actuator

278003537

$38.03

1795

O.T.A.S. Sensor

278003008

$99.22

8000

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13
