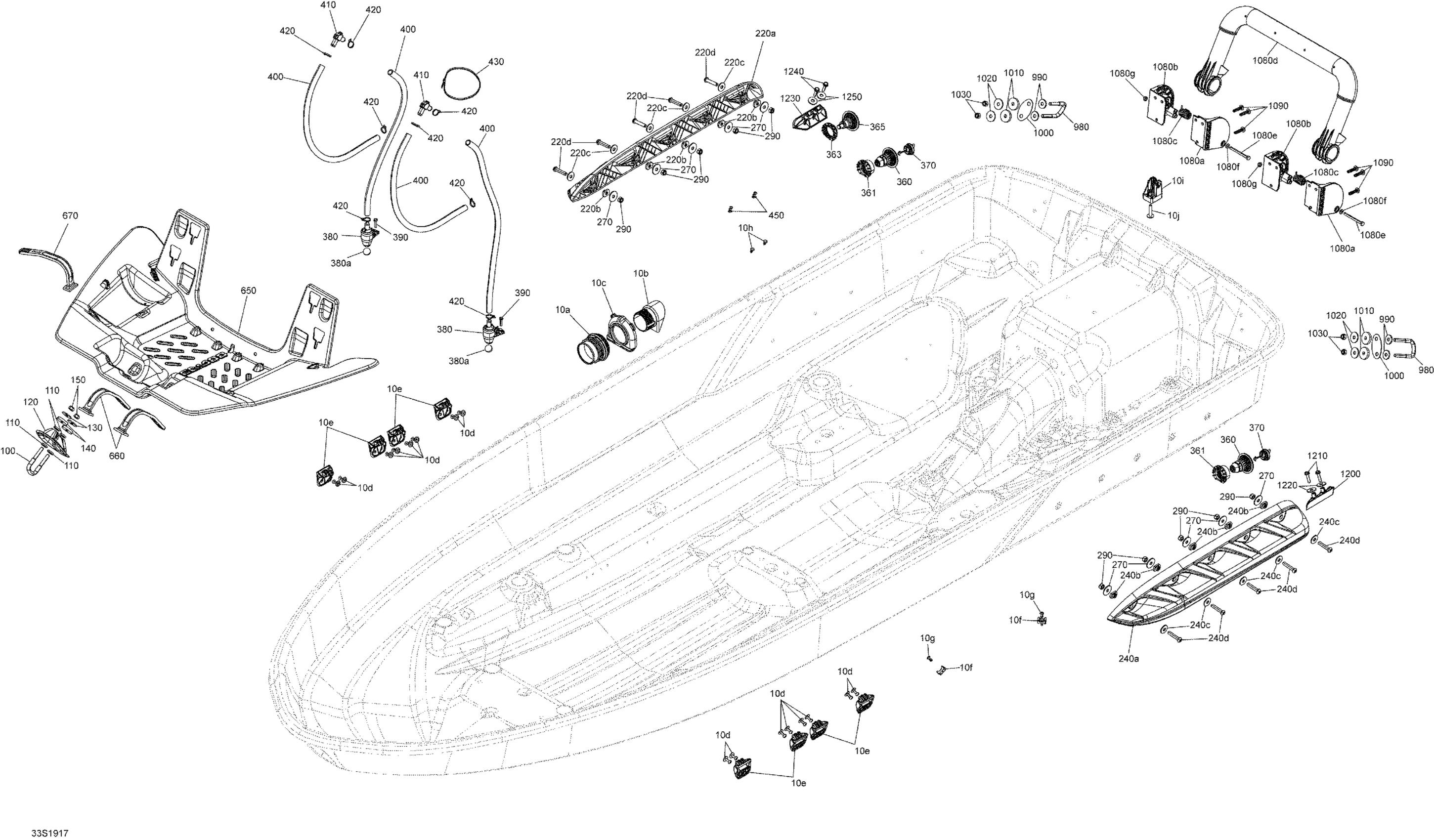

Sea-doo GTI 130 Rental, 2019 Hull Rental Diagram

#

Description
Price

10a

Hull Insert

293450340

$27.99

10b

Hull Insert

293450335

$22.99

10c

Hull Insert

293450356

$10.99

10d

Pop Rivet 3/16"

293150123

$4.29

10e

Strap Retaining

270000933

$6.99

10f

Tie Rap Mount

293750026

$3.09

10g

Avdel Rivet 3/16"

293150037

$0.56

10h

Dart

293730062

$2.09

10i

Strap Anchor

270000988

$10.28

10j

Hexagonal Cap Screw M6 X35

250000399

$4.44

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

120

Black Shell

292001837

$20.99

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Rubber Washer

293830037

$2.68

150

Hex. Elastic Nut M8 Brass

232581200

$2.22

220a

RH Sponson

292001878

$93.99

220b

Spacer Sponson

292001349

$10.99

220c

Flat Washer 8 mm, Stainless

234082600

$2.43

220d

Torx Screw M8 X 40, Stainless

250000452

$3.91

240a

LH Sponson

292001877

$93.99

240b

Spacer Sponson

292001349

$10.99

240c

Flat Washer 8 mm, Stainless

234082600

$2.43

240d

Torx Screw M8 X 40, Stainless

250000452

$3.91

270

Flat Washer 8 mm, Stainless

250200175

$3.06

290

Hex. Elastic Nut M8 Brass

232581200

$2.22

360

Drain Ass'y

292001580

$16.49

361

Bushing

292001371

$17.49

363

Plastic Nut

292001825

$9.79

365

Drain Neck Ass'y

292001317

$27.99

370

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

380>380a

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

380a

Floating Ball

293830080

$7.19

390

Hex. Screw 10-14 X 7/8”

211000023

$3.59

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

410

Fitting Elbow 90°

293710152

$18.49

420

Tie Wrap 94 mm | 4X4

293750001

$1.03

430

Tie Wrap 368 mm

293750008

$1.04

450

Avdel Rivet 3/16"

293150037

$0.56

650

Trunk Shield

292001868

$43.99

660

Strap

269502417

$17.69

670

Strap

269502417

$17.69

980

U-Clamp

292000933

$59.49

990

Flat Washer

279000336

$11.57

1000

Black, Finition Plate

291001386

$10.99

1010

Rubber Washer

293830037

$2.68

1020

Flat Washer 8 mm, Stainless

250200175

$3.06

1030

Hex. Elastic Nut M8 Brass

232581200

$2.22

1080a

A Section Support

292001509

$59.99

1080b

B Section Support

292001510

$59.99

1080c

Spring

292001259

$27.99

1080d

Overmolded Bar

292001204

$159.99

1080e

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

1080f

Stainless Flat Washer M6

234061600

$0.33

1080g

Hex. Elastic Stop Nut M6

232561600

$1.15

1090

Screw Torx M6.81 X 30

250001007

$2.54

1200

LH Trim Tab

292001811

$18.49

1210

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

1220

Flat Washer 8 mm, Stainless

234082600

$2.43

1230

RH Trim Tab

292001812

$18.49

1240

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

1250

Flat Washer 8 mm, Stainless

234082600

$2.43
