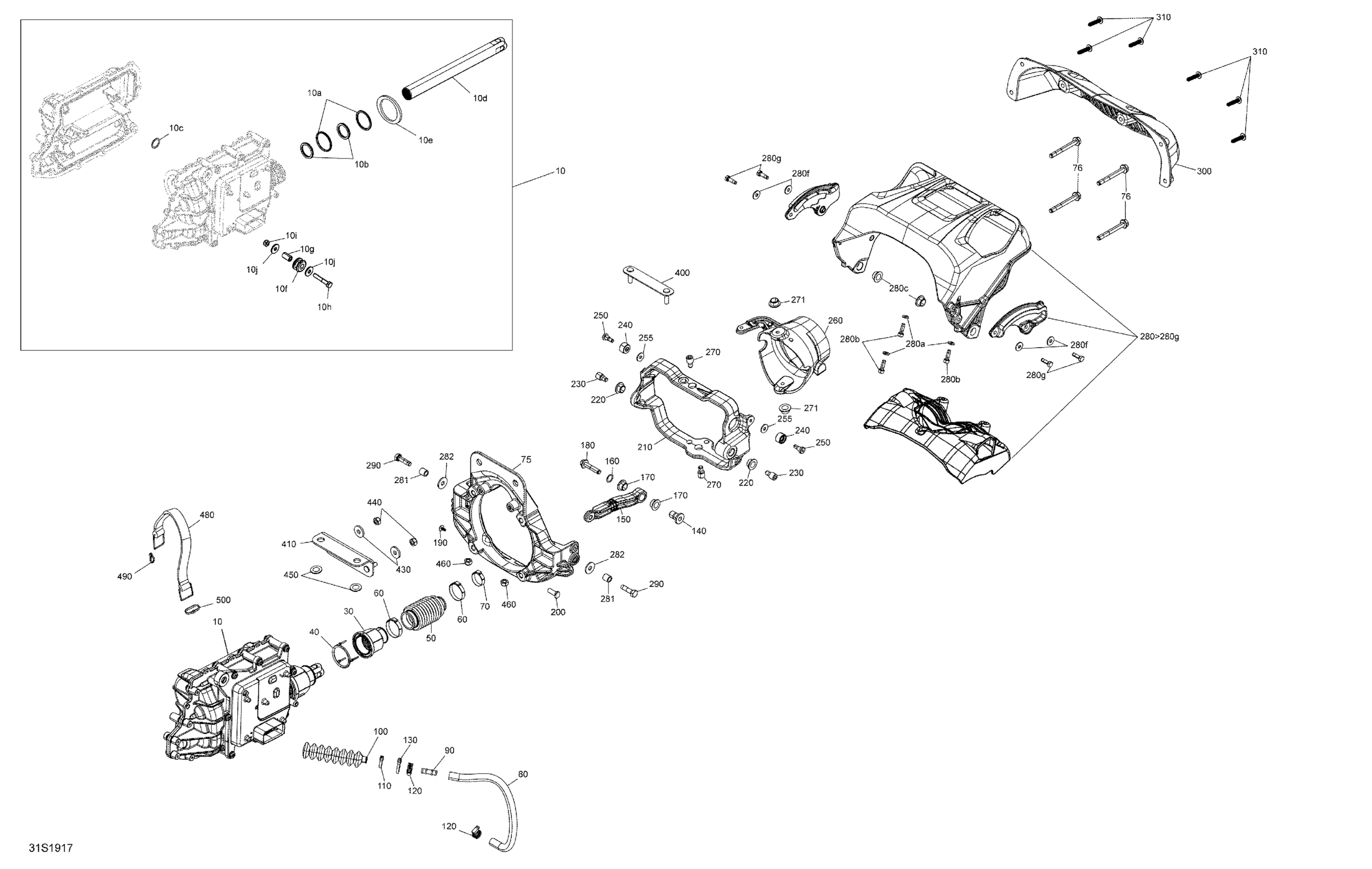

Sea-doo GTI 130 Rental, 2019 Reverse (If Equipped) Diagram

#

Description
Price

10>10j

Actuator | Includes 10 to 10j

278003606

$829.99

10a

O-Ring

279000108

$6.03

10b

O-Ring

293300107

$1.01

10c

O-Ring

293300187

$4.89

10d

Output Shaft

278003027

$54.99

10e

Gasket

268000208

$15.37

10f

Grommet

293720104

$5.29

10g

Spacer

271001020

$12.99

10h

Hex. Screw M6 X 35

207063560

$2.22

10i

Elastic Stop Nut M6, Brass

232561200

$4.23

10j

Flat Washer M6, Stainless

234062600

$0.77

30

IBR Nut

268000308

$12.59

40

Rubber Gasket

277001977

$2.61

50

Boot

268000186

$27.49

60

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

70

Crimp Clamp

293650099

$4.29

75

Bracket

268000266

$91.99

76

Screw-Hex.Flange DIN.6921 S.Grip

250000835

$3.91

80

Was 509000407 Hose 8 mm

219704420

$50.99

90

Fitting-Straig

293710157

$8.29

100

Inner Boot This part replaces 268000345.

268000211

$12.06

110

Tie Wrap 142 mm

293750002

$1.25

120

Tridon Gear Clamp

293650171

$3.09

130

Tie Wrap 142 mm

293750002

$1.25

140

Bushing

268000269

$16.87

150

Linkage Arm

268000256

$22.49

160

O-Ring

293300187

$4.89

170

Venturi Bushing

293900007

$5.45

180

Hex. Flange Screw Din.6921 S.Grip

250000963

$3.91

190

Hexalob Screw M4 X 10

250000565

$2.11

200

Shoulder Pin

268000309

$19.99

210

Trimming Ring

268000247

$95.99

220

Venturi Bushing

293900007

$5.45

230

Screw Socket S.Grip

250000837

$9.09

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

250

Screw-Socket Shoulder M8X8

250000775

$8.29

255

Flat Washer M6, Stainless

234062600

$0.77

260

Black Jet Pump Nozzle

267000732

$99.99

270

Screw Socket S.Grip

250000837

$9.09

271

Venturi Bushing

293900007

$5.45

280>280g

Gate Reverse Ass'y | Includes 280 TO 280i

268000296

$129.99

280a

Stainless Flat Washer M6

234061600

$0.33

280b

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

280c

Venturi Bushing

293900007

$5.45

280d

Not Available As Spare Part - Friction Washer

Unavailable

280e

Not Available As Spare Part - Friction Washer

Unavailable

280f

Flat Washer M6, Stainless

234062600

$0.77

280g

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

281

Spacer

271001039

$16.49

282

Flat Washer 8 mm, Stainless

234082600

$2.43

290

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

300

Guard

268000162

$29.99

310

Screw Torx M6.81 X 30

250001007

$2.54

400

Ass'y Bracket

268000271

$11.49

410

Reverse Bracket

268000304

$18.99

420

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

430

Flat Washer

279000336

$11.57

440

Hex. Elastic Nut M8 Brass

232581200

$2.22

450

Flat Washer

279000336

$11.57

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

480

Fuel Tank Strap

293850095

$19.99

490

Tie Wrap 94 mm | 4X4

293750001

$1.03

500

Tie Wrap 142 mm

293750002

$1.25
