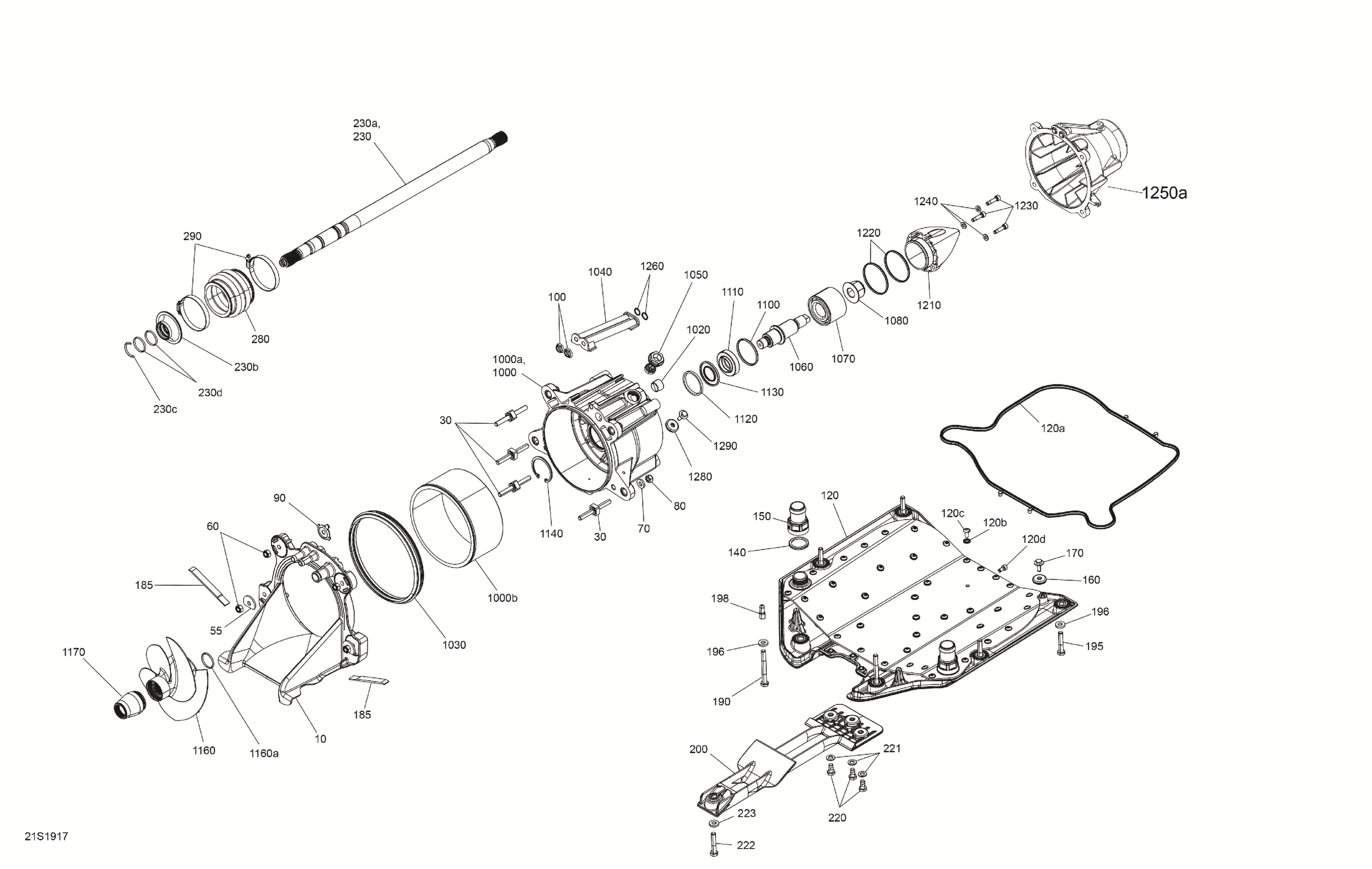

Sea-doo 003 - GTI 130 Rental, 2019 05- Propulsion Diagram
#
10
Pump Support
271001964
$41.49
30
Square Stud
250300046
$14.82
50
Flat Washer
279000336
$11.57
55
Flat Washer
279000326
$4.19
60
Hex. Elastic Nut M8 Brass
232581200
$2.22
70
Flat Washer M8.5 x 18
293050001
$3.07
80
Hex. Elastic Nut M8 Brass
232581200
$2.22
90
Reducer, Green This part replaces 271001586.
271002029
$16.49
100
Watertight Seal
293250084
$7.49
120
Riding Plate Ass'y | Includes 120 TO 120f
271001860
$227.49
120a
Seal
293250235
$10.07
120b
Sealing Washer
250200114
$4.44
120c
Torx Screw M6 X 14
250000384
$7.51
120d
Socket Drain Plug M6 X 12
250500005
$16.49
140
O-Ring
293300121
$8.32
150
Straight Fitting
293710166
$8.79
160
Anode Zinc
271001920
$15.99
170
Hex Screw M6 X 20
250000965
$2.11
185
Gasket, Neoprene 2000Mm Long
219704476
$15.36
190
Hexagonal Head Cap Screw M8 X 75
250000812
$2.85
195
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
196
Flat Washer M8.5 x 18
293050001
$3.07
198
Cap Plug
293000105
$4.39
200
Pump Grate
271001969
$54.99
220
Hex. Screw M8 X 16, Scotch Grip
207381660
$1.01
221
Stainless, Flat Washer 8 mm
234081600
$0.55
222
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
223
Flat Washer M8.5 x 18
293050001
$3.07
224
Flat Washer
279000336
$11.57
225
Hex. Elastic Nut M8 Brass
232581200
$2.22
230
Not Available As Spare Parts
XXX
Unavailable
230a
Drive Shaft
271001974
$434.49
230b
Carbon Ring Kit | Includes 280b to 280b4
295501204
$82.49
230c
C-Clip
271001577
$3.27
230d
O-Ring
293300107
$1.01
240
Drive Shaft Plug
272000173
$8.68
280
Bellow This part replaces 271001422.
271001933
$23.49
290
Not Available As Spare Parts
XXX
Unavailable
1000
Not Available As Spare Parts
XXX
Unavailable
1000a
Impeller Housing
271002018
$294.99
1000b
Wear Ring
267001036
$84.99
1020
Black, Plastic Plug
267000469
$7.59
1030
Neoprene Seal
293200087
$12.63
1040
Water Outlet
271000785
$3.80
1050
Plug | Includes 370z to 370z1
267000282
$19.49
1060
Impeller Shaft
267000388
$116.49
1070
Angled Bearing This part replaces 267000030.
267000900
$80.99
1080
Elastic Flange Nut M20
250100104
$12.66
1100
O-Ring
293300090
$7.20
1110
Not Available As Spare Parts
XXX
Unavailable
1120
Not Available As Spare Parts
XXX
Unavailable
1130
Oil Seal
293200089
$19.99
1140
Circlip
293370038
$8.79
1160
Stainless Impeller Ass'y | Includes 1160 TO 1160a
267001033
$391.99
1160a
O-Ring
293300044
$1.05
1170
Guard
271002228
$12.99
1210
Impeller Cover
267000428
$18.49
1220
O-Ring
293300086
$3.59
1230
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
1240
Stainless Flat Washer M6
234061600
$0.33
1250a
Venturi | With IBR
267000864
$211.99
1250b
Siphon Tube
271001885
$2.49
1260
O-Ring
293300013
$8.18
1270
Hex. Screw M8 X 30, Scotch Grip
250000526
$0.77
1280
Anode Zinc
271001920
$15.99
1290
Hex Screw M6 X 20
250000965
$2.11
1300
Stainless, Flat Washer 8 mm
234081600
$0.55
1310
Steer Nozzle, Black
267000745
$99.99
1320
Venturi Bushing
293900001
$7.62
1330
Hex. Screw M8 X 30, Scotch Grip
250000526
$0.77
1340
Flat Washer M8.5 x 18
293050001
$3.07
1350
Sleeve
271001816
$14.99
