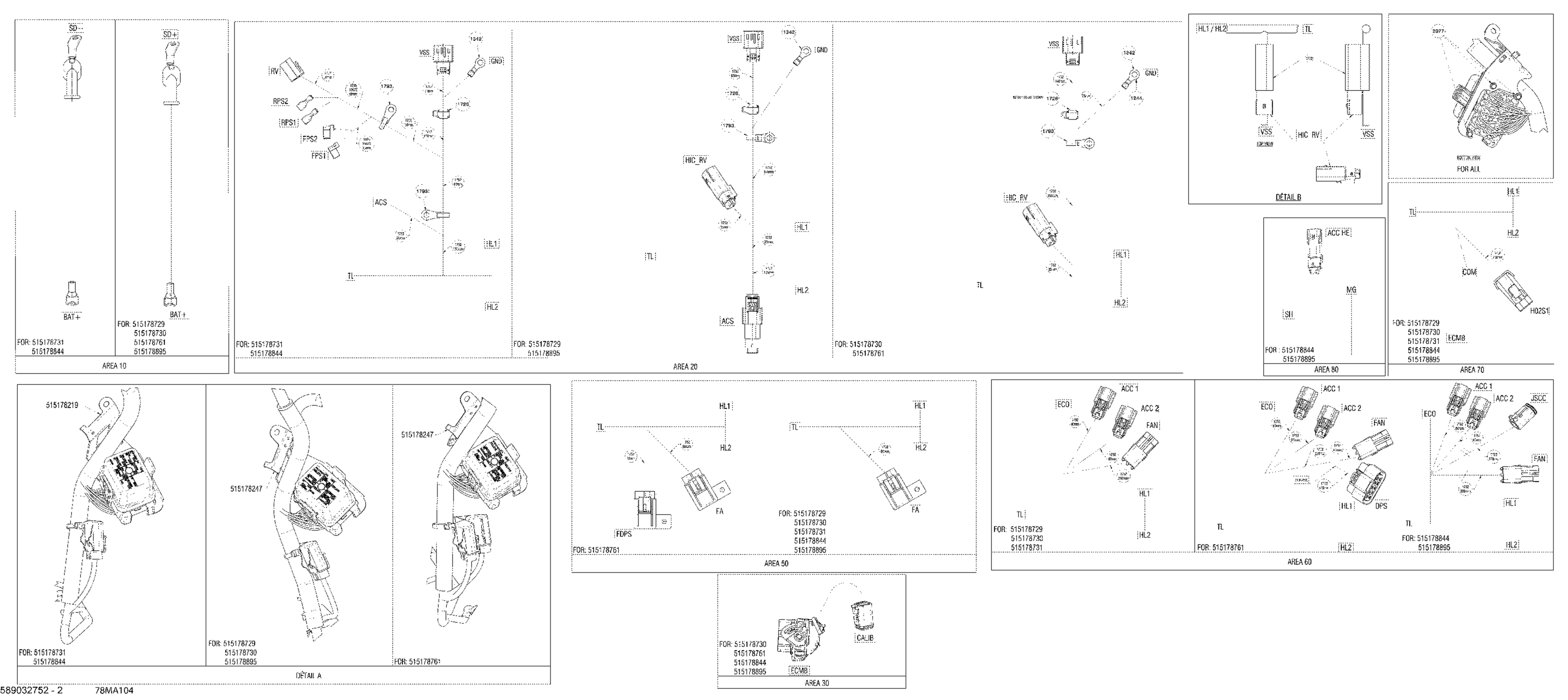

Ski-Doo GRAND TOURING 900 ACE - 2021 Electric - Main Harness - 515178731 - LIMITED - Part 2 Diagram

#

Description
Price

3000

Chassis WIring Harness

515178731

$459.99

ACC1

2 Circuits Female Housing

278002853

$17.99

ACC1

Female Terminal

515178014

$2.39

ACC2

2 Circuits Female Housing

278002853

$17.99

ACC2

Female Terminal

515178014

$2.39

ACS

Coil Connector

515178202

$13.24

ACS

Female Terminal

515178018

$1.19

ACS

Female Terminal

515178014

$2.39

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Molex Housing, 48 Circuits

710001967

$142.99

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001727

$3.19

ECO

4 Circuits Female Housing

515178175

$12.99

ECO

Female Terminal

515178302

$5.39

F1

Little Fuse, 5 Amperes

710000742

$8.79

F10

Little Fuse, 30 Amperes

710000747

$8.49

F2

Little Fuse, 20 Amperes

710000746

$8.49

F3

Little Fuse, 10 Amperes

710000744

$8.79

F4

Little Fuse, 10 Amperes

710000744

$8.79

F5

Little Fuse, 10 Amperes

710000744

$8.79

F6

Little Fuse, 15 Ampere

710000745

$8.49

F7

Little Fuse, 15 Ampere

710000745

$8.49

F8

Little Fuse, 15 Ampere

710000745

$8.49

F9

Little Fuse, 15 Ampere

710000745

$8.49

FA

Fuse

710001613

$8.79

FA

Fuse Holder

278001325

$8.79

FA

Female Terminal

710000357

$7.69

FAN

Female Housing, 2 Circuits

278000217

$9.59

FAN

Wire Seal

278000218

$4.39

FAN

Male Terminal

409004300

$5.61

FB1

Case Ass'y with seal, 24 positions

278002824

$35.99

FB1

Seal Plug

278002880

$7.86

FB1

Wire Seal

278000218

$4.39

FB1

Female Terminal

710000890

$4.55

FB1

Female Terminal

710000918

$7.69

FB1C

Fuse Box Cover

515178559

$13.62

FB1C

Little Fuse, 10 Amperes

710000744

$8.79

FB1C

Little Fuse, 15 Ampere

710000745

$8.49

FB1C

Little Fuse, 20 Amperes

710000746

$8.49

FB2

Housing

515178311

$35.99

FB2

Female Terminal

710006126

$4.23

FB2

Female Terminal

710000274

$9.59

FB2C

Cover

515178310

$14.74

FP

Female Housing

515178474

$34.99

FP

Female Terminal

515178018

$1.19

FPS1

Female Terminal

710004858

$4.09

FPS2

Female Terminal

710004858

$4.09

GND

Open Barrel Terminal

278001392

$4.79

HIC

Female Housing, 4 circuits

278003535

$25.99

HIC

Female Terminal

515178018

$1.19

HL1

Female Housing

515178006

$15.28

HL1

Seal Wire

710001332

$3.28

HL1

Terminal

710001228

$3.28

HL2

Female Housing

515178006

$15.28

HL2

Seal Wire

710001332

$3.28

HL2

Terminal

710001228

$3.28

HO2S1

Clip

710000992

$4.29

HO2S1

Housing

710002466

$3.19

HO2S1

Lock

515178661

$4.44

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HO2S1

Terminal

710000736

$5.50

MG

Female Housing 20 Circuits

278002858

$22.49

MG

Female Terminal

515178018

$1.19

MG

Female Terminal

515178014

$2.39

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Cap

710000882

$11.49

REG

Seal

710000881

$17.99

REG

Female Terminal

710000877

$9.12

RFID

Housing

710001161

$11.12

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RPS1

Female Terminal

710000082

$7.69

RPS2

Female Terminal

710000082

$7.69

RV

Female Terminal Housing

515176550

$7.86

RV

Female Terminal

515175282

$7.86

RY1

Relay

715900824

$21.99

RY2

Relay, 30 AMP

515176774

$21.99

RY3

Relay

715900824

$21.99

RY4

Relay, 30 AMP

515176774

$21.99

RY5

Relay

715900824

$21.99

RY6

Relay

715900824

$21.99

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SD+

Terminal

515177214

$7.86

SH

12 Circuits Male Housing

515178015

$13.16

SH

Male Terminal

515178013

$3.19

STR 4P

4 Circuits Male Housing

515178176

$12.16

STR 4P

Male Terminal

515178013

$3.19

STR 6P

Male Housing, 6 Circuits

278002906

$14.24

STR 6P

Male Terminal

515178013

$3.19

TAS

Clip

710000992

$4.29

TAS

Housing

710001231

$13.99

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

TL

Female Terminal

515178018

$1.19

TL

Female Terminal

515178014

$2.39

VSS

Female Terminal

515178018

$1.19
