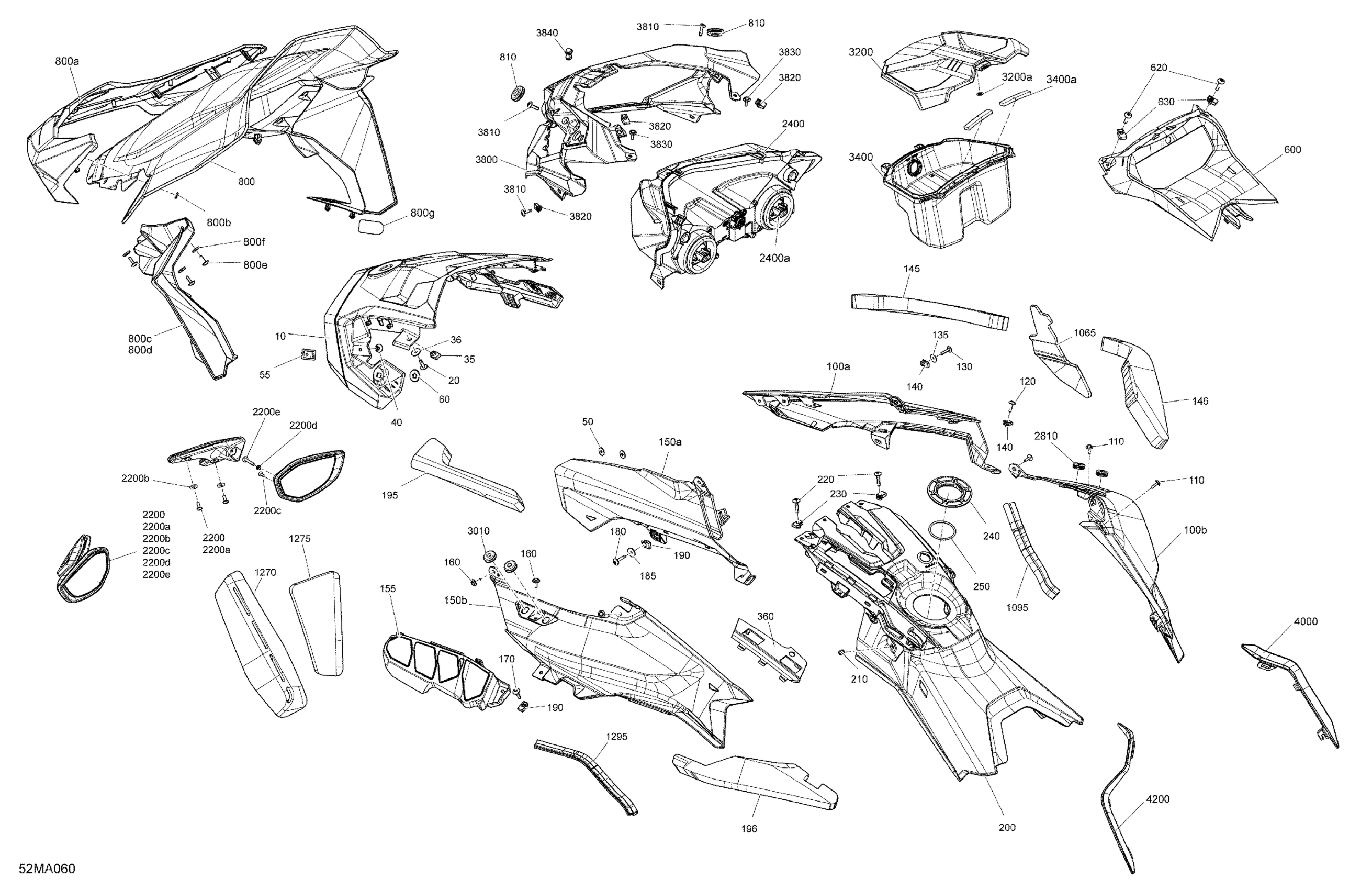

Ski-Doo GRAND TOURING 900 ACE - 2021 Body - Hood - LIMITED Diagram

#

Description
Price

10

Deep Black, Center Hood

517306288

$214.99

20

Torx Screw M5 X 20

250000528

$2.11

35

Panel Nut M5 X 0.8

250000958

$4.23

36

Washer

250200166

$2.11

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

50

Washer

517124300

$0.19

55

Rivet Plate

517305109

$4.99

60

Push Nut

508000853

$2.09

100a

Deep Black, RH Front Hood

517307307

$199.99

100b

Deep Black, RH Rear Hood

517307308

$214.99

100a

Silver, RH Front Hood | Model Hyper Silver/Black

517306854

$154.99

100b

Silver, RH Rear Hood | Model Hyper Silver/Black

517306855

$209.99

110

Screw M4 X 16

250000725

$3.49

120

Torx Screw M5 X 20

250000528

$2.11

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

250200166

$2.11

140

Panel Nut M5 X 0.8

250000958

$4.23

145

RH Front Hood Foam

517305763

$13.49

146

RH Hood Foam

517306001

$13.49

150a

LH Front Hood

517307310

$199.99

150b

LH Rear Hood

517307311

$214.99

150a

Silver, LH Front Hood | Model Hyper Silver/Black

517306856

$214.99

150b

Silver, LH Rear Hood | Model Hyper Silver/Black

517306857

$209.99

155

LH Hood Trim

517306690

$31.99

160

Screw M4 X 16

250000725

$3.49

170

Torx Screw M5 X 20

250000528

$2.11

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

250200166

$2.11

190

Panel Nut M5 X 0.8

250000958

$4.23

195

LH Front Hood Foam

517305764

$14.99

196

LH Hood Foam

517306002

$13.49

200

Rear Console

517307684

$174.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

360

LH Front Console

517306583

$31.99

600

Gauge Support

517307400

$38.99

620

Torx Screw M5 X 26

250000587

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

800

Windshield Ass'y 585MM | Includes 800 to 800j

517307327

$223.49

800a

Deep Black, Windshield Support

517306183

$41.99

800b

Push Nut

732610072

$2.19

800c

RH Air Deflector

517306184

$32.99

800d

LH Air Deflector

517306185

$32.99

800e

Screw M4 X 16

250000889

$3.09

800f

Rubber Washer 5 mm

250200024

$2.19

800g

Decal

516009227

Unavailable

810

Grommet

517303756

$4.09

1065

Foam

517306495

$6.69

1095

Neoprene Seal 3000Mm Long

219704371

$51.99

1270

Foam

517306465

$14.49

1275

LH Rear Panel Foam

517306496

$6.99

1295

Neoprene Seal 3000Mm Long

219704371

$51.99

2200

Rear-View Mirror Kit | Includes 2200 to 2200u

517309198

$116.49

2200a

Torx Screw M5 X 14

250000742

$1.47

2200b

Rubber Washer 5 mm

250200024

$2.19

2200c

Torx Truss Screw K40 X 12

250000577

$2.11

2200d

Elastic Stop Nut M5

232551414

$0.87

2200e

Torx Screw Nylon

250000732

$2.11

2400

Headlamp | Includes 2400 to 2400a

517305752

$449.99

2400a

Bulb

415130081

$41.49

2810

Grommet

517307161

$2.79

3010

Grommet

517307161

$2.79

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200a

Push Nut

732610072

$2.19

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400a

Seal Joint

517305157

$2.39

3800

Headlamp Fairing

517306301

$73.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3830

Screw M4 X 16

250000725

$3.49

3840

Tuflok Plastic Rivet

293150230

$1.47

4000

RH Panel Deflector

517306356

$9.99

4200

LH Panel Deflector

517306357

$9.99
