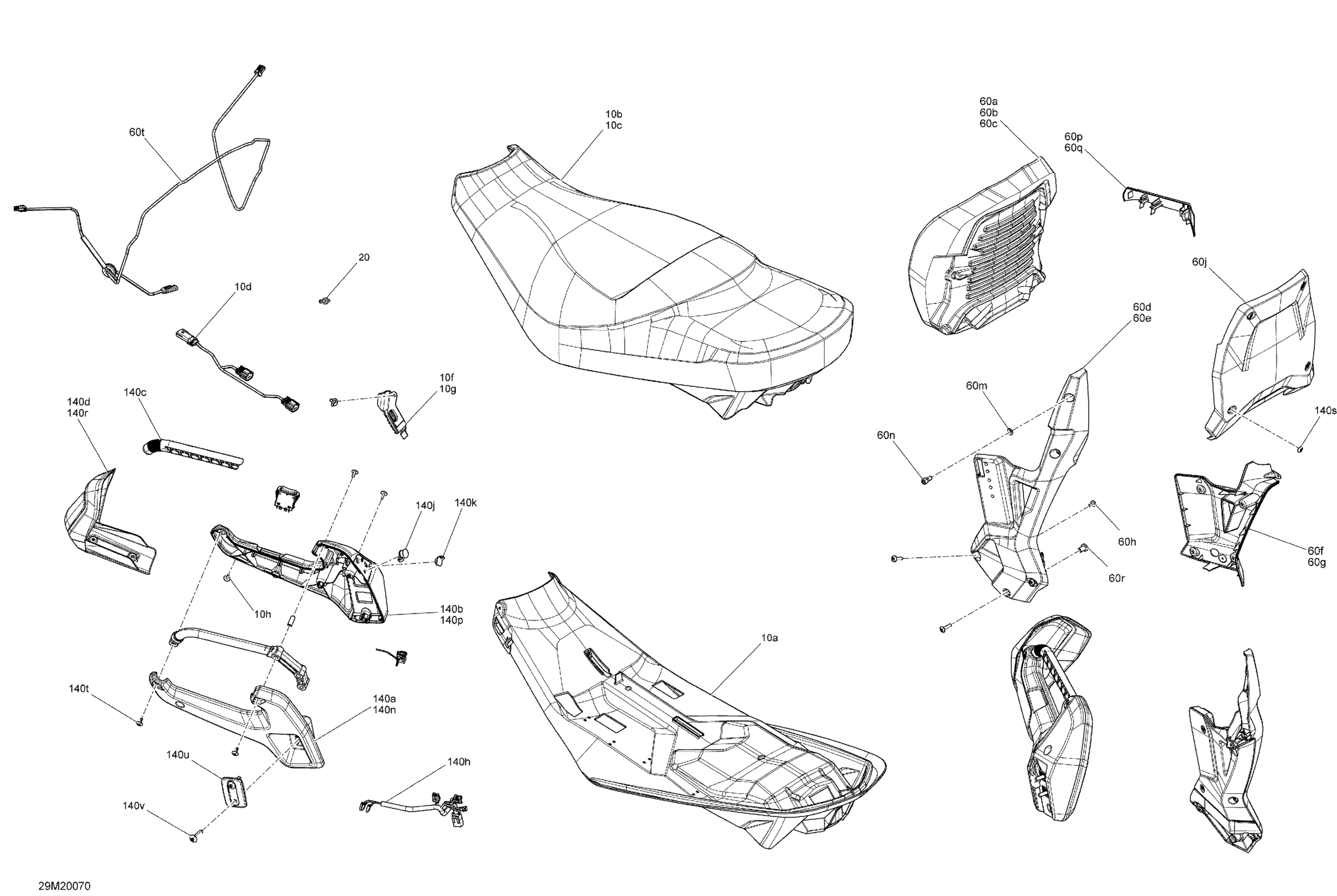

Ski-Doo GRAND TOURING 900 ACE - 2020 Seat - Main Section - LTD Diagram

#

Description
Price

10a

1+1 Seat Base

510006556

$93.99

10b

Seat Foam

510006336

$214.99

10c

Seat Cover

510006409

$493.99

10d

Seat Wiring Harness

515178581

$26.99

10f

LH Seat Latch

510006530

$7.19

10g

RH Seat Latch

510006531

$7.19

10h

Pop Rivet 3/16"

293150222

$1.29

20

Pin

510006514

$6.69

60a

Backrest Foam

510006363

$219.99

60b

Backrest Cover

510006677

$236.49

60c

Backrest Support

510006777

$48.99

60d

LH Arm

510006479

$88.99

60e

RH Arm

510006480

$88.99

60f

LH Trim

510006706

$20.99

60g

RH Trim

510006705

$20.99

60h

Torx Truss M6X14

250000789

$5.39

60j

Backrest Trim

510006366

$81.99

60m

Flat Washer M8, Stainless

234080600

$1.48

60n

Screw-Socket HD.DIN.912

205081654

$1.90

60p

LH Base Cover

510006169

$3.91

60q

RH Base Cover

510006170

$3.91

60r

Threaded Insert

511000822

$2.09

60t

Seat Wiring Harness

515178490

$51.99

140a

LH Ext. Passenger Hand Hold

510006492

$67.99

140b

LH Int. Passenger Hand Hold

510006493

$67.99

140c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$102.99

140d

LH Passenger Handle Deflector

510006495

$28.99

140h

Accessories Wiring Harness

515178465

$69.99

140j

Cap

572103300

$10.49

140k

Cap

510004950

$15.49

140n

RH Ext. Passenger Hand Hold

510006486

$67.99

140p

RH Int. Passenger Hand Hold

510006487

$67.99

140r

RH Passenger Handle Deflector

510006489

$28.99

140s

Screw M4 X 16

250000889

$3.09

140t

Torx-Truss M/S M5 X 14

250000941

$2.11

140u

Passenger Handle Trim

510006602

$13.99

140v

Torx Truss M/S M8 x 35

250000753

$1.15

500

Flat Washer

224061201

$1.37

510

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

520

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44
